Everything you love about the 9100 — and then some. The Wayne Dalton 9605 upgrades the Classic Steel line with a steel backer panel for added rigidity and protection, a higher R-10 insulation rating, and full access to TruChoice® custom colors — over 6,000 factory color options so your door can match your home perfectly. It's the door for homeowners who want maximum performance, maximum curb appeal, and the confidence of a Lifetime Limited Warranty.
| Construction | |
| Model Name | Wayne Dalton Classic Steel Model 9605 |
| Construction | Three-layer: 24-gauge galvanized steel face / polyurethane foamed-in-place insulation / steel backer panel |
| Steel Face | 24-gauge hot-dipped galvanized high-tensile embossed steel panels |
| Backer | Steel backer panel — upgraded from ToughGard® composite on the 9100, adding rigidity and dent resistance |
| Insulation | Polyurethane foamed-in-place — bonds permanently to both steel skins, thermally superior to polystyrene |
| R-Value | R-10 (8' tall doors) · R-9 (7' tall doors) — calculated per DASMA TDS-163 |
| U-Factor | 0.26 — independently tested per ANSI/DASMA 105 |
| Pinch Resistance | Pinch-resistant panel joints — deflects fingers away from section joints |
| Panel Designs | |
| Available Styles | Short Panel · Long Panel · Flush Panel · Vertical Short Panel · Vertical Long Panel (5 designs) |
| Section Configuration | Four-panel (8'×7') · Five-panel (8'×8') — custom sizes available |
| Panel Illustrations |

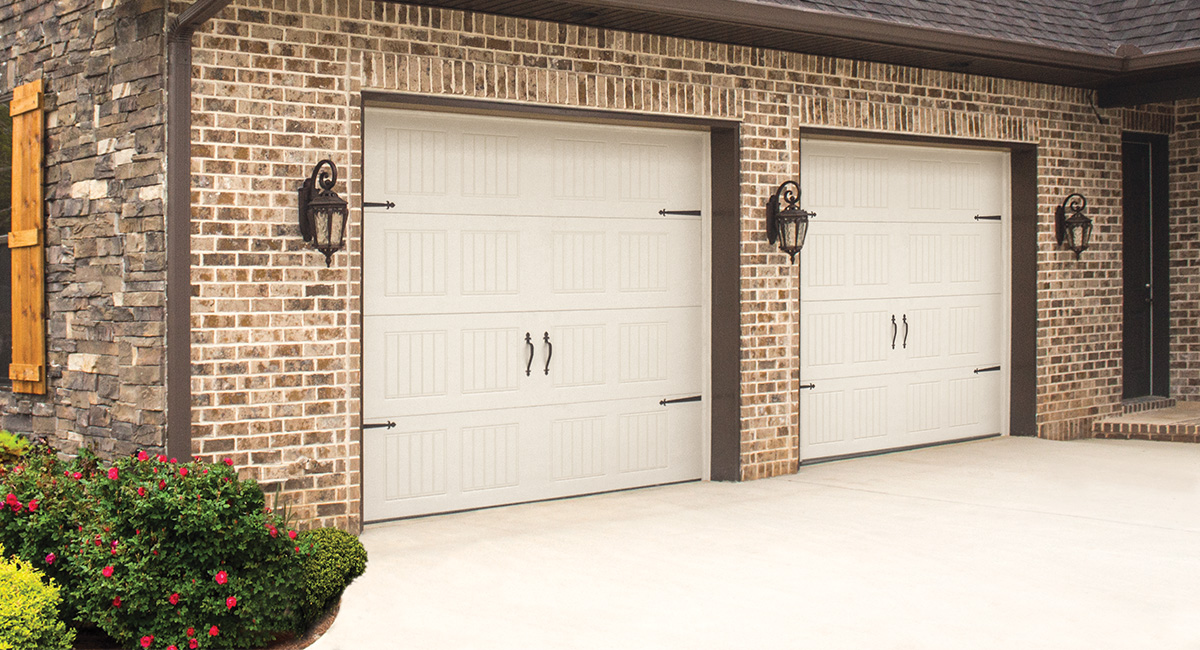

Short Panel
Long Panel
Flush Panel

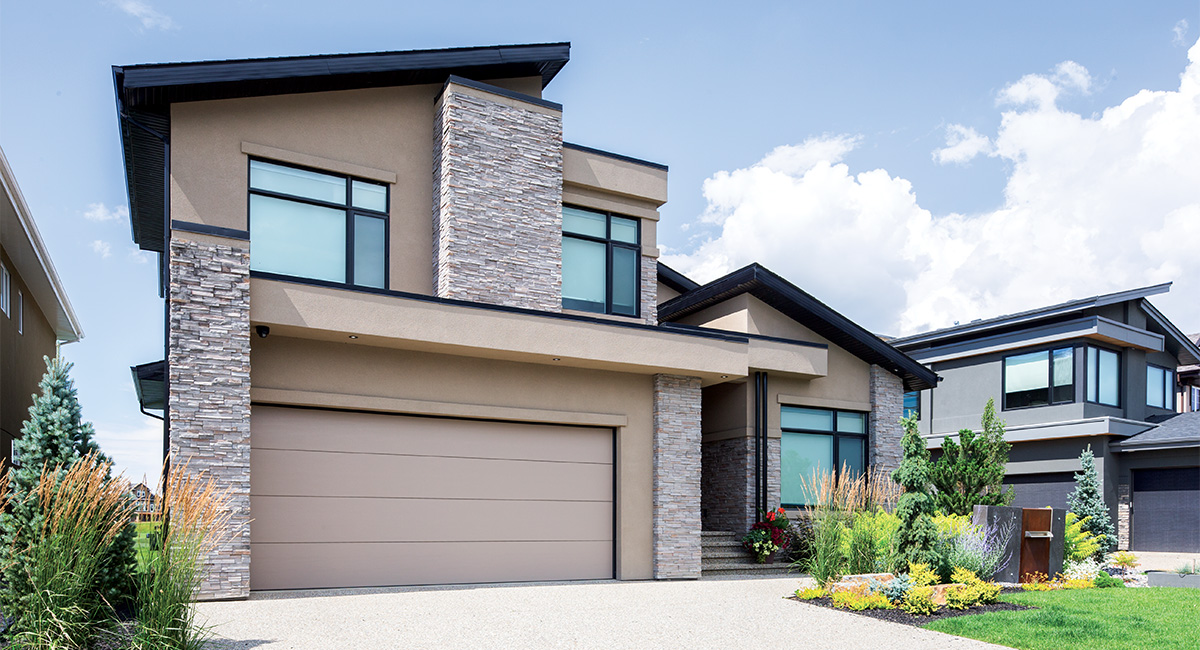

Vert. Short

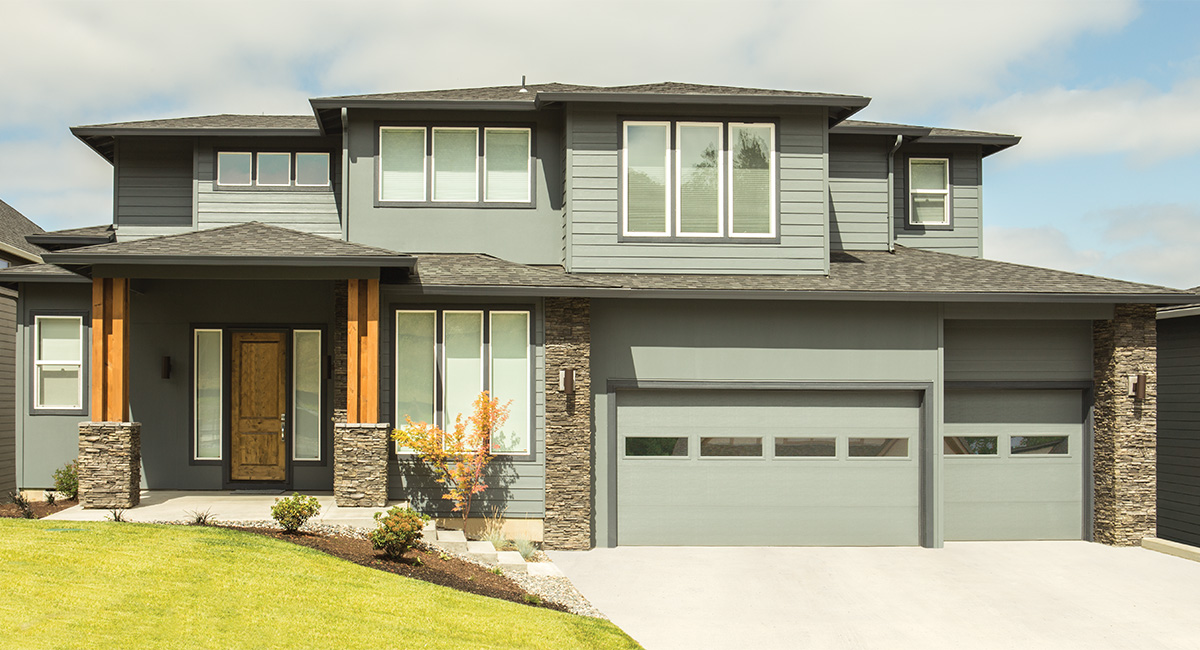

Vert. Long
|
| Available Sizes | |
| Standard Widths | 8' · 9' · 10' · 12' · 14' · 15' · 16' · 18' |
| Standard Heights | 7' · 8' |
| Custom Sizes | Non-standard sizes available — contact your DOORTEC specialist |
| Colors & Finishes | |
| Standard Colors (6) | Black† · Sandstone · Gray · White · Almond · Brown |
| Black Finish | Cool Chemistry® UV-resistant technology — resists heat absorption and fading |
| TruChoice® Custom Colors | 6,000+ factory color options — exclusive to Model 9605. Ask your DOORTEC specialist for the TruChoice® color fan deck. |
| Color Note | Digital swatches are representations only. Request physical samples at our DOORTEC Oklahoma City showroom (by appointment). |
| Window Options | |
| Short & Flush Panel | 31 options — see Window Options tab for full list |
| Vertical Short Panel | 29 options |
| Long & Vertical Long Panel | 22 options |
| Glass Options | Clear · Gray Tinted · Satin Etched Privacy · Obscure (Clear, Satin Etched, Obscure also in tempered) · Optional insulated glass |
| Safety & Performance | |
| Spring System | TorqueMaster® Plus Counterbalance — springs fully enclosed in powder-coated steel tube |
| Anti-Drop Technology | Built-in anti-drop safety protection standard |
| High Cycle Spring Option | 25,000-cycle spring upgrade available |
| Struts | Horizontal integral struts for rigidity and smooth quiet operation |
| Bottom Seal | Flexible bottom weather seal — blocks drafts and debris |
| Wind Load Option | WindSafe® structural reinforcements available |
| Decorative Hardware | |
| Hardware Kits (7 styles) | Arrow · Aspen · Barcelona · Bean · Conifer · Fleur-de-Lis · Spear |
| Hammered Knockers | Arrow · Aspen · Barcelona · Conifer · Fleur-de-Lis · Spear |
| Lift Handles | Arrow · Aspen · Barcelona · Conifer · Fleur-de-Lis · Spear |
| Material | Black powder-coated steel with hand-hammered artisan finish |
| Warranty | |
| Panel & Insulation | Lifetime Limited Warranty — against rust-through, cracking, splitting, and insulation degradation |
| DOORTEC Guarantee | All DOORTEC installations carry our workmanship guarantee — if it's not right, we'll return and fix it at no charge |
The 9605 Series Series is available in 6 signature paint colors. Online swatches are digital reproductions only — always request a physical color sample from your DOORTEC specialist before making your final selection.
† Black with Cool Chemistry®: Wayne Dalton's Cool Chemistry® technology protects the Black finish from heat absorption and UV degradation — keeping it looking bold and sharp for years without fading or chalking.
TruChoice® Custom Colors (6,000+) are available as a factory upgrade on the Model 9100 — not available on the standard 9100. Ask your DOORTEC specialist for the TruChoice® color fan deck at any of our Oklahoma City showroom.
Wayne Dalton offers an incredible selection of window panels — 31 options for Short and Flush panels, 29 for Vertical Short, and 22 for Long and Vertical Long panels. A selection of available styles is shown below, followed by the full availability table by panel type.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Choice of single or double arch is available for arched top double car windows. Not all styles shown may be available in your area — confirm with your DOORTEC specialist.
* Also available in tempered. Optional insulated glass available for improved thermal performance. Clear windows can be arranged horizontally or vertically on Short, Long, and Flush panel designs. Vertical placement is a special order. Bottom section windows require DSB 1/8", tempered, or ½" insulated glass. Window styles are not interchangeable between panel designs.
Inspired by the artisanry of traditional blacksmiths, Wayne Dalton's decorative hardware collections lend a distinctive, yet subtle touch of individuality to your Classic Steel garage door. Every piece is forged from black powder-coated steel with a hand-hammered look. Kits include 4 hinges and 2 pull handles; double car doors receive 2 complete kits.
Additional accent pieces — corner brackets and clavos — are available to match or complement each collection. Pull handle fit in center stile is dependent upon design and size of door. Hardware images shown are representative — visit any DOORTEC Oklahoma City showroom to see physical hardware samples.
Wayne Dalton warrants your 9605 Series Series door panels against cracking or splitting due to rust-through for as long as the original purchaser owns the home — no time limit, no exceptions.
The polyurethane foamed-in-place insulation is warranted against degradation and R-value loss for the full life of the door under original ownership.
All springs, cables, tracks, hinges, and hardware components are covered under Wayne Dalton's limited hardware warranty for 12 months from the installation date.
When you purchase a Wayne Dalton 9605 Series Series door from DOORTEC, you're getting more than a product — you're getting over 60 years of Oklahoma City installation expertise behind it. Every installation is performed by our factory-trained, background-checked, and fully licensed and insured technicians. We've completed over 140,000 garage door installations across the OKC metro area.
| What's Included With Every DOORTEC Installation | |
| In-Home Measurement | A DOORTEC technician visits your home to take precise measurements and confirm all door specifications, opening type, and hardware requirements before the order is placed |
| Old Door Removal | We remove and haul away your existing garage door and hardware at no additional charge |
| Full Hardware Install | All springs, cables, tracks, rollers, hinges, and weatherstripping installed to Wayne Dalton factory specifications |
| Opener Compatibility | We verify your existing opener is compatible with the new door, or recommend an upgrade if needed — and install it same-day if desired |
| Balance & Safety Test | Full door balance check, force adjustment, and auto-reverse safety test performed before completion — every time |
| Site Cleanup | We remove all packaging materials, old door components, and debris — your driveway will be cleaner when we leave than when we arrived |
| Customer Walkthrough | Your installer walks you through door operation, maintenance tips, and how to register your Wayne Dalton warranty before leaving |
| Typical Project Timeline | |
| Measurement to Order | We submit your order immediately following the measurement visit — typically same day |
| Manufacturing Lead Time | Standard orders: 1–3 weeks. Custom TruChoice® colors or non-standard sizes: 3–5 weeks. Ask your DOORTEC specialist for current lead times. |
| Installation Duration | Most single and double residential installations are completed in 3–5 hours |
| Service Area | Oklahoma City · Edmond · Norman · Moore · Yukon · Midwest City · Guthrie · El Reno · Tulsa and surrounding communities |
If you've been looking at the Wayne Dalton 9100 and wondering if there's a step up — there is. The 9605 builds on everything that makes the 9100 Oklahoma City's best-selling residential garage door, then adds a steel backer panel in place of the composite ToughGard® liner. The result is a noticeably more rigid door with better dent resistance, improved long-term durability, and a higher R-10 insulation rating on 8-foot doors.
The biggest differentiator is TruChoice® — Wayne Dalton's custom color painting program, exclusive to the 9605. With over 6,000 factory color options, you're no longer limited to six standard finishes. Whether your home is a modern contemporary with bold architectural color, a craftsman with a specific earth tone, or a traditional colonial that needs an exact trim match, the 9605 can be ordered in virtually any color you can imagine. DOORTEC's specialists can walk you through the TruChoice® color fan deck at any of our our Oklahoma City showroom.
Like the 9100, the 9605 features polyurethane foamed-in-place insulation with a U-factor of .26, the TorqueMaster® Plus Counterbalance System with springs safely enclosed in a steel tube, and pinch-resistant panel joints — a Wayne Dalton safety innovation. The 9605 comes with a Lifetime Limited Warranty on panels and insulation, and every DOORTEC installation is backed by our own workmanship guarantee.
The 9605 is available in all five of the same panel designs as the 9100 — Short Panel, Long Panel, Flush Panel, Vertical Short Panel, and Vertical Long Panel — so you get the full range of architectural styles from traditional raised panel to clean contemporary flush. Doors come in four-panel 8'×7' and five-panel 8'×8' configurations, with custom sizes available through your DOORTEC specialist.
Window options are identical to the 9100: 31 styles for Short and Flush panels, 29 for Vertical Short, and 22 for Long and Vertical Long panels — with glass choices in Clear, Gray Tinted, Satin Etched Privacy, and Obscure, plus optional insulated glass for improved thermal performance. Decorative hardware kits, hammered knockers, and lift handles in seven styles complete the look, all forged from black powder-coated steel with a hand-hammered finish.
DOORTEC has been the Wayne Dalton dealer of choice for Oklahoma City homeowners for over 60 years. We've completed more than 140,000 garage door installations across the OKC metro — including Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and Tulsa. If you're ready to see TruChoice® color samples in person or get a free quote on a 9605, stop into our showroom by appointment or submit a quote request and we'll be in touch within one business day.
