The 9100 DT SmartSide Trim marries the proven Wayne Dalton 9100 insulated steel door with LP SmartSide engineered wood cedar-grain trim to achieve the carriage-house look without a wood door's maintenance demands. LP SmartSide trim is 3/8-inch thick treated engineered wood — primed and ready for any exterior paint color — installed over the 9100 steel base with its R-9 polyurethane foamed-in-place insulation. DOORTEC offers 43 distinct DT trim layout designs, from clean barn-door lines to elaborate colonial patterns, giving OKC-area homeowners in Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and Tulsa a fully custom-looking carriage door at a fraction of the cost of real wood.

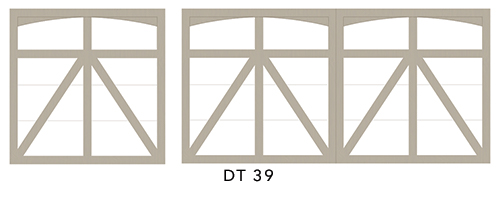

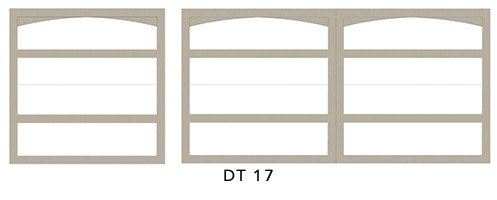

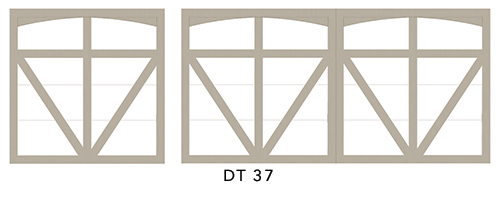

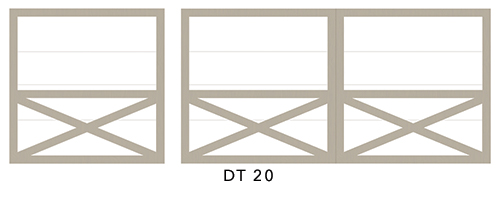

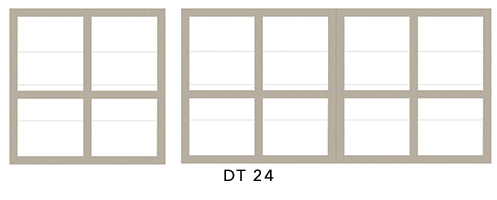

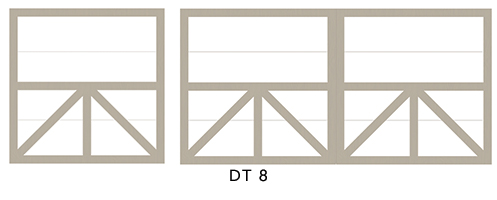

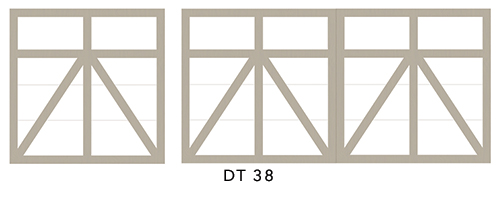

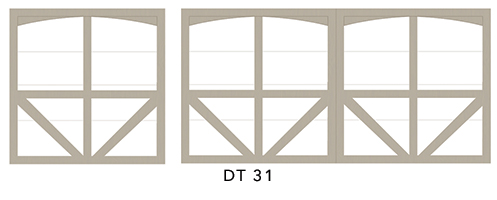

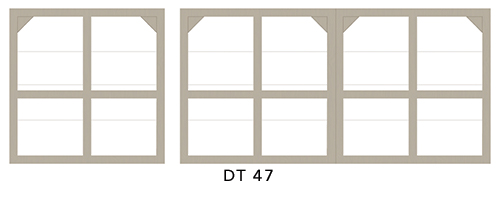

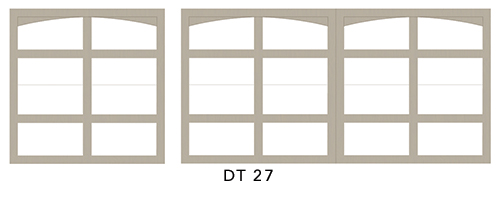

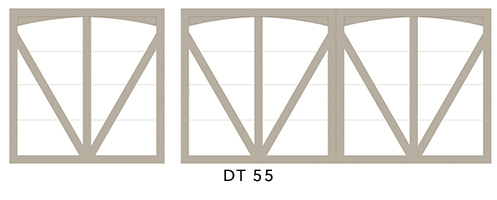

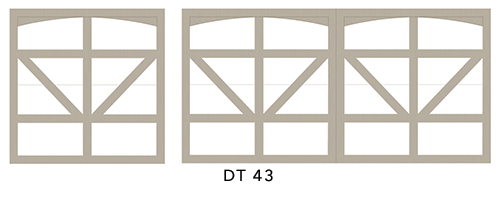

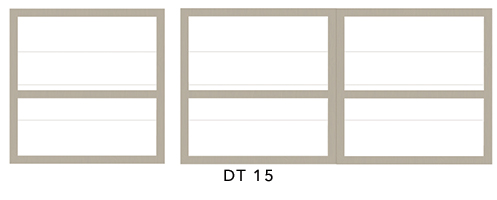

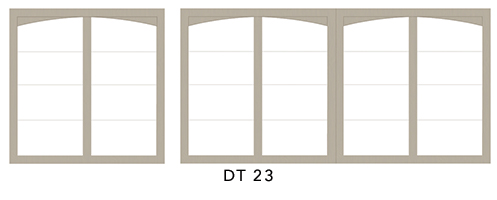

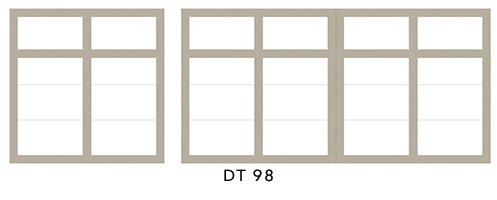

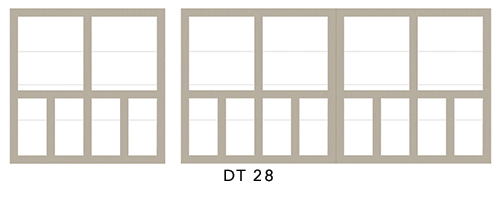

The 9100 DT SmartSide Trim is available in 43 distinct LP SmartSide engineered wood overlay layouts — from simple board-and-batten patterns to detailed colonial designs. Each DT number identifies a specific trim configuration. All designs are installed over the Wayne Dalton 9100 insulated steel base door and are painted white from the factory. LP SmartSide is a primed, treated engineered wood product that can be repainted to match any exterior color scheme.
All specification data sourced from DOORTEC and Wayne Dalton product documentation for the 9100 DT SmartSide Trim.
| Base Door | |
| Base Model | Wayne Dalton 9100 Series Insulated Steel |
| Insulation Type | Polyurethane Foamed-In-Place |
| R-Value | R-9 |
| Panel Design | Steel base with LP SmartSide engineered wood trim overlay |
| LP SmartSide Trim | |
| Trim Material | LP SmartSide Treated Engineered Wood |
| Trim Thickness | 3/8” |
| Texture | Deep cedar-grain embossed surface |
| Factory Finish | White — primed and ready for painting |
| Design Layouts | 43 DT design options (DT 1 through DT 100, non-sequential) |
| Color & Finish | |
| Available Color | White (factory finish — can be repainted to any exterior color) |
| Options & Accessories | |
| Hardware Kits | Decorative hardware kits available — 7 styles (Arrow, Aspen, Barcelona, Bean, Conifer, Fleur-de-Lis, Spear) |
| Knockers | Hammered knockers available — 6 styles |
| Lift Handles | Decorative lift handles available — 6 styles |
| Spring Upgrade | 25,000-cycle high-cycle spring option available |
| Wind Load | Wind load reinforcement options available — contact DOORTEC for details |
| Documentation | |
| Product Brochure | Model 9100 Brochure (PDF) |
| Wind Load Brochure | Wind Load Option Brochure (PDF) |
| Warranty | Wayne Dalton 10-Year Limited Warranty (PDF) |
The 9100 DT SmartSide Trim pairs naturally with Wayne Dalton decorative hardware to complete the carriage-house look. Hardware kits come with four hinges and two pull handles. Double-car doors require two sets. Knockers and lift handles are available in matching designs. Pull handle fit in center stile is dependent on door design and size.
The 9100 DT SmartSide Trim combines the durability and insulation performance of the Wayne Dalton 9100 base door with the dimensional appeal of LP SmartSide engineered wood trim.
| Insulation | |
| Polyurethane Foamed-In-Place | Polyurethane insulation is foamed in place during manufacturing, bonding to both steel skins and filling the entire section cavity. This process delivers superior thermal performance compared to polystyrene insulation of equivalent thickness, adds rigidity to door panels, and helps reduce sound transmission through the door. |
| Spring System | |
| High-Cycle Spring Option | An optional 25,000-cycle torsion spring upgrade is available — delivering roughly twice the service life of a standard spring. Recommended for homeowners who use their garage door frequently throughout the day. |
| Structural | |
| Integral Struts | Horizontal integral struts positioned at the top and bottom of door sections add rigidity and resistance to deflection, contributing to smooth operation and longer service life. |
| Pinch-Resistant Panels | The panel joint geometry is designed to reduce the risk of finger entrapment during downward door travel — a safety feature built into the door section profile at the factory. |
| Weathersealing | |
| Bottom Weather Seal | A flexible bottom seal is included with every door to reduce air infiltration and block drafts at the floor line. The seal remains pliable in cold temperatures to maintain a consistent barrier year-round across Oklahoma City metro weather conditions. |
| Wind Load Options | |
| Reinforcement Options | Wind load-rated reinforcement packages are available for the 9100 base door, including options designed to meet various building code requirements. Contact DOORTEC for details on wind load specifications available in your area. |
DOORTEC has installed over 140,000 garage doors across the OKC metro in over 60 years of business. Our technicians are trained to measure, order, and install the 9100 DT SmartSide Trim to Wayne Dalton factory specifications — including proper trim attachment, hardware placement, and spring balancing.
| What’s Included with Every DOORTEC Installation | |
| Pre-Install Consultation | Opening measured, DT design number selected, hardware and spring options confirmed before order is placed |
| Old Door Removal | Existing door and all hardware removed and hauled away — included at no additional charge |
| Full Hardware Install | Springs, cables, tracks, rollers, hinges, and decorative hardware installed to Wayne Dalton factory specifications |
| LP SmartSide Trim Install | Trim panels precisely cut and attached to door sections per Wayne Dalton DT specifications |
| Balance & Safety Check | Full operational test performed before we leave your property |
| Service Areas | |
| OKC Metro | Oklahoma City • Edmond • Norman • Moore • Yukon • Midwest City |
| Extended Areas | Guthrie • El Reno • Tulsa |
| Documents | |
| Product Brochure | Model 9100 Brochure (PDF) |
| Warranty | View DOORTEC & Wayne Dalton Warranty Information |
Carriage-house style garage doors with real wood trim have always commanded premium curb appeal — but in Oklahoma City’s climate, wood doors demand constant sealing, painting, and swelling-season adjustments. The 9100 DT SmartSide Trim solves that tradeoff. The Wayne Dalton 9100 insulated steel base provides the structure and thermal performance — R-9 polyurethane foamed-in-place insulation, pinch-resistant panel geometry, and a reliable spring system — while LP SmartSide 3/8-inch treated engineered wood trim delivers the dimensional, cedar-grain carriage look that turns heads across Edmond, Norman, Moore, and Yukon. LP SmartSide is engineered to resist moisture, impact, and Oklahoma weather extremes that would challenge solid wood over time. DOORTEC is the authorized Wayne Dalton dealer and DT SmartSide installer serving the OKC metro — call (405) 720-7107 for a free quote.

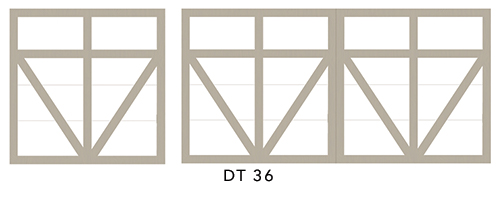

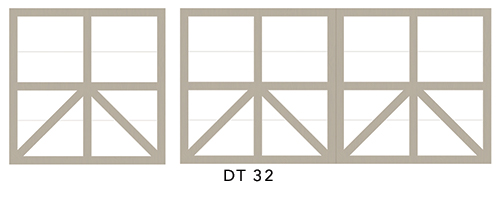

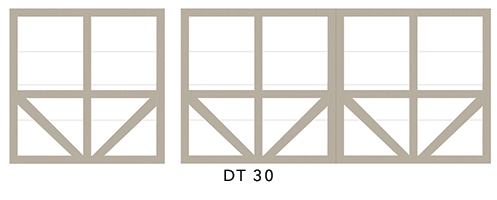

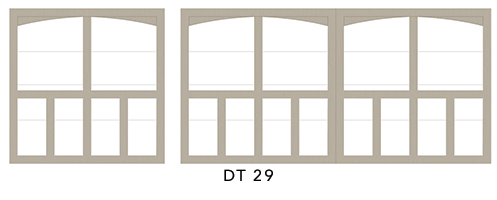

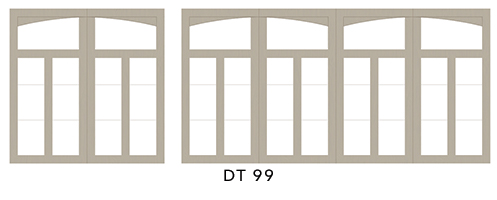

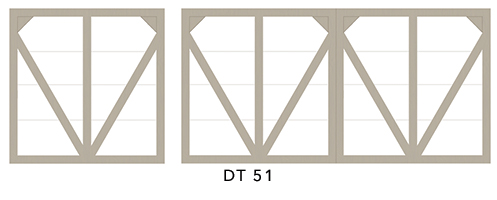

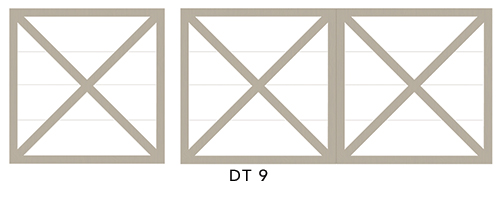

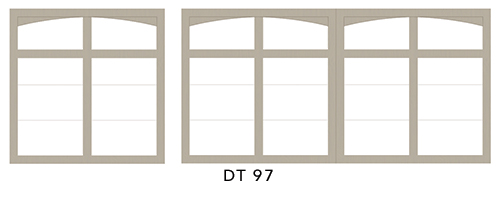

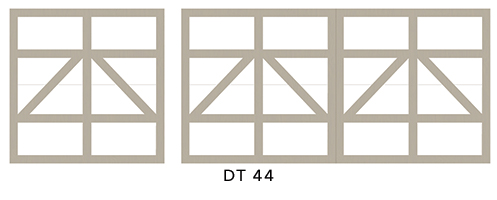

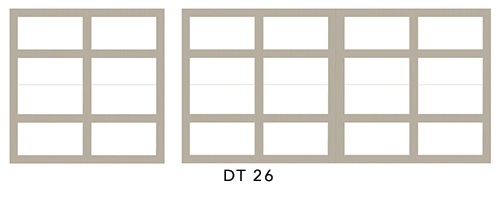

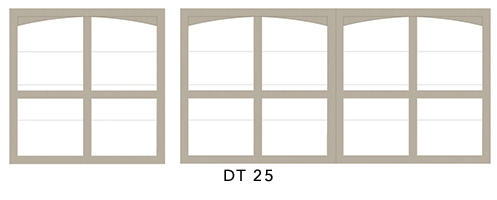

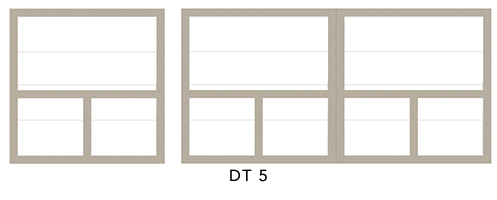

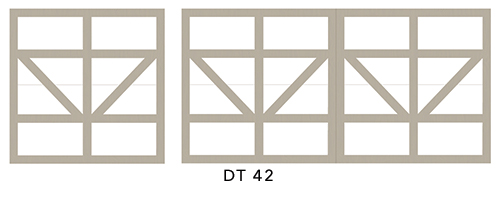

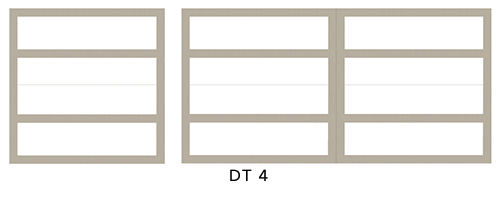

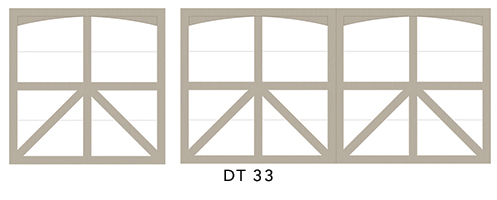

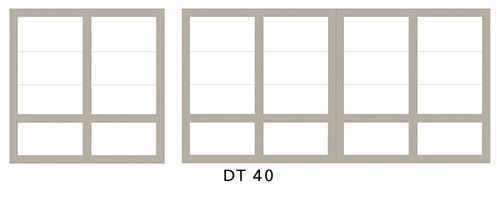

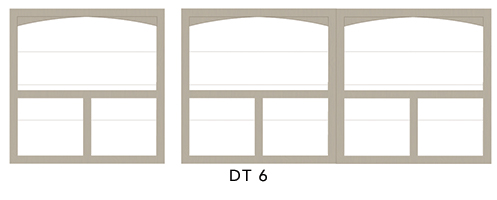

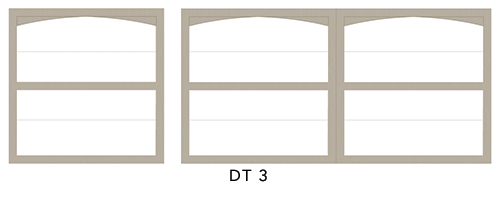

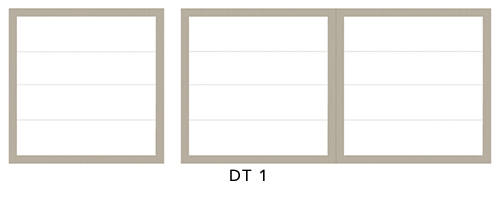

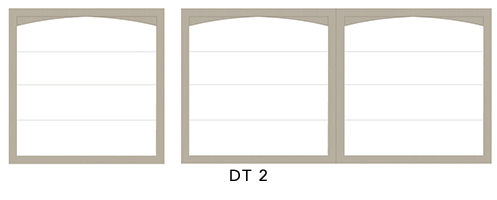

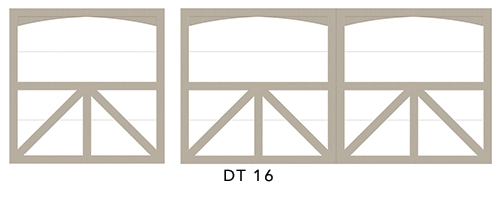

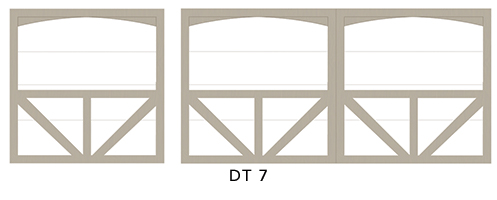

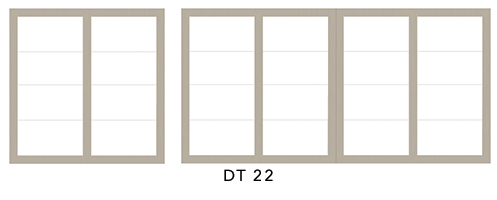

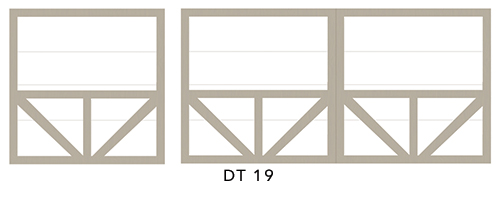

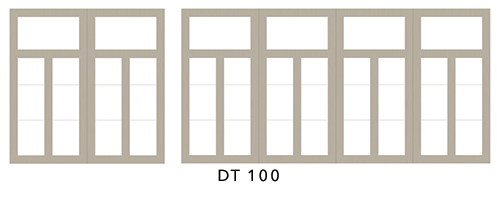

No two DT SmartSide trim layouts are the same. DOORTEC offers 43 distinct design configurations — numbered DT 1 through DT 100 on a non-sequential scale — ranging from clean horizontal board-and-batten arrangements to elaborate recessed-panel colonial patterns. Each design is produced using authentic LP SmartSide cedar-grain trim, factory finished in white and ready to paint any exterior color after installation. Matching decorative hardware is available in seven designs — Arrow, Aspen, Barcelona, Bean, Conifer, Fleur-de-Lis, and Spear — in both kit form (hinges and pull handles) and as individual knockers and lift handles. DOORTEC installs across Oklahoma City, Midwest City, Guthrie, El Reno, and Tulsa — reach out today to select your DT design number and get a same-day quote.
