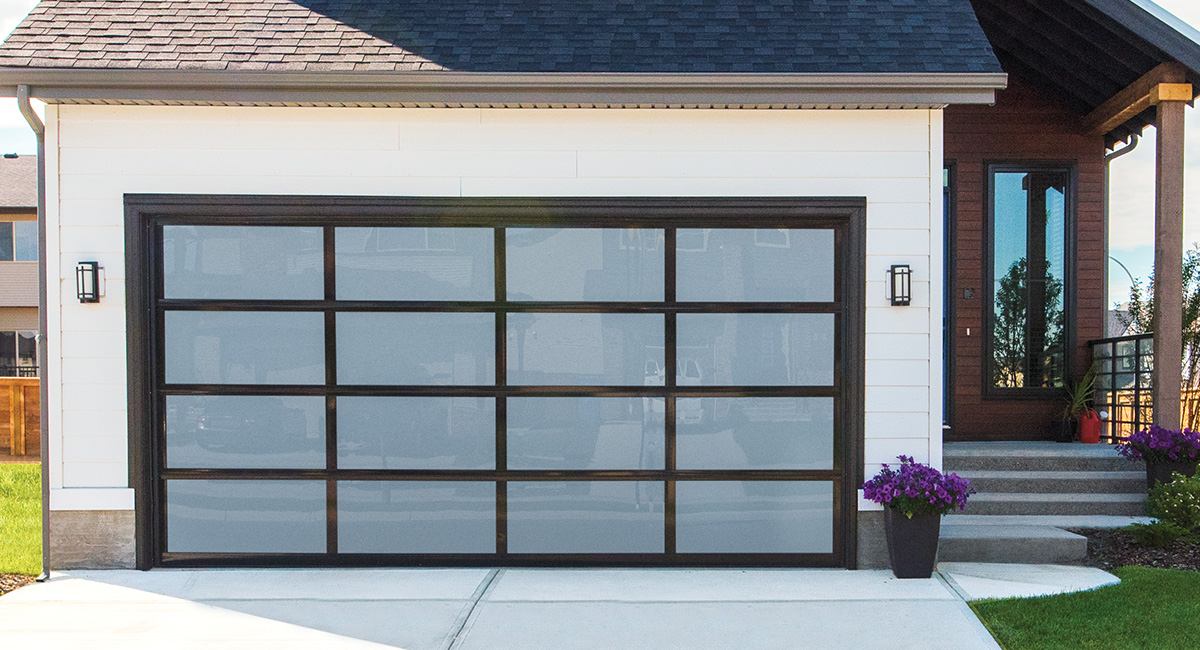

Sleek, sophisticated, and unmistakably contemporary — the Wayne Dalton Model 8850 transforms any home exterior with its full-view aluminum and glass design. Non-beveled rails and stiles deliver a true modern aesthetic. Available in anodized, painted, and powder-coat finishes with 7 glass options and optional foamed-in-place polyurethane insulation.
| Construction | |
| Model | 8850 Full View Aluminum Glass Garage Door |
| Frame Material | Anodized or powder-coated aluminum rails and stiles |
| Design | Non-beveled edges and straight lines for true contemporary style |
| Joints | Tongue-and-groove section joints prevent wind and weather from entering the garage |
| Bottom Seal | Flexible vinyl bottom seal keeps out dirt and elements |
| Reinforcement | Reinforced fins on all top sections and intermediate sections as needed for smooth long-term operation |
| Hardware | Heavy-duty track and brackets for reliable operation |
| Insulation (Optional) | |
| Insulation Type | Foamed-in-place polyurethane fills rails and stiles |
| Max Width (Insulated) | Up to 18'2" wide |
| U-Factor (Standard Glass) | .30 |
| U-Factor (Low-E Insulated Glass) | .28 |
| R-Value | Up to 4.06 (calculated door section)* |
| Frame & Finish Options | |
| Anodized Finishes | Clear (standard), Bronze, Black |
| Painted Finishes | White, Brown |
| Powder Coat Finishes | Dark Bronze, Black |
| Custom RAL Powder Coat | ~200 color options available |
| Frame Style Options | |
| Standard Frame | Available in 8ft (2 panels), 9ft (3 panels), 16ft (4 panels) |
| Double-Wide Frame | Heavier outer rails — 8ft (2 panels), 9ft (3 panels), 16ft (4 panels), 18ft (5 panels)* |
| Glass Options | |
| Available Glass | Clear (1/8" standard), Obscure, Satin Etched, White Laminated, Green Tinted, Gray Tinted, Bronze Tinted |
| Glass Type | Tempered safety glass; acrylic and solid panels available in single pane and insulated configurations |
| Warranty | |
| Aluminum | One-Year Limited Warranty |
| Glass | One-Year Limited Warranty |
| Service Areas | Oklahoma City · Edmond · Norman · Moore · Yukon · Midwest City · Guthrie · El Reno · Tulsa |
*18ft 5-panel configuration available in 8" double-wide frame only, due to door weight. 8" double-wide rails and double-end stiles not available for single car doors. *Wayne Dalton uses a calculated door section U-factor and R-value for insulated doors.

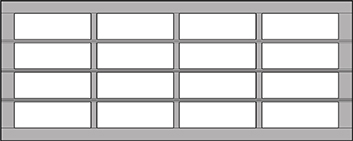

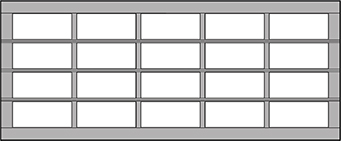

The Model 8850 is available in two frame configurations — Standard and Double-Wide. Standard frames feature classic-width rails and stiles. Double-Wide frames use heavier outer rails for larger door openings and are available in four widths. Panel spacing illustrations are for reference only and do not reflect actual rail and stile dimensions.
*18ft 5-panel configuration available in 8" double-wide frame only. 8" double-wide rails and end stiles are not available for single-car doors. Contact a DOORTEC specialist if ordering both a 16'3"+ door and a single door to confirm frame compatibility.

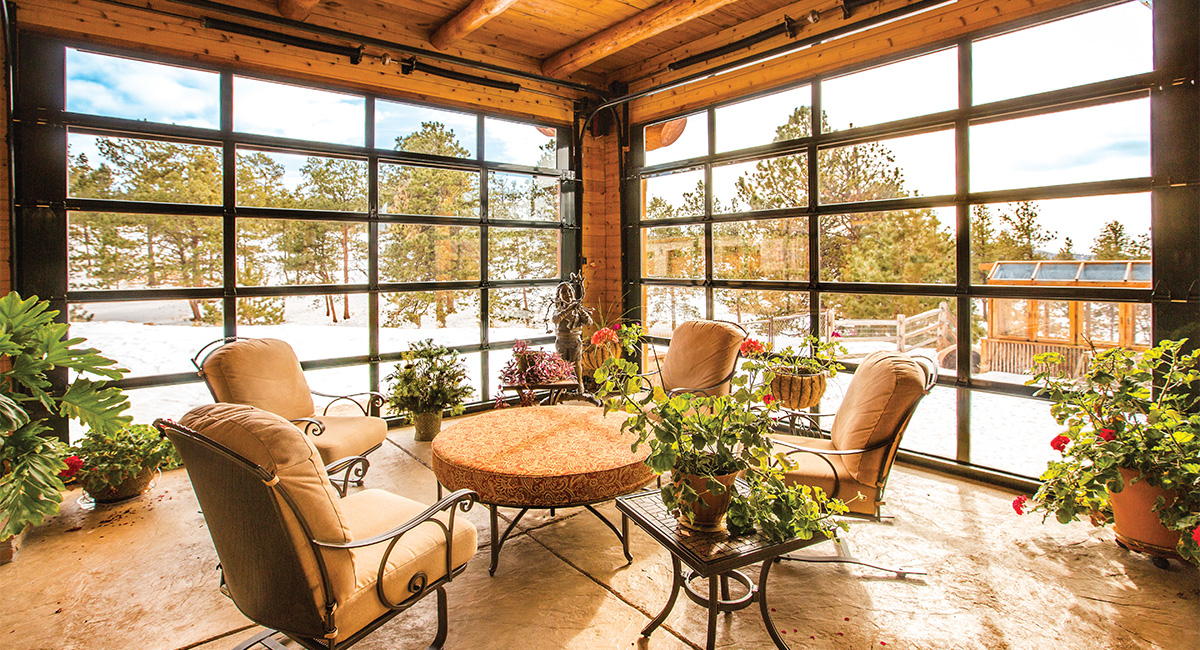

The Model 8850 is available in three anodized finishes, two painted finishes, two powder-coat finishes, and a custom RAL powder-coat program offering approximately 200 color options. Online swatches are digital reproductions only — contact DOORTEC for physical samples before finalizing your selection.
Online color swatches are digital reproductions of actual standards and will vary due to monitor and video card output. Do not use digital representations to finalize color selection — request physical samples from your DOORTEC specialist.
Seven glass options let you dial in exactly the right balance of light, privacy, and style for your Model 8850. From crystal-clear full transparency to the bold opacity of White Laminated glass, every option is available in both single-pane and insulated configurations. Tempered safety glass is standard; acrylic and solid panels are also available.
Insulated glass configurations add a U-factor of .28 with Low-E glass. Most panel styles available in single pane and insulated configurations. Tempered safety glass, acrylic, and solid panels available in a wide variety of colors, tints, and styles.
Wayne Dalton provides a One-Year Limited Warranty on the aluminum frame and structure of the Model 8850. Please reference the warranty document for complete coverage terms.
The glass panels of the Model 8850 are covered by a separate One-Year Limited Warranty. See the official warranty document for full terms and conditions.
Every DOORTEC installation is backed by our workmanship guarantee. Our factory-trained technicians install the 8850 to Wayne Dalton specifications — heavy-duty track, brackets, and precise alignment.
Full-view aluminum glass doors are among the heaviest and most technically demanding residential garage doors to install correctly. The Model 8850 requires precise track alignment, heavy-duty hardware, and careful handling of large glass panels. DOORTEC's factory-trained technicians have the specialized experience to ensure your 8850 operates flawlessly and looks stunning from day one.
| What's Included with Every DOORTEC Installation | |
| Pre-Installation Consultation | On-site measurement, frame style selection, finish and glass confirmation before any order is placed |
| Old Door Removal | Existing door and hardware removed and hauled away at no additional charge |
| Full Hardware Install | Heavy-duty track, brackets, springs, cables, and rollers installed to Wayne Dalton specifications |
| Glass Panel Handling | Specialized lifting and placement techniques to protect full-view glass panels during installation |
| Balance & Safety Check | Full operational test — balance, travel limits, auto-reverse, and safety sensors — before we leave |
Serving: Oklahoma City · Edmond · Norman · Moore · Yukon · Midwest City · Guthrie · El Reno · Tulsa
The Wayne Dalton Model 8850 is one of the boldest design statements available in the garage door market — and DOORTEC is Oklahoma City's authorized installer. If you're renovating a modern home in Edmond, building a new residence in Yukon, or upgrading a contemporary property anywhere in the OKC metro, the 8850 delivers a level of curb appeal that traditional panel doors simply cannot match.

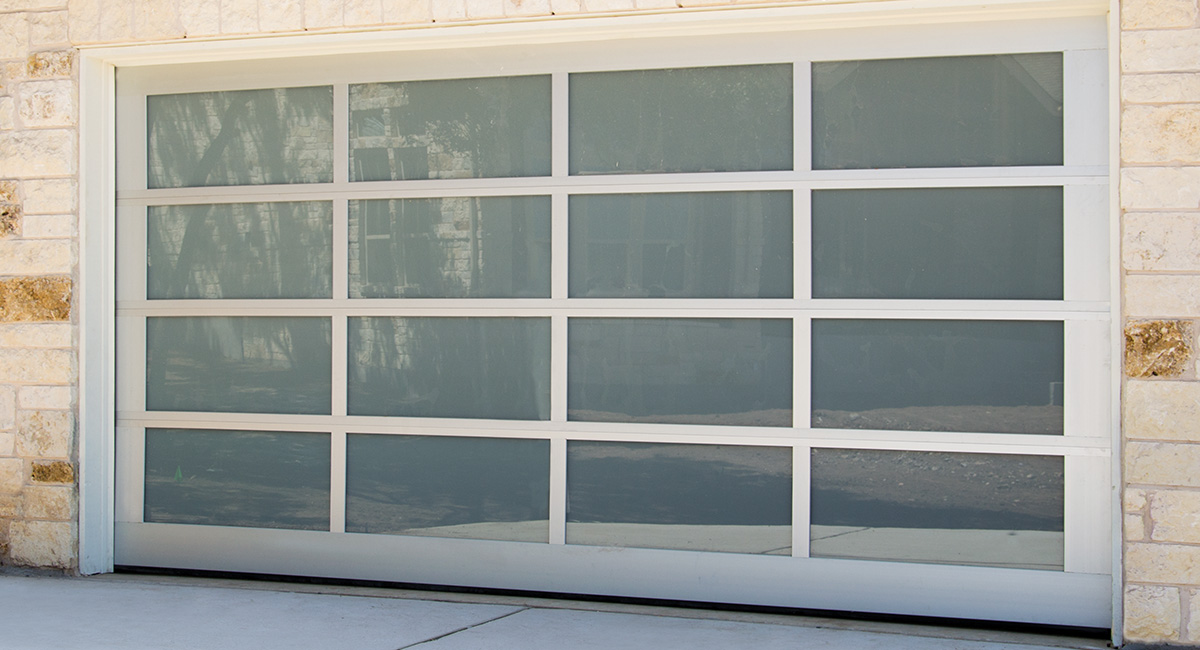

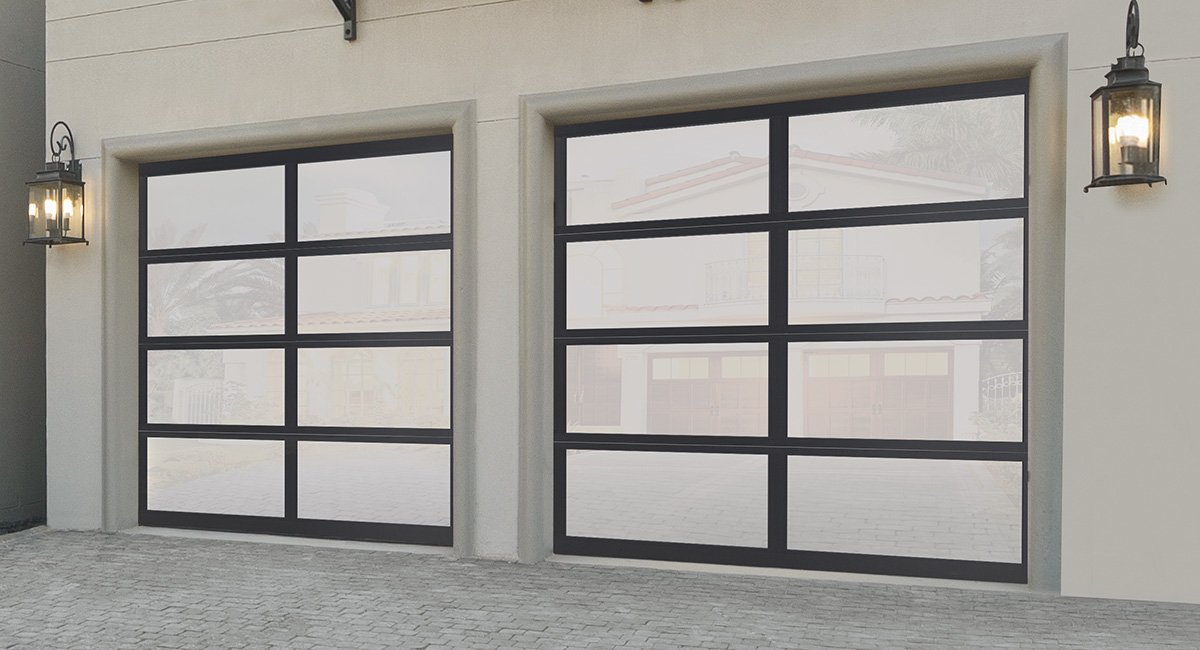

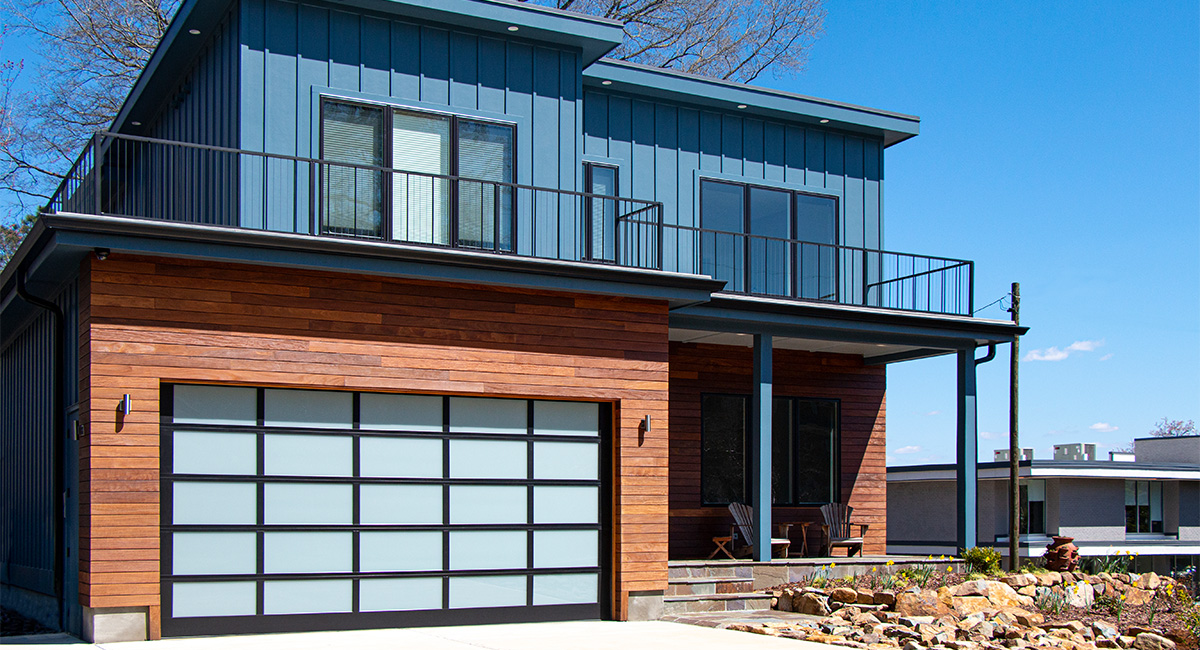

Non-beveled aluminum rails and stiles give the 8850 a genuinely architectural quality. Whether you choose the dramatic contrast of a Black powder-coat frame with White Laminated glass, or the understated sophistication of Clear Anodized with Satin Etched glass, every configuration is a deliberate design choice that elevates the entire facade of your home.
The customization depth of the Model 8850 is remarkable. Seven glass types — from fully transparent Clear glass to privacy-forward White Laminated — let Oklahoma homeowners in Norman, Moore, Midwest City, Guthrie, El Reno, and Tulsa fine-tune exactly how much light, visibility, and privacy they want. The optional RAL powder-coat program adds approximately 200 additional frame color choices beyond the standard anodized and painted options.
Optional foamed-in-place polyurethane insulation in the rails and stiles brings the U-factor down to .28 with Low-E insulated glass — making the 8850 a practical choice for attached garages as well as a stunning one for Oklahoma's hot summers and cold winters.
