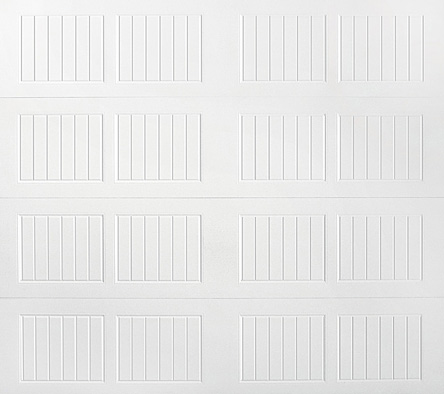

Carriage house style with genuine curb appeal — doorLink's 430/431 Grooved Panel brings highly detailed deep pebble grain texture and a durable two-coat prefinished paint system to 24-gauge hot dipped galvanized steel. Eight color options, six window styles, and full insulation on the 431 model make this one of the most versatile carriage doors DOORTEC installs across the OKC metro.
All specification data sourced directly from doorLink Manufacturing documentation for the Model 430/431 Grooved Panel. The 430 is the standard model; the 431 adds insulation and vinyl interior skin.
| Construction | |
| Model | doorLink Manufacturing — Model 430 / 431 |
| Panel Style | Grooved Panel — Carriage House Series |
| Steel Gauge | 24 Gauge Hot Dipped Galvanized Steel |
| Section Thickness | 2” thick section |
| Texture | Deep pebble grain texture with bi-directional wood grain pattern |
| End Stiles | 19 gauge hot dipped galvanized steel end caps |
| Interior Rails | Hemmed interior rails |
| Stile Attachment | Stiles attached with rivets for superior strength |
| Section Joints | Rolled safety edges eliminate sharp edges and add strength |
| Meeting Rails | Tongue and groove meeting rails for strength and weather sealing |
| Finish & Paint | |
| Paint System | 1.0 mil two-coat prefinished paint system |
| Primer | 0.25 mil rust inhibiting primer |
| Topcoat | 0.75 mil exterior topcoat — resists fading and chalking |
| Color Options | 8 — White · Almond · Desert Tan · Sandstone · Brown · Charcoal · Black · Walnut |
| Insulation & Interior — Model 431 | |
| Insulation Type | CFC free expanded polystyrene (standard on Model 431) |
| R-Value | R-6.85 — *431 Feature |
| Interior Skin | Vinyl interior skin / high impact plastic back cover — *431 Feature |
| Weathersealing | |
| Bottom Seal | Replaceable U-Type vinyl bottom weatherstrip |
| Retainer | Extruded aluminum weatherstrip retainer |
| Windows | |

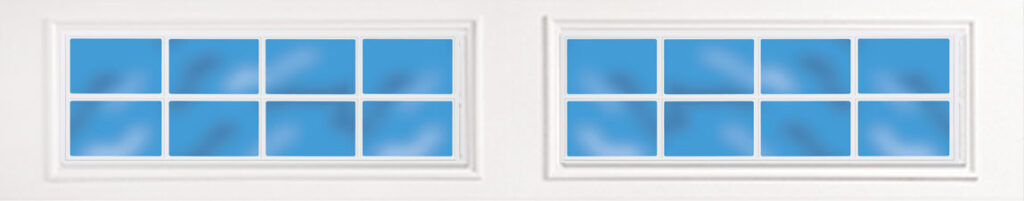

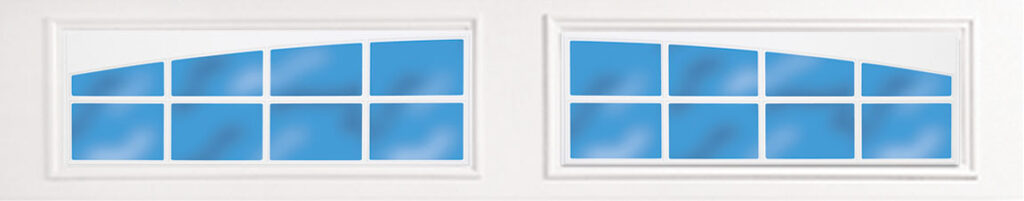

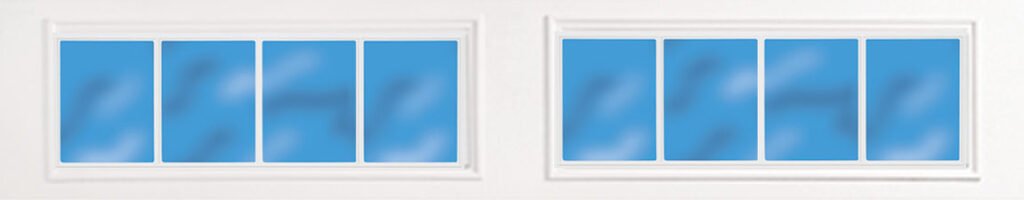

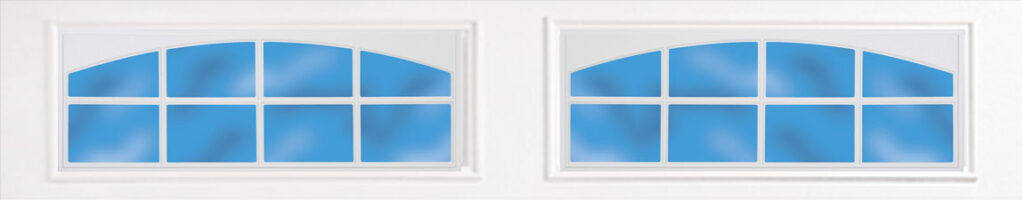

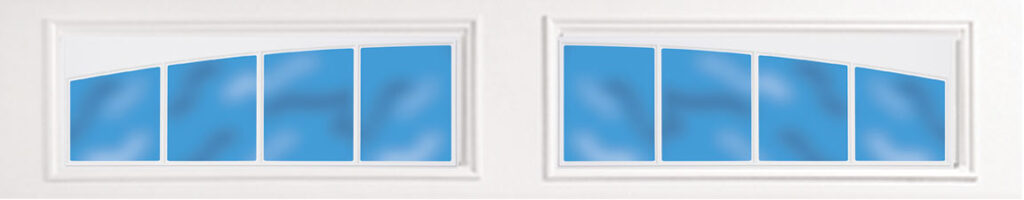

| Window Options | 6 insert styles — #287 Stockton Arch · #388 Somerton · #387 Stockton · #588 Wyndbridge · #587 Stockbridge · #897 Prairie |
| Glass Options | 6 — Clear · Satin · Bronze · Gray · Gray Lite 31 · Pattern 62 |
| Window Disclaimer | Not all glazing options available from all distributors. No glazing on 18” sections. Not all window inserts align with panel stamp design. |
| Sizes Available | |
| Widths | 8’ · 9’ · 10’ · 12’ · 14’ · 15’ · 16’ · 17’ · 18’ · 20’ · 22’ |
| Heights | 6’6” · 6’9” · 7’0” · 7’6” · 7’9” · 8’0” |
| Additional Heights | Contact DOORTEC for details |
All feature data sourced directly from doorLink Manufacturing documentation. Features marked *431 Feature apply to the insulated Model 431 only.

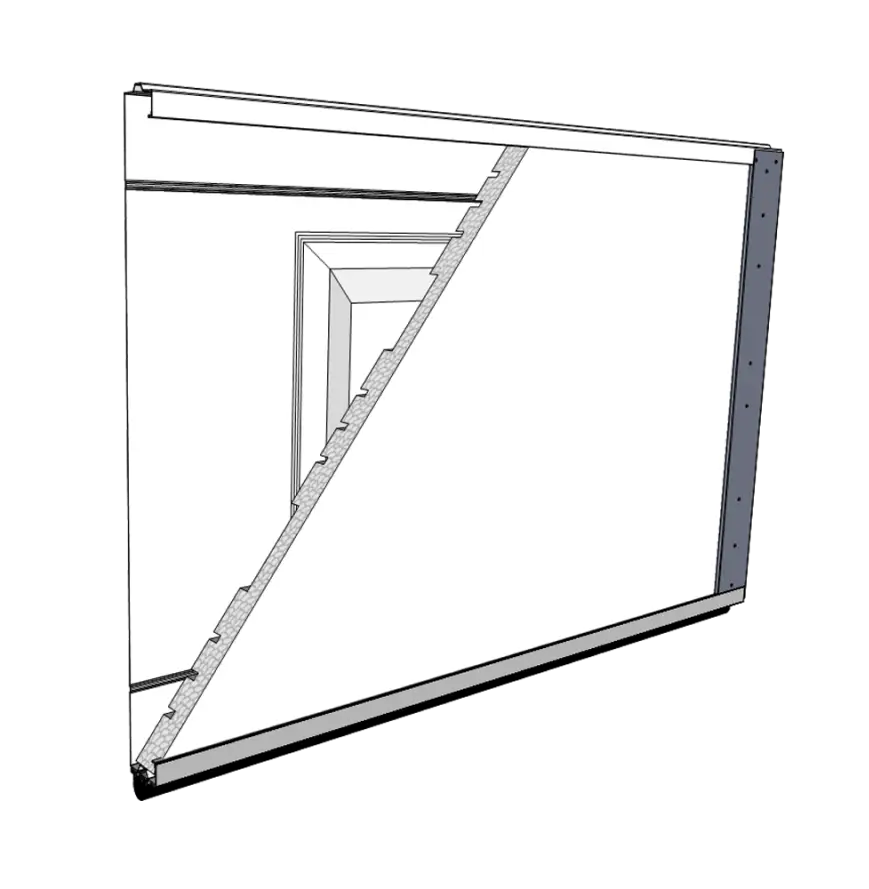

Hot dipped galvanized steel construction with hemmed inside return rail provides superior strength and durability.
Includes 0.25 mil rust inhibiting primer and 0.75 mil exterior topcoat that resists fading and chalking, while providing consistent color from panel to panel and more durability.
Provides superior strength when compared to common sheet metal joining methods.
Heavy duty metal stiles give strong rigid support for all hinges, rollers, and operator attachment.
Eliminates sharp edges, and provides extra strength.
For superior strength and better sealing against wind, rain, and snow.
Provides added strength while securing replaceable U-type bottom astragal weatherstrip to help keep the elements out.
Bi-directional wood grain pattern gives the appearance of traditional wood doors. Available in Walnut woodtone finish.
Enhances your home's energy savings, makes your door operation quieter, and reduces exterior noise in your garage.
*431 Feature
Environmentally friendly insulation that will not degrade with vibration or time.
*431 Feature
Protects the insulation, and enhances the interior look of your garage door.
*431 Feature
Eight prefinished colors are available on the doorLink 430/431. All colors use doorLink's 1.0 mil two-coat paint system with rust inhibiting primer. The Walnut option features a bi-directional wood grain pattern for a natural wood appearance. Colors may vary from actual product.
*Colors may vary from actual product. Physical samples available through DOORTEC — request before finalizing your selection.
The doorLink 430/431 offers six carriage-style window insert options and six glass types to complement the grooved panel design. Not all glazing options may be available from all distributors. No glazing available on 18” sections.
*Not all window inserts align with panel stamp design.
*Not all glazing options may be available from all distributors. Contact DOORTEC to confirm availability for your order.
The doorLink 430/431 Grooved Panel is available in a wide range of standard widths and heights to fit single-car, double-car, and oversized garage openings throughout the OKC metro.
| Available Widths | |
| Single Car | 8’ • 9’ • 10’ |
| Double Car | 12’ • 14’ • 15’ • 16’ • 17’ • 18’ |
| Oversized | 20’ • 22’ |
| Available Heights | |
| Standard Heights | 6’6” • 6’9” • 7’0” • 7’6” • 7’9” • 8’0” |
| Custom Heights | Additional heights available — Contact DOORTEC for details |
Not all width and height combinations are available in all configurations. DOORTEC will verify exact sizing options for your specific opening during your free quote consultation.
DOORTEC has installed over 140,000 garage doors across the OKC metro over 60 years. Our factory-trained technicians handle every doorLink 430/431 installation from precise measurement through final safety checkout — including proper sizing for your specific opening, hardware installation, and full operational verification before we leave your property.
| What’s Included with Every DOORTEC Installation | |
| Pre-Install Consultation | Opening measured, model confirmed (430 vs 431), color and window options selected before order is placed |
| Old Door Removal | Existing door and all hardware removed and hauled away at no additional charge |
| Full Hardware Install | Springs, cables, tracks, rollers, hinges, and weatherstripping installed to doorLink factory specifications |
| Balance & Safety Check | Full operational test of travel limits, auto-reverse, and safety sensors before we leave |
| Service Areas | |
| OKC Metro | Oklahoma City • Edmond • Norman • Moore • Yukon • Midwest City |
| Extended Areas | Guthrie • El Reno • Tulsa |
| Additional Resources | |
| Warranty Info | View DOORTEC & doorLink Warranty Information |
Homeowners across Oklahoma City, Edmond, Norman, Moore, Yukon, and Midwest City who want the timeless appeal of a carriage house door without the maintenance demands of real wood choose the doorLink 430/431 Grooved Panel. Built from 24-gauge hot dipped galvanized steel with a deep pebble grain texture and a 1.0 mil two-coat prefinished paint system, the 430 and 431 hold up to Oklahoma’s extreme weather while looking sharp year after year. Eight color options — including the bi-directional Walnut woodtone — give you the flexibility to match any home exterior. DOORTEC is an authorized doorLink dealer with over 60 years of installation experience across the OKC metro. Call (405) 720-7107 for a free quote.
The doorLink 430 is a non-insulated model — an excellent choice for detached garages or climates where thermal performance is less critical. The 431 upgrades to CFC-free expanded polystyrene insulation for an R-value of 6.85, plus a high-impact vinyl interior skin that protects the insulation and gives your garage a clean finished appearance. For attached garages in the Oklahoma City metro — where summer temperatures regularly exceed 100°F — the 431’s insulation package meaningfully reduces heat transfer and helps protect vehicles, tools, and stored items. Both models are available in widths from 8 to 22 feet and heights from 6’6” to 8’0”, with additional heights available through DOORTEC. Serving Tulsa, Guthrie, El Reno, and all nine OKC metro service cities.
