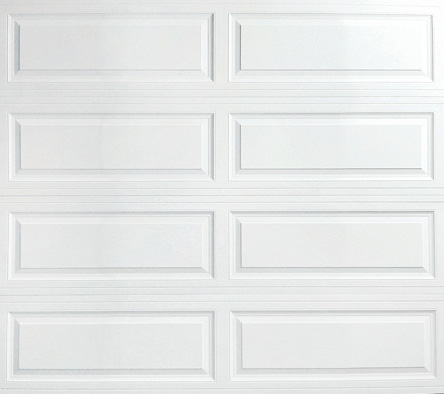

The doorLink 3690 Raised Ranch Panel brings a highly detailed, traditional raised-panel profile to the 3600 insulated steel series. Behind its distinctive ranch-style face lies the same proven 26-gauge 3-layer sandwich construction and R-10.25 CFC-free polystyrene insulation shared across all doorLink 3600 models — paired with eight deep woodgrain color options and six Ranch window insert styles in six glass tints. With widths available up to 24 feet and six standard heights, the 3690 handles the full range of single-car, double-car, and oversized openings that DOORTEC installs daily across Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and Tulsa.
All specification data sourced directly from doorLink Manufacturing documentation for the Model 3690 Raised Ranch Panel.
| Construction | |
| Model | doorLink Manufacturing — Model 3690 |
| Panel Style | Raised Ranch Panel — highly detailed raised profile, deep woodgrain texture |
| Steel Gauge | 26 Gauge Hot Dipped Galvanized Steel |
| Section Construction | 2” Thick — 3-Layer Sandwich Panel |
| Hinge Plates | 20 gauge full vertical steel hinge plates — run the full height of each section at all hinge locations |
| Meeting Rails | Tongue and groove meeting rails |
| Interior Skin | Pebble grain embossed steel backskin |
| Insulation | |
| Insulation Type | CFC free expanded polystyrene — pressure bonded between two steel skins |
| R-Value | R-10.25 |
| Finish & Paint | |
| Paint System | 1.0 mil two-coat prefinished paint system |
| Primer | 0.25 mil rust inhibiting primer |
| Topcoat | 0.75 mil exterior topcoat — resists fading and chalking |
| Texture | Deep woodgrain texture |
| Color Options (8) | White • Almond • Desert Tan • Sandstone • Brown • Gray • Charcoal • Black |
| Weathersealing | |
| Bottom Seal | Replaceable U-Type vinyl bottom weatherstrip |
| Retainer | Extruded aluminum weatherstrip retainer |
| Window Options | |
| Window Styles (6) | #306 Sherwood • #305 Williamsburg • #591 Cascade • #397 Stockton • #597 Stockbridge • #897 Prairie |
| Glass Tints (6) | Clear • Satin • Bronze • Gray • Gray Lite 31 • Pattern 62 |
| Window Disclaimer | Not all glazing options may be available from all distributors. Contact your supplier for window options. |
| Sizes Available | |
| Widths | 8’ • 9’ • 10’ • 12’ • 14’ • 15’ • 16’ • 17’ • 18’ • 20’ • 22’ • 24’ |
| Heights | 6’6” • 6’9” • 7’0” • 7’6” • 7’9” • 8’0” |
| Additional Heights | Contact DOORTEC for details |
All feature data sourced directly from doorLink Manufacturing documentation for Model 3690.
Hot dipped galvanized steel construction with hemmed inside return rail provides superior strength and durability.
Includes 0.25 mil rust inhibiting primer and 0.75 mil exterior topcoat that resists fading and chalking, while providing consistent color from panel to panel and more durability.
Galvanized steel hinge plates run the full height of each section at all hinge locations to facilitate the attachment of hinges, handles, struts, and step plates.
For superior strength and better sealing against wind, rain, and snow.
Provides added strength while securing replaceable U-type bottom astragal weatherstrip to help keep the elements out.

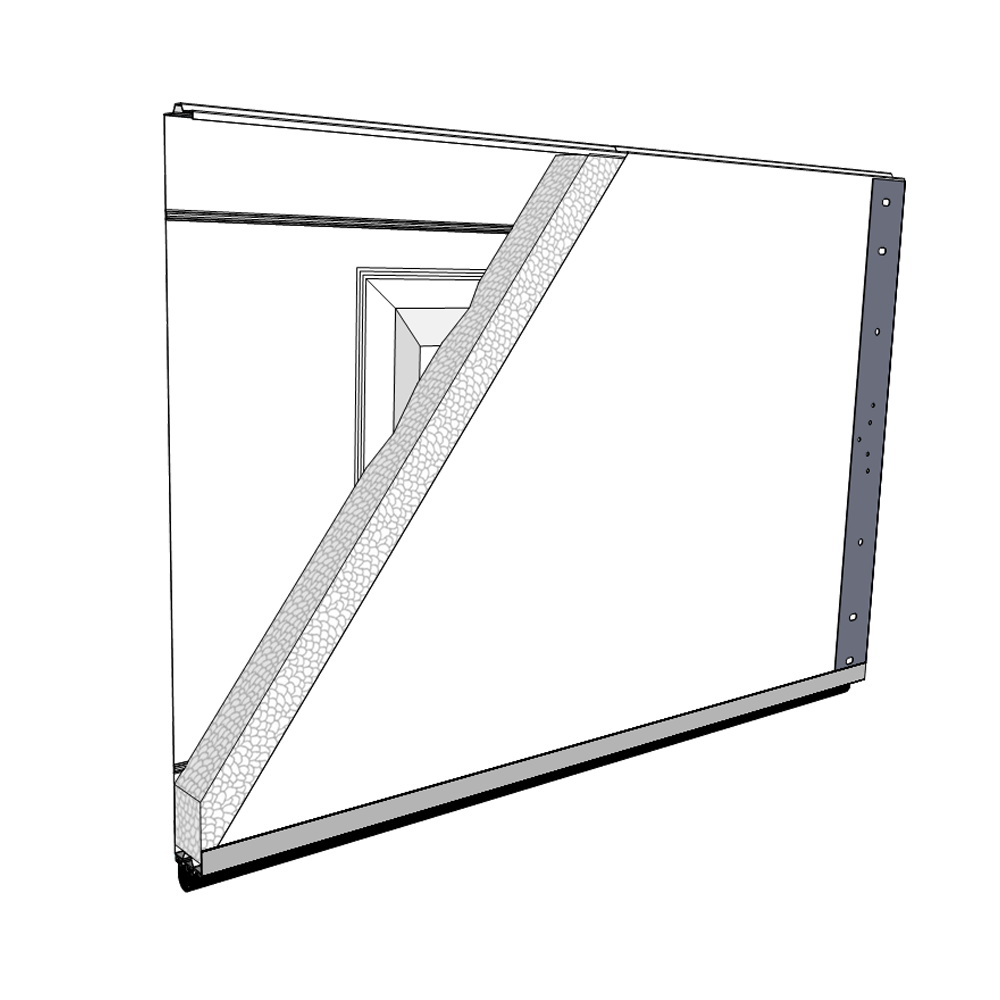

Sandwich type construction with polystyrene insulation pressure bonded between two sheets of hot dipped galvanized steel enhances your home's energy savings, makes your door operation quieter, and reduces exterior noise in your garage.
Environmentally friendly insulation that will not degrade with vibration or time.
The doorLink 3690 Raised Ranch Panel is available in eight deep woodgrain prefinished colors. Colors may vary from actual product.
*Colors may vary from actual product. DOORTEC can provide physical color samples — contact us before finalizing your selection.

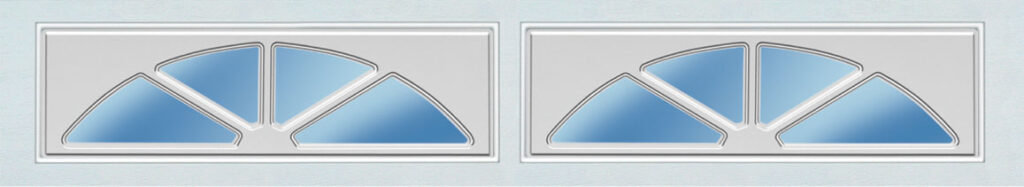

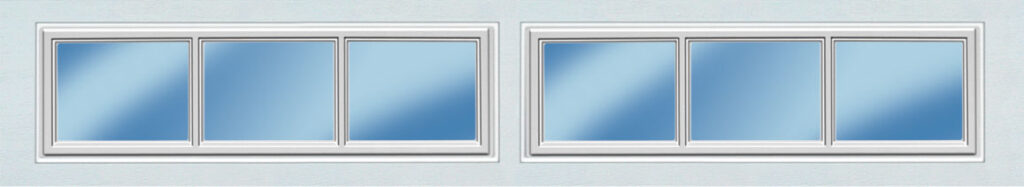

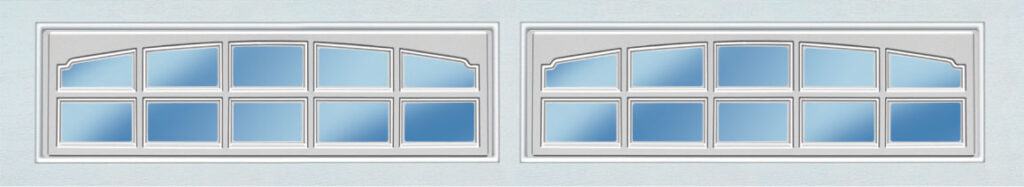

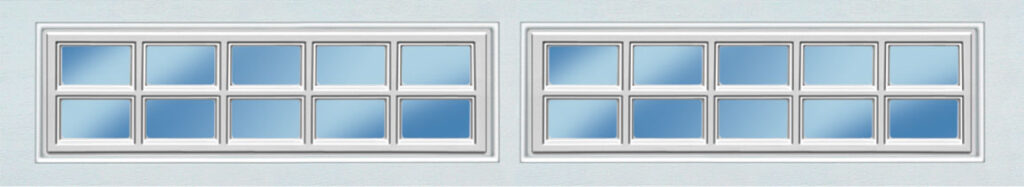

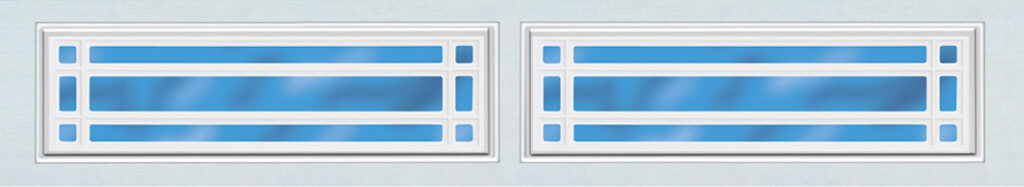

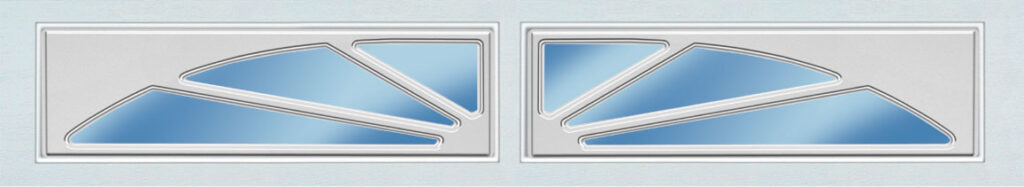

The doorLink 3690 is compatible with six Ranch-style window insert designs. Not all glazing options may be available from all distributors. Contact your supplier for window options.
*Not all glazing options may be available from all distributors. Contact DOORTEC to confirm availability in the OKC metro.
The doorLink 3690 Raised Ranch Panel is available in a full range of widths — including up to 24 feet — with five panel stamp groups and six standard heights. Each diagram below shows the raised ranch panel layout for that width range.
| Available Heights | |
| Standard Heights | 6’6” • 6’9” • 7’0” • 7’6” • 7’9” • 8’0” |
| Custom Heights | Additional heights available — Contact DOORTEC for details |
DOORTEC has completed over 140,000 garage door installations across the OKC metro over 60 years. Our factory-trained technicians handle every doorLink 3690 installation from precise measurement through final safety checkout.
| What’s Included with Every DOORTEC Installation | |
| Pre-Install Consultation | Opening measured, color and window options selected, sizing confirmed before order is placed |
| Old Door Removal | Existing door and all hardware removed and hauled away at no additional charge |
| Full Hardware Install | Springs, cables, tracks, rollers, hinges, and weatherstripping installed to doorLink factory specifications |
| Balance & Safety Check | Full operational test before we leave your property |
| Service Areas | |
| OKC Metro | Oklahoma City • Edmond • Norman • Moore • Yukon • Midwest City |
| Extended Areas | Guthrie • El Reno • Tulsa |
| Additional Resources | |
| Warranty Info | View DOORTEC & doorLink Warranty Information |
The doorLink 3690 Raised Ranch Panel occupies a distinct position in the doorLink residential lineup — it brings a highly detailed raised panel geometry to the 3600 series insulated steel family. Where the 3630 and 3640 lean into carriage house styling and the 3650 goes fully flush, the 3690 delivers the traditional raised-panel look that remains the most popular choice on ranch-style and suburban homes throughout Oklahoma City and the surrounding metro. The same 26-gauge 3-layer sandwich construction and R-10.25 CFC-free polystyrene insulation shared across all 3600 models means there is no tradeoff between appearance and performance. DOORTEC is an authorized doorLink dealer serving OKC, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and Tulsa — call (405) 720-7107 for a free quote.
The 3690 stands apart from other doorLink models on two additional points. First, it offers six Ranch-style window insert options — Sherwood (#306), Williamsburg (#305), Cascade (#591), Stockton (#397), Stockbridge (#597), and Prairie (#897) — each available in six glass tints: Clear, Satin, Bronze, Gray, Gray Lite 31, and Pattern 62. That is the broadest glass tint selection of any doorLink 3600 model. Second, the 3690 is available up to 24 feet wide, covering RV bays, three-car garages, and oversized openings across the OKC metro with five distinct panel stamp configurations. Contact DOORTEC today to select your color, window style, and size.
