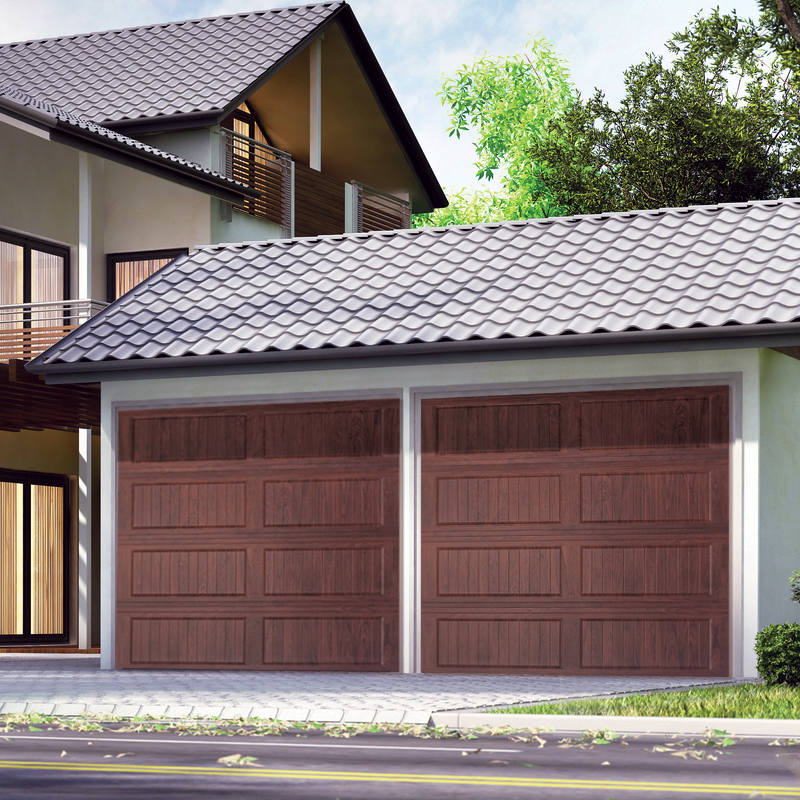

The doorLink 3640 Long Grooved Panel brings carriage house character in a longer panel configuration — the same 26-gauge 3-layer sandwich construction and R-10.25 insulation as the 3630, but with the extended groove profile that creates a broader horizontal appearance on the door face. Pebble grain embossed steel interior backskin, 20-gauge full vertical hinge plates, and twelve color options — including four bi-directional woodtones — make the 3640 one of the most versatile carriage doors DOORTEC installs across the OKC metro.
All specification data sourced directly from doorLink Manufacturing documentation for the Model 3640 Long Grooved Panel.
| Construction | |
| Model | doorLink Manufacturing — Model 3640 |
| Panel Style | Long Grooved Panel — Carriage House Series |
| Steel Gauge | 26 Gauge Hot Dipped Galvanized Steel |
| Section Construction | 2” Thick — 3-Layer Sandwich Panel |
| Hinge Plates | 20 gauge full vertical steel hinge plates — run the full height of each section at all hinge locations |
| Meeting Rails | Tongue and groove meeting rails |
| Interior Skin | Pebble grain embossed steel backskin |
| Insulation | |
| Insulation Type | CFC free expanded polystyrene — pressure bonded between two steel skins |
| R-Value | R-10.25 |
| Finish & Paint | |
| Paint System | 1.0 mil two-coat prefinished paint system |
| Primer | 0.25 mil rust inhibiting primer |
| Topcoat | 0.75 mil exterior topcoat — resists fading and chalking |
| Texture | Deep pebble grain texture with bi-directional wood grain pattern |
| Color Options (12) | Pebble Grain: White · Almond · Desert Tan · Sandstone · Brown · Gray · Charcoal · Black Bi-Directional Woodtones: Oak · Walnut · Driftwood · Light Cypress |
| Weathersealing | |
| Bottom Seal | Replaceable U-Type vinyl bottom weatherstrip |
| Retainer | Extruded aluminum weatherstrip retainer |
| Windows | |

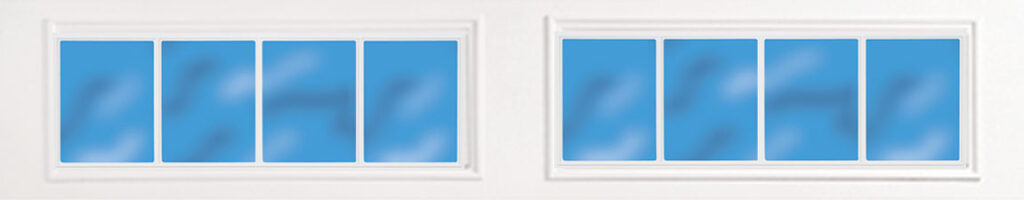

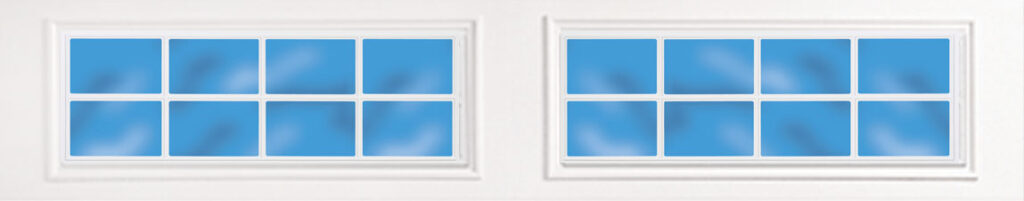

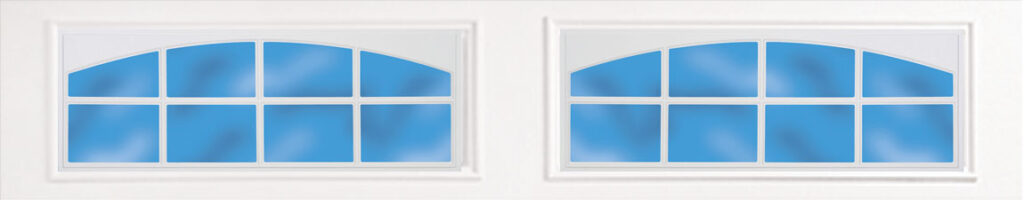

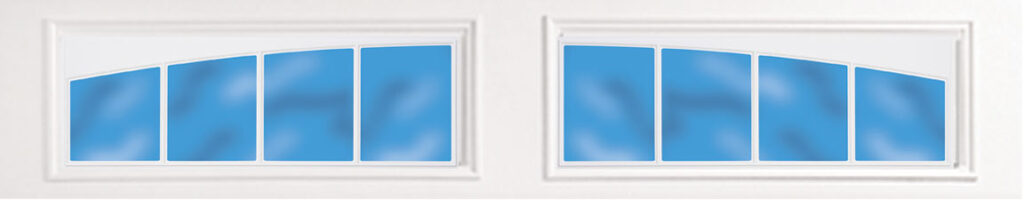

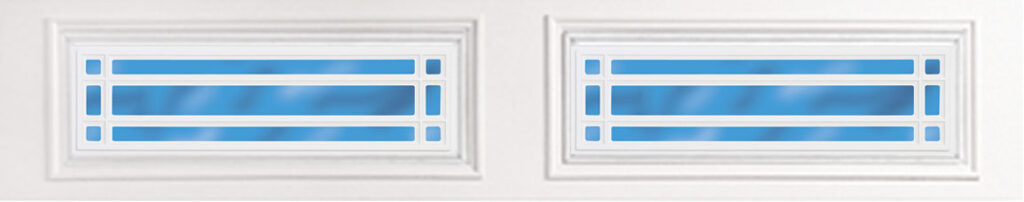

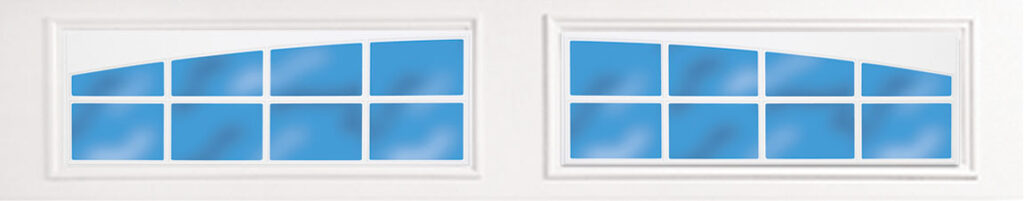

| Window Options | 6 carriage-style inserts — #287 Stockton Arch · #388 Somerton · #387 Stockton · #588 Wyndbridge · #587 Stockbridge · #897 Prairie |
| Glass Options | 6 — Clear · Satin · Bronze · Gray · Gray Lite 31 · Pattern 62 |
| Window Disclaimer | Not all glazing options available from all distributors. No glazing on 18” sections. Not all window inserts align with panel stamp design. |
| Sizes Available | |
| Widths | 8’ · 9’ · 10’ · 12’ · 14’ · 15’ · 16’ · 17’ · 18’ · 20’ · 22’ |
| Heights | 6’6” · 6’9” · 7’0” · 7’6” · 7’9” · 8’0” |
| Additional Heights | Contact DOORTEC for details |
All feature data sourced directly from doorLink Manufacturing documentation for Model 3640.
Hot dipped galvanized steel construction with hemmed inside return rail provides superior strength and durability.
Includes 0.25 mil rust inhibiting primer and 0.75 mil exterior topcoat that resists fading and chalking, while providing consistent color from panel to panel and more durability.
Galvanized steel hinge plates run the full height of each section at all hinge locations to facilitate the attachment of hinges, handles, struts, and step plates.
For superior strength and better sealing against wind, rain, and snow.
Provides added strength while securing replaceable U-type bottom astragal weatherstrip to help keep the elements out.

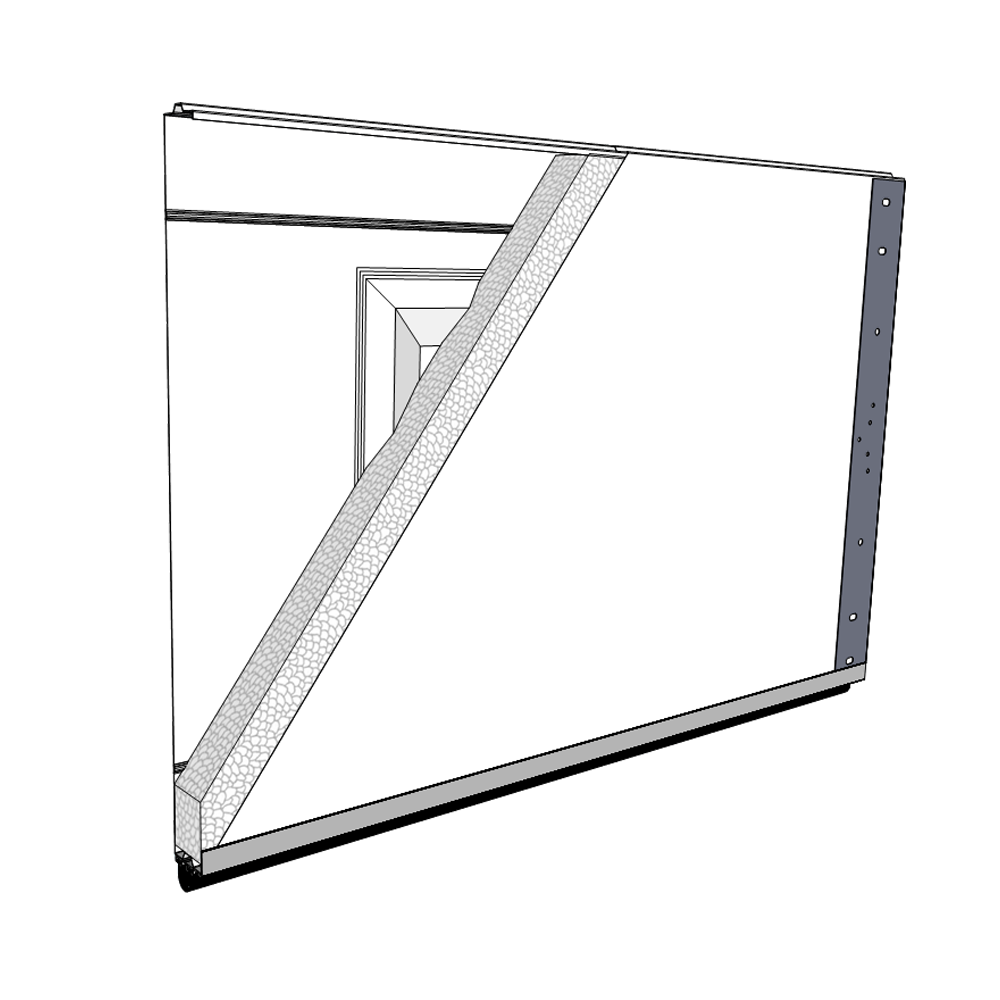

Sandwich type construction with polystyrene insulation pressure bonded between two sheets of hot dipped galvanized steel enhances your home's energy savings, makes your door operation quieter, and reduces exterior noise in your garage.
Environmentally friendly insulation that will not degrade with vibration or time.
Bi-directional wood grain pattern gives the appearance of traditional wood doors. Available in Oak, Walnut, Driftwood, and Light Cypress woodtone finishes.
The doorLink 3640 shares the same 12-color lineup as the 3630 — eight prefinished pebble grain colors and four bi-directional woodtone finishes. The longer groove profile of the 3640 panel creates a distinctly different visual rhythm with the same color palette. Colors may vary from actual product.
doorLink’s bi-directional wood grain pattern creates an authentic wood appearance in both directions, delivering the look of traditional wood carriage doors with the durability and low maintenance of steel construction.
*Colors may vary from actual product. Physical samples available through DOORTEC — request before finalizing your selection.
The doorLink 3640 offers six carriage-style window inserts and six glass types. Not all glazing options may be available from all distributors. No glazing available on 18” sections.
*Not all window inserts align with panel stamp design.
*Not all glazing options may be available from all distributors. Contact DOORTEC to confirm availability for your order.
The doorLink 3640 Long Grooved Panel is available in a full range of widths and six standard heights to fit virtually any residential garage opening.
| Available Widths | |
| Single Car | 8’ • 9’ • 10’ |
| Double Car | 12’ • 14’ • 15’ • 16’ • 17’ • 18’ |
| Oversized | 20’ • 22’ |
| Available Heights | |
| Standard Heights | 6’6” • 6’9” • 7’0” • 7’6” • 7’9” • 8’0” |
| Custom Heights | Additional heights available — Contact DOORTEC for details |
DOORTEC has completed over 140,000 garage door installations across the OKC metro over 60 years. Our factory-trained technicians handle every doorLink 3640 installation from precise measurement through final safety checkout.
| What’s Included with Every DOORTEC Installation | |
| Pre-Install Consultation | Opening measured, color/woodtone and window options selected, sizing confirmed before order is placed |
| Old Door Removal | Existing door and all hardware removed and hauled away at no additional charge |
| Full Hardware Install | Springs, cables, tracks, rollers, hinges, and weatherstripping installed to doorLink factory specifications |
| Balance & Safety Check | Full operational test before we leave your property |
| Service Areas | |
| OKC Metro | Oklahoma City • Edmond • Norman • Moore • Yukon • Midwest City |
| Extended Areas | Guthrie • El Reno • Tulsa |
| Additional Resources | |
| Warranty Info | View DOORTEC & doorLink Warranty Information |

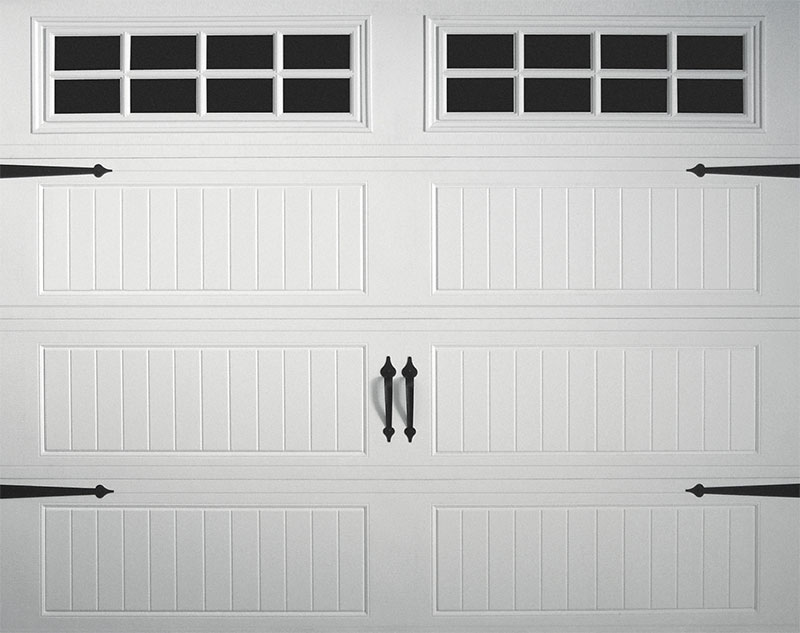

The doorLink 3640 Long Grooved Panel takes the same 26-gauge 3-layer sandwich construction and R-10.25 insulation found in the 3630 and applies a longer groove stamp that creates a broader, more horizontal panel appearance. The result is a carriage house door that reads as taller and more architectural on larger openings — particularly effective on 16-foot and wider double-car garages in the OKC metro. Like all 3600-series doorLink models, the 3640 includes 20-gauge full vertical steel hinge plates and a pebble grain embossed steel interior backskin — construction quality that distinguishes the 3600 series from the entry-level 430/431 carriage range. DOORTEC is an authorized doorLink dealer serving Oklahoma City, Edmond, Norman, Moore, Yukon, and Midwest City. Call (405) 720-7107 for a free installation quote.
The 3630 and 3640 are structurally identical — same gauge, same R-value, same colors, same window options, same sizes. The difference is purely visual: the 3630 Short Grooved Panel creates more horizontal lines per section, while the 3640 Long Grooved Panel uses fewer, wider grooves for a cleaner, more modern look. Both carry the full 12-color lineup including four bi-directional woodtones (Oak, Walnut, Driftwood, and Light Cypress) and the same six carriage-style window inserts. DOORTEC carries both models and can show you samples at any of our Oklahoma City locations. Serving Tulsa, Guthrie, El Reno, Midwest City, Yukon, and the entire OKC metro — contact us for your free no-obligation quote today.
