The doorLink 3630 delivers carriage house style with genuine 3-layer sandwich construction. Built from 26-gauge hot dipped galvanized steel with R-10.25 CFC-free polystyrene insulation pressure bonded between the skins, it includes a pebble grain embossed steel interior backskin, 20-gauge full vertical hinge plates, and the most extensive color lineup in the doorLink carriage range — twelve options including four bi-directional woodtone finishes: Oak, Walnut, Driftwood, and Light Cypress.
All specification data sourced directly from doorLink Manufacturing documentation for the Model 3630 Grooved Panel.
| Construction | |
| Model | doorLink Manufacturing — Model 3630 |
| Panel Style | Grooved Panel — Carriage House Series |
| Steel Gauge | 26 Gauge Hot Dipped Galvanized Steel |
| Section Construction | 2” Thick — 3-Layer Sandwich Panel |
| Hinge Plates | 20 gauge full vertical steel hinge plates — run the full height of each section at all hinge locations |
| Meeting Rails | Tongue and groove meeting rails |
| Interior Skin | Pebble grain embossed steel backskin |
| Insulation | |
| Insulation Type | CFC free expanded polystyrene — pressure bonded between two steel skins |
| R-Value | R-10.25 |
| Finish & Paint | |
| Paint System | 1.0 mil two-coat prefinished paint system |
| Primer | 0.25 mil rust inhibiting primer |
| Topcoat | 0.75 mil exterior topcoat — resists fading and chalking |
| Texture | Deep pebble grain texture with bi-directional wood grain pattern |
| Color Options (12) | Pebble Grain: White · Almond · Desert Tan · Sandstone · Brown · Gray · Charcoal · Black Bi-Directional Woodtones: Oak · Walnut · Driftwood · Light Cypress |
| Weathersealing | |
| Bottom Seal | Replaceable U-Type vinyl bottom weatherstrip |
| Retainer | Extruded aluminum weatherstrip retainer |
| Windows | |

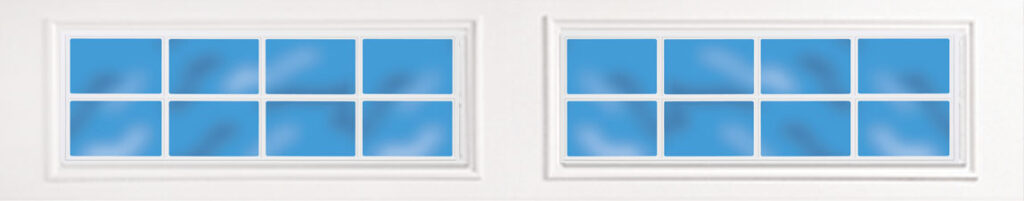

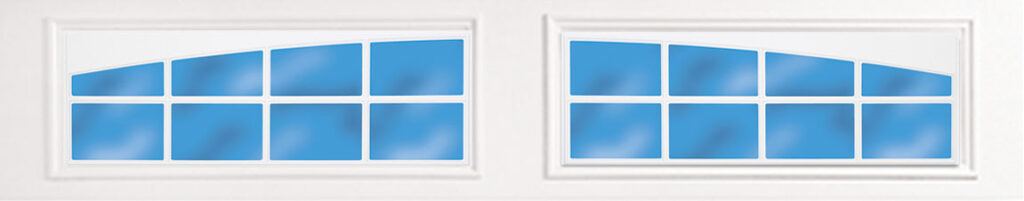

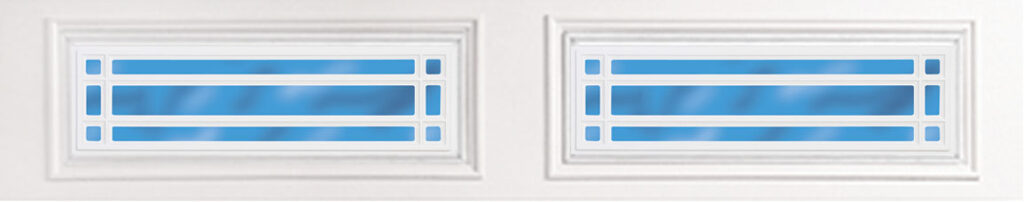

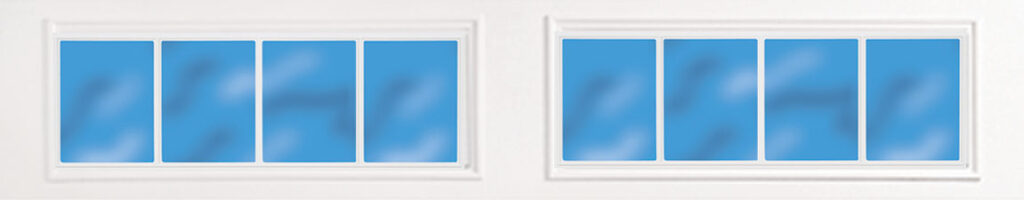

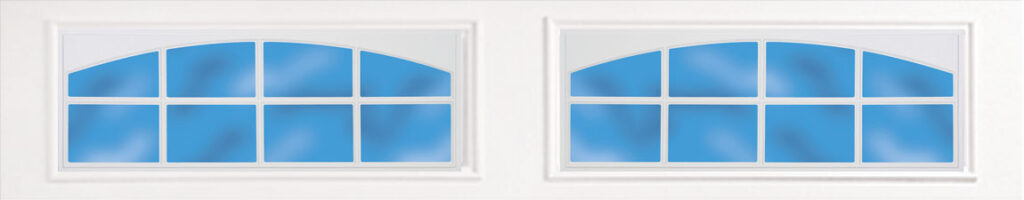

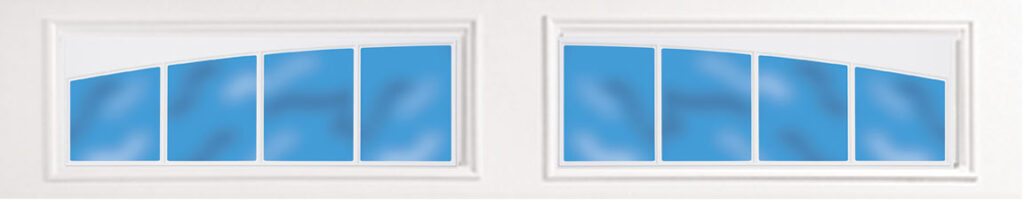

| Window Options | 6 carriage-style inserts — #287 Stockton Arch · #388 Somerton · #387 Stockton · #588 Wyndbridge · #587 Stockbridge · #897 Prairie |
| Glass Options | 6 — Clear · Satin · Bronze · Gray · Gray Lite 31 · Pattern 62 |
| Window Disclaimer | Not all glazing options available from all distributors. No glazing on 18” sections. Not all window inserts align with panel stamp design. |
| Sizes Available | |
| Widths | 8’ · 9’ · 10’ · 12’ · 14’ · 15’ · 16’ · 17’ · 18’ · 20’ · 22’ |
| Heights | 6’6” · 6’9” · 7’0” · 7’6” · 7’9” · 8’0” |
| Additional Heights | Contact DOORTEC for details |
All feature data sourced directly from doorLink Manufacturing documentation for Model 3630.
Hot dipped galvanized steel construction with hemmed inside return rail provides superior strength and durability.
Includes 0.25 mil rust inhibiting primer and 0.75 mil exterior topcoat that resists fading and chalking, while providing consistent color from panel to panel and more durability.
Galvanized steel hinge plates run the full height of each section at all hinge locations to facilitate the attachment of hinges, handles, struts, and step plates.
For superior strength and better sealing against wind, rain, and snow.
Provides added strength while securing replaceable U-type bottom astragal weatherstrip to help keep the elements out.

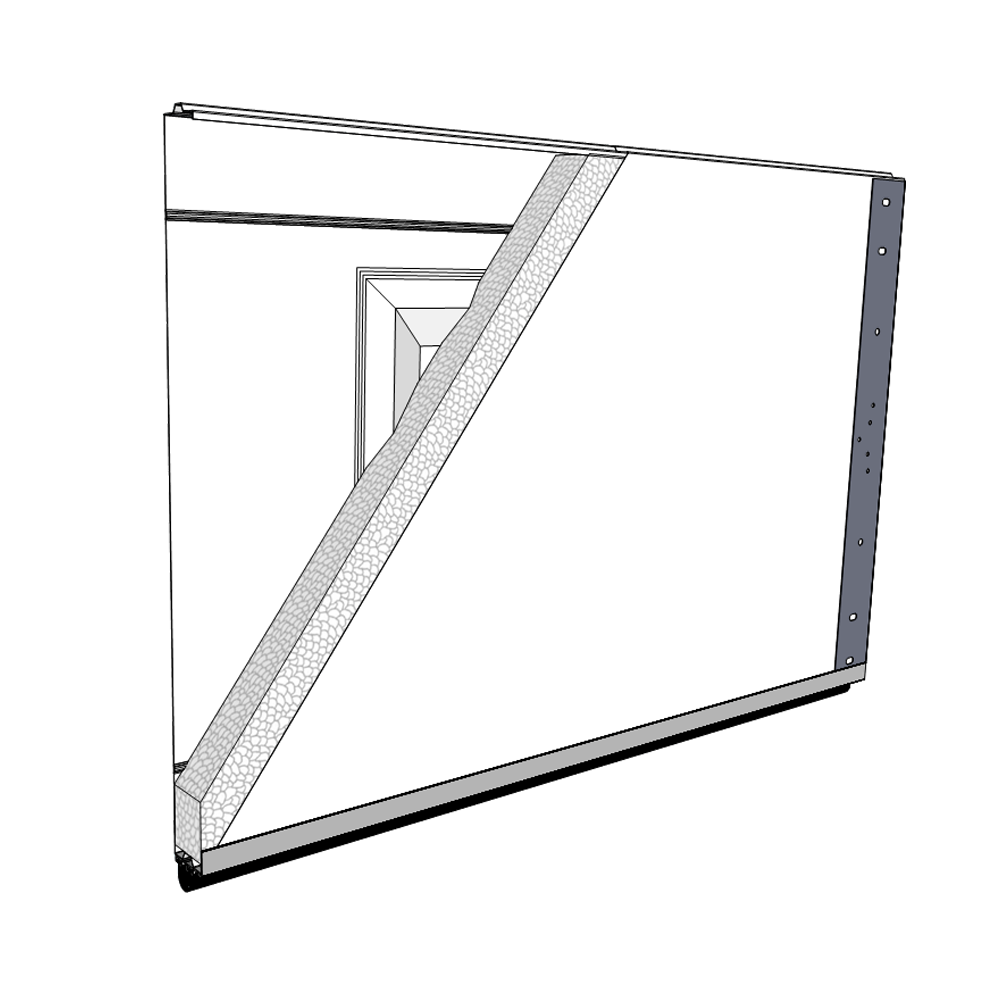

Sandwich type construction with polystyrene insulation pressure bonded between two sheets of hot dipped galvanized steel enhances your home's energy savings, makes your door operation quieter, and reduces exterior noise in your garage.
Environmentally friendly insulation that will not degrade with vibration or time.
Bi-directional wood grain pattern gives the appearance of traditional wood doors. Available in Oak, Walnut, Driftwood, and Light Cypress woodtone finishes.
The doorLink 3630 offers the most extensive color selection in the doorLink carriage house lineup — twelve total options. Eight prefinished pebble grain colors cover all standard residential palettes, while four bi-directional woodtone finishes deliver the appearance of traditional wood doors with none of the upkeep. Colors may vary from actual product.
doorLink’s bi-directional wood grain pattern creates an authentic wood appearance with consistent grain detail in both directions — delivering the look of traditional wood carriage doors with the durability and low maintenance of steel.
*Colors may vary from actual product. Physical samples available through DOORTEC — request before finalizing your selection.
The doorLink 3630 offers six carriage-style window insert options and six glass types. Not all glazing options may be available from all distributors. No glazing available on 18” sections.
*Not all window inserts align with panel stamp design.
*Not all glazing options may be available from all distributors. Contact DOORTEC to confirm availability for your order.
The doorLink 3630 Grooved Panel is available in a full range of standard widths from single-car to oversized double-car openings, and six standard heights.
| Available Widths | |
| Single Car | 8’ • 9’ • 10’ |
| Double Car | 12’ • 14’ • 15’ • 16’ • 17’ • 18’ |
| Oversized | 20’ • 22’ |
| Available Heights | |
| Standard Heights | 6’6” • 6’9” • 7’0” • 7’6” • 7’9” • 8’0” |
| Custom Heights | Additional heights available — Contact DOORTEC for details |
Not all width and height combinations may be available in all configurations. DOORTEC will verify exact sizing options during your free quote consultation.
DOORTEC has completed over 140,000 garage door installations across the OKC metro over 60 years. Our factory-trained technicians handle every doorLink 3630 installation from precise measurement through final safety checkout.
| What’s Included with Every DOORTEC Installation | |
| Pre-Install Consultation | Opening measured, color/woodtone and window options selected, sizing confirmed before order is placed |
| Old Door Removal | Existing door and all hardware removed and hauled away at no additional charge |
| Full Hardware Install | Springs, cables, tracks, rollers, hinges, and weatherstripping installed to doorLink factory specifications |
| Balance & Safety Check | Full operational test before we leave your property |
| Service Areas | |
| OKC Metro | Oklahoma City • Edmond • Norman • Moore • Yukon • Midwest City |
| Extended Areas | Guthrie • El Reno • Tulsa |
| Additional Resources | |
| Warranty Info | View DOORTEC & doorLink Warranty Information |

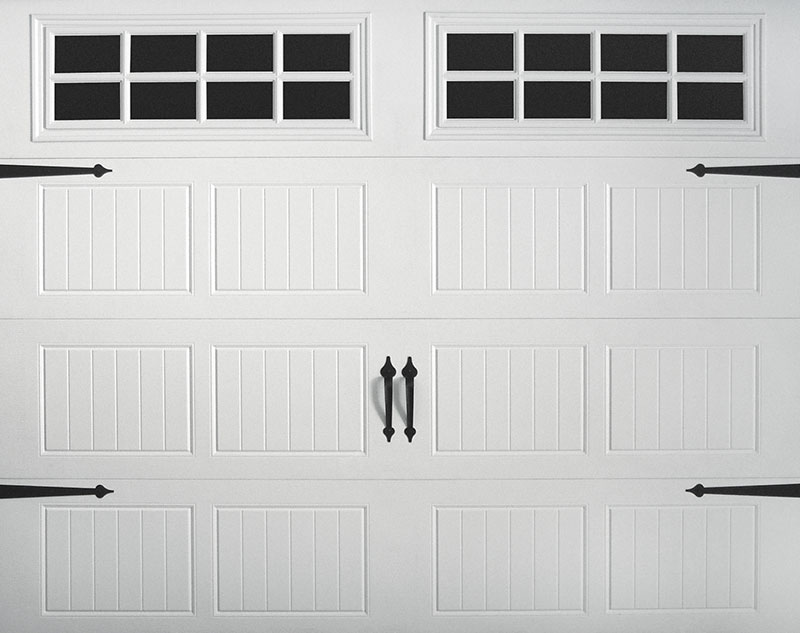

The doorLink 3630 Grooved Panel brings together carriage house aesthetics and the structural integrity of 26-gauge 3-layer sandwich construction. Where the doorLink 430/431 uses 24-gauge 2-sided steel, the 3630 steps up to 26-gauge with insulation pressure bonded between both steel skins for R-10.25 performance — a standard feature, not an upgrade. The pebble grain embossed steel interior backskin and 20-gauge full vertical hinge plates are the same premium construction details found on the 3610 raised panel, bringing that quality level to a carriage house profile. DOORTEC is an authorized doorLink dealer serving Oklahoma City, Edmond, Norman, Moore, Yukon, and Midwest City for over 60 years. Call (405) 720-7107 for a free installation quote.
The 3630’s twelve-color lineup is the most complete in the doorLink carriage range. Eight standard pebble grain colors — White, Almond, Desert Tan, Sandstone, Brown, Gray, Charcoal, and Black — cover every traditional residential palette. Four bi-directional woodtone finishes — Oak, Walnut, Driftwood, and Light Cypress — use doorLink’s directional wood grain pattern to create the appearance of real wood carriage doors with none of the maintenance demands. Pair any color with one of six carriage-style window inserts and six glass options for a fully customized result. DOORTEC installs the doorLink 3630 across the entire OKC metro service area including Tulsa, Guthrie, El Reno, Midwest City, and Yukon. Contact us today for a free no-obligation quote.
