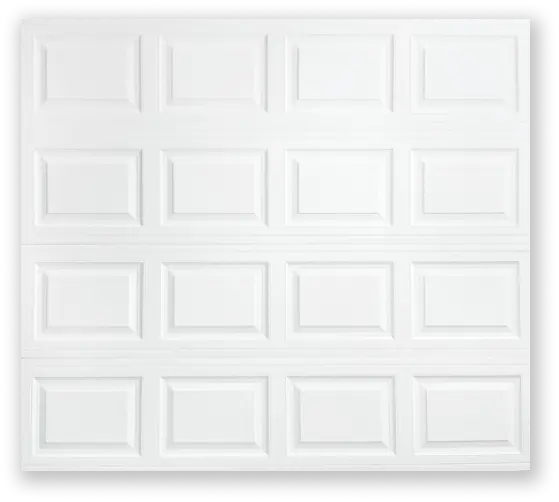

Classic curb appeal, proven performance. The doorLink 3610 Traditional Raised Panel is built from 26-gauge hot dipped galvanized steel in a 2-inch thick 3-layer sandwich construction, with R-10.25 CFC-free polystyrene insulation pressure bonded between the steel skins. Deep woodgrain texture, a pebble grain embossed steel interior backskin, 20-gauge full vertical hinge plates, and eight woodgrain color options make it one of the most complete traditional raised panel doors DOORTEC installs across the OKC metro.
All specification data sourced directly from doorLink Manufacturing documentation for the Model 3610 Traditional Raised Panel.
| Construction | |
| Model | doorLink Manufacturing — Model 3610 |
| Panel Style | Traditional Raised Panel — deep woodgrain texture |
| Steel Gauge | 26 Gauge Hot Dipped Galvanized Steel |
| Section Construction | 2” Thick — 3-Layer Sandwich Panel |
| Hinge Plates | 20 gauge full vertical steel hinge plates — run the full height of each section at all hinge locations |
| Meeting Rails | Tongue and groove meeting rails |
| Interior Skin | Pebble grain embossed steel backskin |
| Insulation | |
| Insulation Type | CFC free expanded polystyrene — pressure bonded between two steel skins |
| R-Value | R-10.25 |
| Finish & Paint | |
| Paint System | 1.0 mil two-coat prefinished paint system |
| Primer | 0.25 mil rust inhibiting primer |
| Topcoat | 0.75 mil exterior topcoat — resists fading and chalking |
| Texture | Deep woodgrain texture |
| Color Options | 8 — White · Almond · Desert Tan · Sandstone · Brown · Gray · Charcoal · Black |
| Weathersealing | |
| Bottom Seal | Replaceable U-Type vinyl bottom weatherstrip |
| Retainer | Extruded aluminum weatherstrip retainer |
| Windows | |

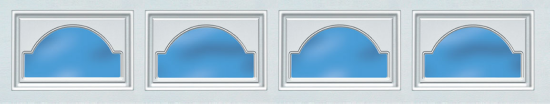

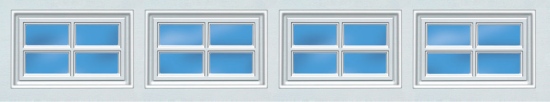

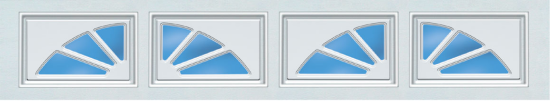

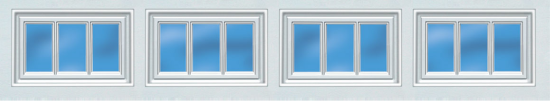

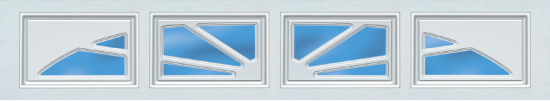

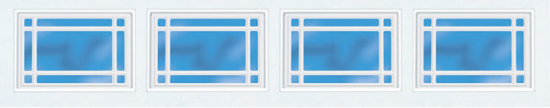

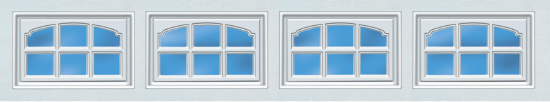

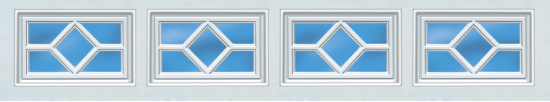

| Window Options | 8 insert styles — #306 Sherwood · #305 Williamsburg · #591 Cascade · #393 Cathedral · #397 Stockton · #597 Stockbridge · #320 Waterton · #897 Prairie |
| Glass Options | 6 — Clear · Satin · Bronze · Gray · Gray Lite 31 · Pattern 62 |
| Window Disclaimer | Not all glazing options may be available from all distributors. |
| Sizes Available | |
| Widths | 8’ · 9’ · 10’ · 12’ · 14’ · 15’ · 16’ · 17’ · 18’ · 20’ · 22’ · 24’ |
| Heights | 6’6” · 6’9” · 7’0” · 7’6” · 7’9” · 8’0” |
| Additional Heights | Contact DOORTEC for details |
All feature data sourced directly from doorLink Manufacturing documentation for Model 3610.
Hot dipped galvanized steel construction with hemmed inside return rail provides superior strength and durability.
Includes 0.25 mil rust inhibiting primer and 0.75 mil exterior topcoat that resists fading and chalking, while providing consistent color from panel to panel and more durability.
Galvanized steel hinge plates run the full height of each section at all hinge locations to facilitate the attachment of hinges, handles, struts, and step plates.
For superior strength and better sealing against wind, rain, and snow.
Provides added strength while securing replaceable U-type bottom astragal weatherstrip to help keep the elements out.

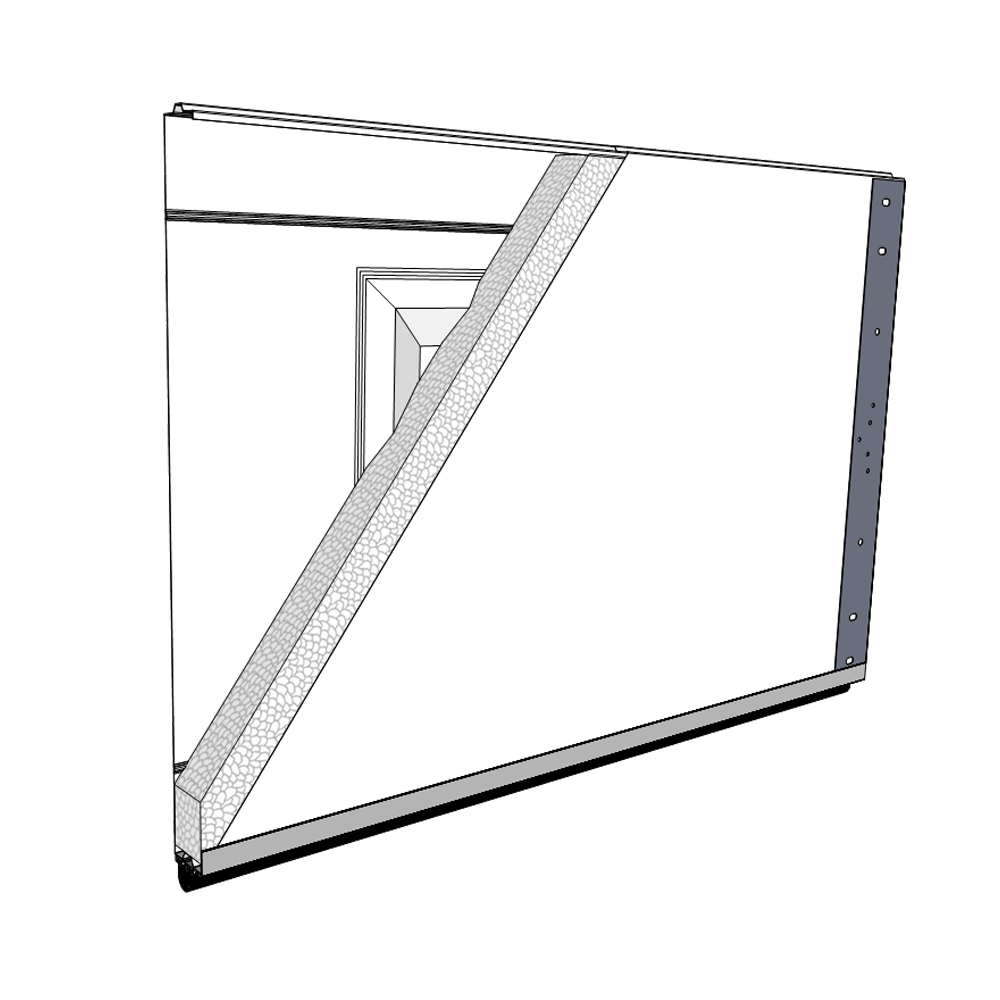

Sandwich type construction with polystyrene insulation pressure bonded between two sheets of hot dipped galvanized steel enhances your home's energy savings, makes your door operation quieter, and reduces exterior noise in your garage.
Environmentally friendly insulation that will not degrade with vibration or time.
Eight prefinished woodgrain colors are available on the doorLink 3610. All colors feature doorLink's deep woodgrain texture and 1.0 mil two-coat paint system with rust inhibiting primer for long-lasting color and corrosion resistance. Colors may vary from actual product.
*Colors may vary from actual product. Physical samples available through DOORTEC — request before finalizing your selection.
The doorLink 3610 offers eight traditional window insert styles and six glass types. Not all glazing options may be available from all distributors.
*Not all glazing options may be available from all distributors. Contact DOORTEC to confirm availability for your order.
The doorLink 3610 is available in a comprehensive range of widths — including up to 24 feet for extra-large openings — and six standard heights, with additional heights available through DOORTEC.
| Available Widths | |
| Single Car | 8’ • 9’ |
| Single Car Wide | 10’ |
| Double Car | 12’ • 14’ • 15’ • 16’ • 17’ • 18’ |
| Oversized | 20’ • 22’ • 24’ |
| Available Heights | |
| Standard Heights | 6’6” • 6’9” • 7’0” • 7’6” • 7’9” • 8’0” |
| Custom Heights | Additional heights available — Contact DOORTEC for details |
Not all width and height combinations may be available in all configurations. DOORTEC will verify exact sizing options during your free quote consultation.
DOORTEC has completed over 140,000 garage door installations across the OKC metro over 60 years. Our factory-trained technicians handle every doorLink 3610 installation from precise measurement through final safety checkout.
| What’s Included with Every DOORTEC Installation | |
| Pre-Install Consultation | Opening measured, color and window options selected, sizing confirmed before order is placed |
| Old Door Removal | Existing door and all hardware removed and hauled away at no additional charge |
| Full Hardware Install | Springs, cables, tracks, rollers, hinges, and weatherstripping installed to doorLink factory specifications |
| Balance & Safety Check | Full operational test of travel limits, auto-reverse, and safety sensors before we leave |
| Service Areas | |
| OKC Metro | Oklahoma City • Edmond • Norman • Moore • Yukon • Midwest City |
| Extended Areas | Guthrie • El Reno • Tulsa |
| Additional Resources | |
| Warranty Info | View DOORTEC & doorLink Warranty Information |
The traditional raised panel is the most recognized residential garage door style in the Oklahoma City metro, and the doorLink 3610 is one of the most complete versions available anywhere in the market. Built from 26-gauge hot dipped galvanized steel in a true 3-layer sandwich construction, the 3610 pressure bonds CFC-free polystyrene insulation between the two steel skins for R-10.25 thermal performance — a measurable advantage when Oklahoma summers push past 100°F. The pebble grain embossed steel interior backskin and 20-gauge full vertical hinge plates are premium construction details you won’t find on every raised panel door at this price point. DOORTEC is an authorized doorLink dealer with over 60 years of OKC installation experience. Call (405) 720-7107 for a free quote in Edmond, Norman, Moore, Yukon, or anywhere in the OKC metro.
Where many raised panel doors give you a handful of colors and a few window options, the doorLink 3610 offers eight woodgrain-textured prefinished colors — White, Almond, Desert Tan, Sandstone, Brown, Gray, Charcoal, and Black — plus eight window insert styles from the clean #306 Sherwood to the decorative #393 Cathedral and #897 Prairie. Six glass types are available to fine-tune light transmission and privacy. The 3610 is also one of the few residential models in the doorLink lineup available up to 24 feet wide, covering virtually every residential opening DOORTEC encounters in Midwest City, Guthrie, El Reno, Tulsa, and across the full OKC metro service area. All installations by DOORTEC are performed to doorLink factory specifications with a complete safety checkout before we leave your property.
