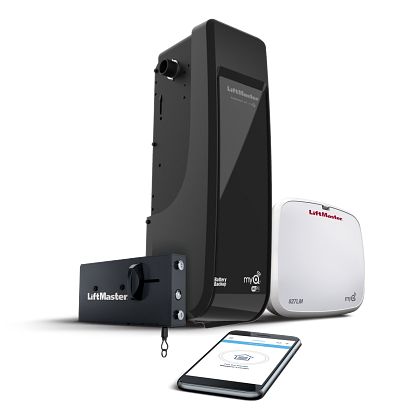

DC Battery Backup Wall Mount Wi-Fi Garage Door Opener — LiftMaster's premium jackshaft opener mounts beside the door to the wall, freeing up every inch of ceiling space. Nearly silent, vibration-free operation for even tall and heavy doors, with built-in battery backup, myQ Wi-Fi, and a lifetime motor warranty. DOORTEC's first recommendation for garages where ceiling space is critical.
Simplified design eliminates the cable tension monitor, making installation cleaner and straightforward for DOORTEC technicians.
Sleek wall-mounted design keeps the ceiling completely open — ideal for car lifts, storage racks, vaulted ceilings, and low-clearance garages.
Battery backup ensures access in the case of power loss — essential for Oklahoma City's ice storms, severe weather, and summer power outages.
Fast, smooth operation — even for tall and heavy doors. Nearly silent and vibration-free thanks to the direct-drive jackshaft design.
Full garage light coverage with remote LED lighting. Supports up to sixteen 827LM remote work lights for complete workshop or garage illumination.
Control and monitor your garage door from anywhere with the free myQ app. Real-time alerts, open/close history, and guest access from your smartphone.
Unlike every chain, belt, or screw drive opener, the 98022 jackshaft mounts directly to the wall beside your garage door — connecting to the torsion bar instead of hanging from the ceiling on a rail.
This means the entire garage ceiling stays completely clear. No rail. No hanging opener head. Just open space — perfect for car lifts, full ceiling storage systems, overhead loft conversions, or any garage where ceiling clearance is a priority.

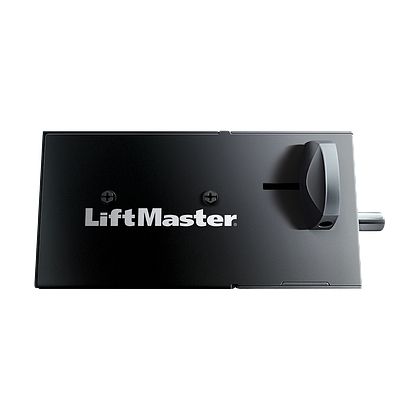

The 98022 is the only residential opener we carry that ships with an automatic garage door lock (841LM) included in the box. The 841LM automatically deadbolts the door every time it closes — providing a level of physical security no chain or belt drive opener can match.
Combined with Posilock electronic locking and myQ real-time monitoring, the 98022 is the most secure garage door opener system we install. Every 841LM install is handled by DOORTEC — correctly aligned and tested before we leave.
All specifications sourced directly from LiftMaster's official product documentation for the 98022 Elite Series.
| Motor & Drive | |
| Motor Power | ¾ HP DC |
| AC / DC | DC |
| Drive Type | Jackshaft — mounts directly to torsion bar beside the door |
| Operation | Fast, smooth, nearly silent and vibration-free — works for tall and heavy doors |
| Battery Backup | Yes — built-in battery backup (485LM battery included) |
| Timer To Close | Yes — programmable automatic closing timer |
| Lighting | |
| Integrated Lighting | 1,000 Lumens — remote LED lighting |
| Remote Work Lights | Supports up to sixteen 827LM remote work lights (sold separately) |
| Smart Connectivity | |
| Wi-Fi | Yes — built-in myQ Wi-Fi, no external hub required |
| Smartphone Control | Yes — myQ app (iOS and Android) |
| HomeLink Compatible | Yes |
| Security | |
| Automatic Door Lock | Yes — 841LM Automatic Garage Door Lock included |
| Remote Code Format | Security+ 3.0 — anti-burglary rolling code encryption |
| Warranty | |
| Motor Warranty | Lifetime |
| Parts Warranty | 5 years |
| Accessory Warranty | 1 year |
The 98022 ships as a complete system. DOORTEC installs all components, performs safety testing, and configures every feature before leaving your home.
DOORTEC installs the complete 98022 system and confirms every component is working correctly before leaving. Call (405) 720-7107 to schedule.
The 98022 includes LiftMaster's built-in myQ platform — Wi-Fi connected from the factory, no external bridge or hub required.
| myQ Platform | |
| myQ App | Free iOS and Android — open, close, and monitor from anywhere |
| Real-Time Alerts | Notifications when door opens, closes, or is left open |
| Timer-to-Close | Schedule the door to automatically close at set intervals — never accidentally leave the garage open again |
| Guest Access | Share timed or permanent access without codes or physical keys |
| Open/Close History | Full activity log in the myQ app |
| Integrations | |
| HomeLink | Compatible with all HomeLink-equipped vehicles |
| Amazon Key | Contact DOORTEC for details |
| Security | |
| 841LM Auto-Lock | Included — automatically deadbolts the door every time it closes |
| Remote Code Format | Security+ 3.0 — rolling code encryption, billions of combinations |
| Battery Backup Monitoring | myQ app displays battery backup status and health |
The ¾ HP DC motor carries a full lifetime limited warranty — the strongest motor coverage LiftMaster offers.
All mechanical and electronic parts covered for 5 years. Backed by DOORTEC's installation workmanship guarantee.
Included accessories — 841LM, 485LM, 880LMW, L993M — are covered by a 1-year accessory warranty.
Official LiftMaster documentation sourced directly from LiftMaster's product library for the 98022 Elite Series.
OEM LiftMaster replacement parts for the 98022 Elite Series. Contact DOORTEC at (405) 720-7107 for parts availability and service — we stock the most common RJO components.
| 041DJ003MC | Receiver Logic Board, DC, WiFi, RJO |
| 041B8861 | Travel Module with Wire Harness Kit |
| 041C0296 | Transformer, 12V, RJO |
| 041D1624-2 | Motor, DC, 12V, RJO |
| 041D0190 | Power Cord, RJO |
| 041-0407-000 | Cover, RJO |
| 041-0408-000 | Battery/Logic Board Cover, RJO |
| 041-0365-000 | Sensor Eyes and Brackets, 1997 to Current |
| 041-0136 | Safety Sensor Kit, 2021 to Present |
| 041-0155-000 | Safety Sensor Brackets, 2021 to Present |
| 041B6228 | Mounting Bracket Kit, RJO |
| 041D8615 | Door Shaft Collar, RJO |
| G485LM | Garage Door Opener Battery (12V) |
| 041A4582 | Rope and Handle Kit, RJO |
| 041B4494-1 | Bell Wire Kit |
For parts ordering or service on your 98022, call DOORTEC at (405) 720-7107. We service all LiftMaster openers throughout Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and Tulsa.
The 98022 jackshaft installation is significantly different from a standard overhead opener and requires assessment before scheduling. DOORTEC has been installing jackshaft openers throughout Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and Tulsa for over 60 years.
| Pre-Installation Assessment | |
| Torsion Spring Requirement | The 98022 requires a torsion spring system. If your door uses extension springs, we assess whether conversion is needed. Call (405) 720-7107 to discuss before scheduling. |
| Door Weight & Size | We verify the door weight and height are within the 98022's operating range — it handles most standard residential doors including tall and heavy models. |
| Wall Clearance | We verify adequate wall space beside the door torsion bar for mounting the 98022 unit correctly. |
| What's Included With DOORTEC Installation | |
| Opener Head Mount | 98022 head unit mounted to wall, connected to torsion bar shaft — no ceiling rail installed. |

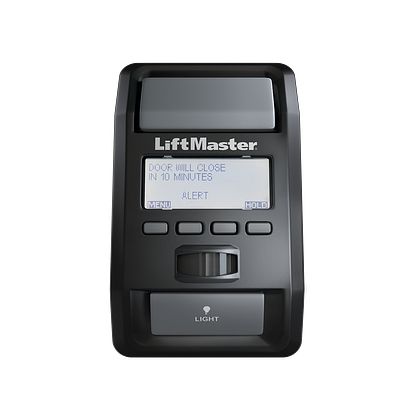

| Complete Kit Install | 485LM battery, 841LM automatic lock, 880LMW smart panel, L993M remote, and safety sensors — all installed and configured. |
| myQ Setup | Wi-Fi connected, myQ app configured, Timer-to-Close set per your preference, notifications enabled. |
| Safety Testing | Full auto-reverse, safety sensor, and 841LM auto-lock tests performed before we leave. |
| Homeowner Walkthrough | Full walkthrough of jackshaft-specific features — auto-lock, Timer-to-Close, battery backup, and myQ app. |
| DOORTEC Workmanship Guarantee | If anything isn't right after installation, we return at no charge to make it right. |
The LiftMaster 98022 is the right opener when ceiling space matters. Instead of hanging from a rail mounted to the ceiling like every chain, belt, or screw drive opener, the 98022 jackshaft mounts beside the garage door directly to the torsion bar — leaving the entire ceiling completely open. DOORTEC recommends the 98022 for garages with car lifts, full ceiling storage systems, car collectors with stacked vehicles, workshop garages with overhead equipment, or any home with low ceiling clearance that a standard opener rail can't navigate.
The 98022 is also LiftMaster's quietest residential opener — no chain, no belt, no rail vibration. The direct-drive jackshaft mechanism turns the door's own torsion bar, eliminating the primary sources of overhead opener noise. For bedrooms directly above the garage, the difference is immediately noticeable. Call DOORTEC at (405) 720-7107 to schedule an assessment for your Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, or Tulsa home.
The 98022 has one installation requirement that sets it apart from other openers: it requires a torsion spring system. If your current door uses torsion springs (the horizontal bar above the door), the 98022 installs cleanly. If your door uses extension springs (the coils that run along the horizontal tracks), we assess whether a conversion is the right approach for your garage before scheduling installation.
The included 841LM automatic door lock is exclusive to the 98022 in our opener lineup — it deadbolts the door every time it closes, adding a level of physical security no chain or belt drive opener provides. Combined with battery backup, Timer-to-Close, and built-in myQ Wi-Fi, the 98022 is the most complete residential opener system we carry. Call DOORTEC at (405) 720-7107 to discuss whether the 98022 is the right fit for your garage — our team has been answering that question for OKC homeowners for over 60 years.
