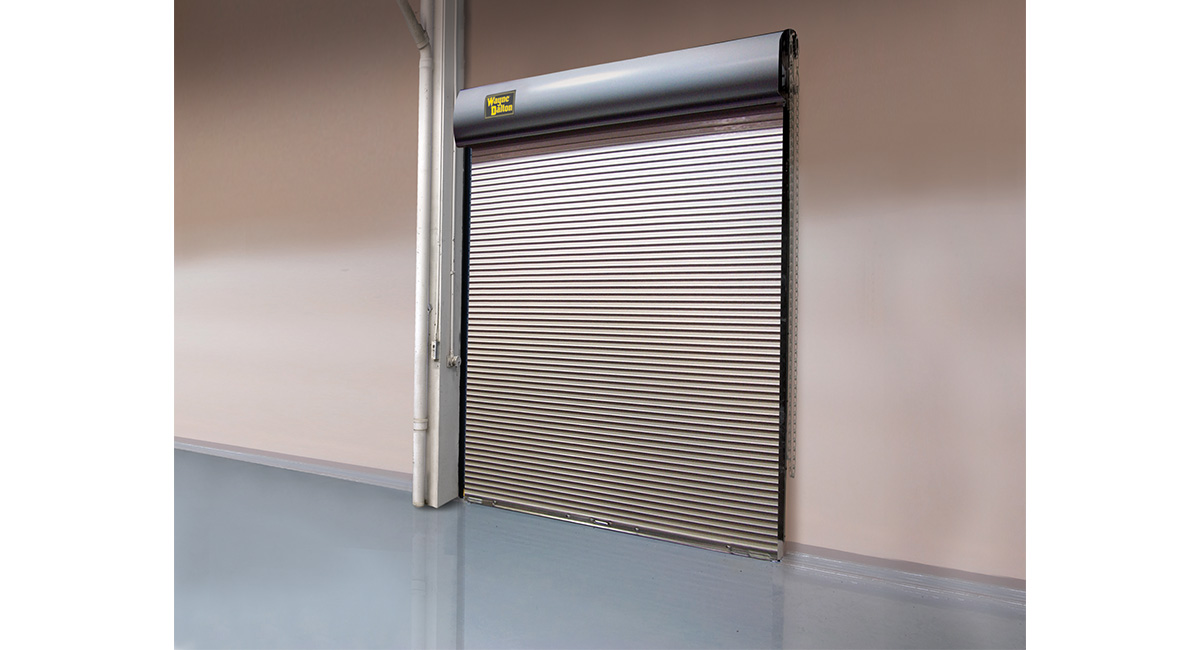

All specifications sourced from Wayne Dalton's official Model 926 product documentation. The 926 is Wayne Dalton's medium-duty rolling service door, offering a heavier slat and bottom bar construction than the standard Model 800/900 series.
| Construction | |
| Slat Profile | #2 — 2" curved slat · #17 — 2" flat slat — both provide natural watershed to reduce corrosion |
| Steel Gauge | Up to 20-gauge steel |
| Stainless Steel | 20-gauge or 22-gauge stainless steel |
| Aluminum | 18-gauge aluminum |
| Bottom Bar | Three-angle construction — galvanized steel, stainless steel, aluminum, or hot-dipped galvanized (structural steel only) |
| Insulation | Non-insulated standard — contact DOORTEC for insulated options |
| Sizing | |
| Maximum Width | Contact DOORTEC for specific sizing — varies by slat profile, material, and gauge |
| Maximum Height | Contact DOORTEC for specific sizing — varies by slat profile, material, and gauge |
| Wind Load | WindSafe® wind load options available — internally approved wind load options only for Models 900 and 926** |
| Finish | |
| Standard Colors | White, Beige, Gray, Brown (polyester factory finish) |
| Powder Coat Options | Approximately 200 RAL powder coat colors available |
| Warranty | |
| Coverage | 24-Month Limited Warranty on all product parts and components |
**Models 900 and 926 are available with internally approved wind load options only. Consult DOORTEC for local code requirements.
The Model 926 is Wayne Dalton's medium-duty entry in the rolling service door line — a step up in curtain construction from the standard Model 800 series, designed for openings that see heavier use or require greater structural depth in the slat profile.
The Model 926 is suited for facilities with heavier operational demands than the standard Model 800 — wider openings, higher forklift traffic, or environments where the extra structural depth of the 2" slat profile delivers a meaningful advantage.
The Model 926 is configured to your application at time of order. Contact DOORTEC to discuss the right slat profile, gauge, material, and bottom bar specification for your facility.
DOORTEC installs the Wayne Dalton Model 926 throughout Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and Tulsa. Our factory-trained commercial technicians handle the full scope — site assessment, specification, installation, and commissioning.
| DOORTEC Commercial Installation Process | |
| Site Assessment | We assess the opening dimensions, header clearance, structural mounting points, and operational requirements to specify the correct 926 configuration. |
| Specification | We specify slat profile, gauge, material, bottom bar type, locking, wind load option, finish, and operator based on your facility's duty cycle and environment. |
| Installation | Factory-trained technicians install to Wayne Dalton specifications — guides, barrel assembly, curtain, three-angle bottom bar, and operator. |
| Commissioning | Full operator programming, travel limits, safety device testing, and operational walk-through with your team before sign-off. |
| Service Coverage | Oklahoma City · Edmond · Norman · Moore · Yukon · Midwest City · Guthrie · El Reno · Tulsa |
The Wayne Dalton Model 926 medium-duty rolling service door is DOORTEC's recommendation for Oklahoma City facilities with larger openings, heavier forklift traffic, or demanding physical environments where the standard Model 800 curtain depth is insufficient. The 2" slat profile and three-angle bottom bar provide measurably more structural rigidity and bottom bar durability than the standard series — advantages that matter in high-cycle warehouse and manufacturing environments.
DOORTEC installs the Model 926 throughout Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and across the OKC metro. For stainless steel requirements — food processing, pharmaceutical, or corrosive chemical environments — the 926 in 20 or 22-gauge stainless is a proven solution. Call (405) 720-7107 for a free commercial site assessment and quote.
DOORTEC's Tulsa location serves the greater Tulsa metro with the same Wayne Dalton commercial door lineup and installation capability as our Oklahoma City operation. The Model 926 is available for new Tulsa warehouse installations, facility expansions, and replacement of aging commercial rolling doors throughout the Tulsa area.
Beyond installation, DOORTEC's commercial service team provides repair and maintenance on Wayne Dalton rolling steel doors for both Oklahoma City and Tulsa customers. We stock parts for the doors we install and provide fast commercial response to minimize downtime when a door failure affects your operation. Contact us online at doortec.com or call (405) 720-7107 to schedule a site visit.
