All specifications sourced from Wayne Dalton's official FireStar® Model 700 product documentation. Contact DOORTEC at (405) 720-7107 for sizing, slat profile, and configuration details.
| Fire Rating & Listings | |
| UL Listing | Underwriters Laboratories listed |
| Factory Mutual | Factory Mutual approved |
| NFPA Standard | Conforms to NFPA Standard 80 |
| Insulation | |
| Insulation | Non-insulated — standard single-layer steel curtain construction |
| Release Mechanism | |
| FireStar® Design | Patented planetary gear drop mechanism — disconnects operator and drops door in the event of fire |
| Auto-Reset | Standard — drop-test and reset at any time by anyone, without tools |
| Non-Tension Release | Simply open the door to reset — no spring tension reset, no cable rerouting required |
| Cycle Life | Factory-tested and approved for minimum 20,000 cycles |
| Max Opening | FireStar release mechanism standard on doors up to 24' x 24' (324 sq ft)* |
| Slat Profiles | |
| Profile No. 2 | Curved-faced single crown slat — up to 20-gauge steel or up to 20-gauge stainless; pitch 1.9" |
| Profile No. 4 | Curved-faced single crown slat — up to 18-gauge steel or up to 20-gauge stainless; pitch 2.8" |
| Profile No. 14 | Flat-faced slat — up to 18-gauge steel or up to 18-gauge stainless; pitch 2.45" |
| Profile No. 17 | Flat-faced slat — up to 20-gauge steel or up to 20-gauge stainless; pitch 1.6" |
| Construction | |
| Bottom Bar | Two equal angles, 0.121" min thickness |
| Brackets | Steel plates with permanently sealed ball bearings — enclose coil ends, support counterbalance pipe |
| Counterbalance | Helical springs, oil-tempered torsion type; 20,000-cycle rated |
| Hood | Min. 24-gauge galvanized or stainless steel — flanged top and bottom |
| Mounting | |
| Mounting Options | Structural drive · Drywall over wood stud jamb · Drywall over 16-gauge steel stud jamb |
| Wind Load | |
| Wind Load Options | WindSafe® wind load reinforcement available · FBC HVHZ certified up to ±55 psf |
| Finish | |
| Standard Colors | Four standard polyester finish colors |
| Powder Coat Options | Approximately 200 powder coat options available |
| Warranty | |
| Coverage | 24-Month Limited Warranty on all product parts and components |
*Maximum height and width are independent of each other and may vary based on slat profile, material, and gauge. FireStar® release standard on doors up to 24' x 24'.

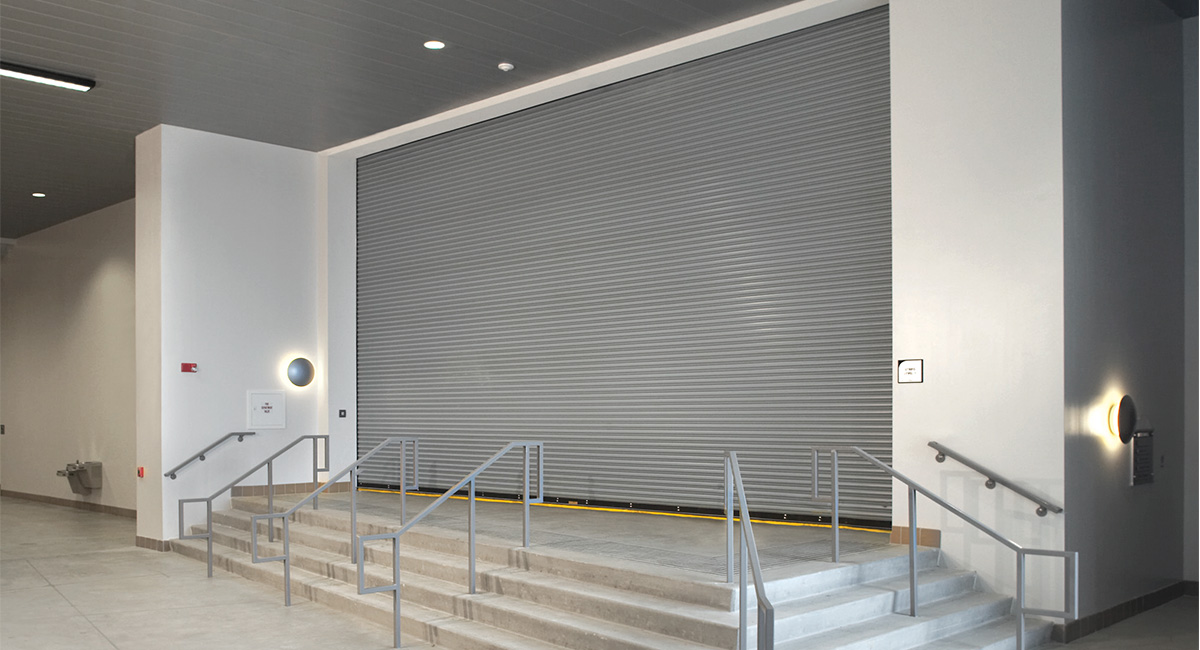

The FireStar® Model 700 is Wayne Dalton's standard rolling steel fire door — delivering UL-listed fire protection with a revolutionary drop mechanism that makes NFPA 80 testing compliance easier, faster, and less costly than any standard fire door design.
The FireStar® Model 700 is the standard specification for commercial openings requiring UL-listed rolling steel fire door protection. Suited to any facility where fire containment at the opening is a code requirement.
The Model 700 is configured to your application. Contact DOORTEC at (405) 720-7107 to discuss the right configuration for your facility and fire protection requirements.
Wayne Dalton backs the Model 700 with manufacturer warranty coverage. DOORTEC's installation workmanship guarantee is provided on top of all manufacturer coverage.
DOORTEC installs the Wayne Dalton Model 700 throughout Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and Tulsa. All fire door installations are completed per NFPA 80 requirements by our factory-trained commercial technicians.
| DOORTEC Commercial Installation Process | |
| Site Assessment | We assess the opening, header clearance, wall construction, and fire door listing requirements to specify the correct model and configuration for your facility. |
| Specification | We specify curtain material, gauge, finish, slat profile, operator type, and any required accessories based on your fire protection and code requirements. |
| Installation | Factory-trained technicians install the complete fire door system to Wayne Dalton specifications — guides, barrel, curtain, bottom bar, release mechanism, and operator. |
| Drop Test | Full drop test verification before sign-off — confirming the release mechanism triggers and the door drops and seats correctly. |
| Code Compliance | All installations are completed per NFPA 80 requirements. DOORTEC provides documentation for the AHJ (Authority Having Jurisdiction) as required. |
| Service Coverage | Oklahoma City · Edmond · Norman · Moore · Yukon · Midwest City · Guthrie · El Reno · Tulsa |
The Wayne Dalton FireStar® 700 is DOORTEC's standard rolling steel fire door specification for Oklahoma City commercial and industrial facilities. The patented planetary gear drop mechanism is a meaningful advance over traditional fire door designs — it allows any staff member to drop-test and reset the door in compliance with NFPA 80 inspection requirements without tools, without resetting spring tension, and without calling a service technician. Over the life of a fire door installation, this capability significantly reduces the cost and friction of mandatory testing compliance.
DOORTEC installs the FireStar® 700 throughout Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and the OKC metro. All installations are completed per NFPA 80 requirements. We provide AHJ documentation as required and offer ongoing fire door inspection and testing services for facilities under ongoing compliance obligations. Call (405) 720-7107 for a free commercial site assessment.
DOORTEC's Tulsa location serves the greater Tulsa metro with the Wayne Dalton FireStar® fire door line. Tulsa's manufacturing, warehouse, and food service sectors include many facilities with code-required fire door installations — where the FireStar® 700's simplified testing procedure provides a long-term operational advantage over standard fire door mechanisms.
For Tulsa and Oklahoma City facilities comparing the FireStar® 700 (non-insulated) against the FireStar® 700C (insulated with mineral wool), the key question is whether thermal separation is also required at the fire-rated opening. DOORTEC's commercial team can assess your specific opening requirements and recommend the correct model. Contact us at (405) 720-7107 or doortec.com.
