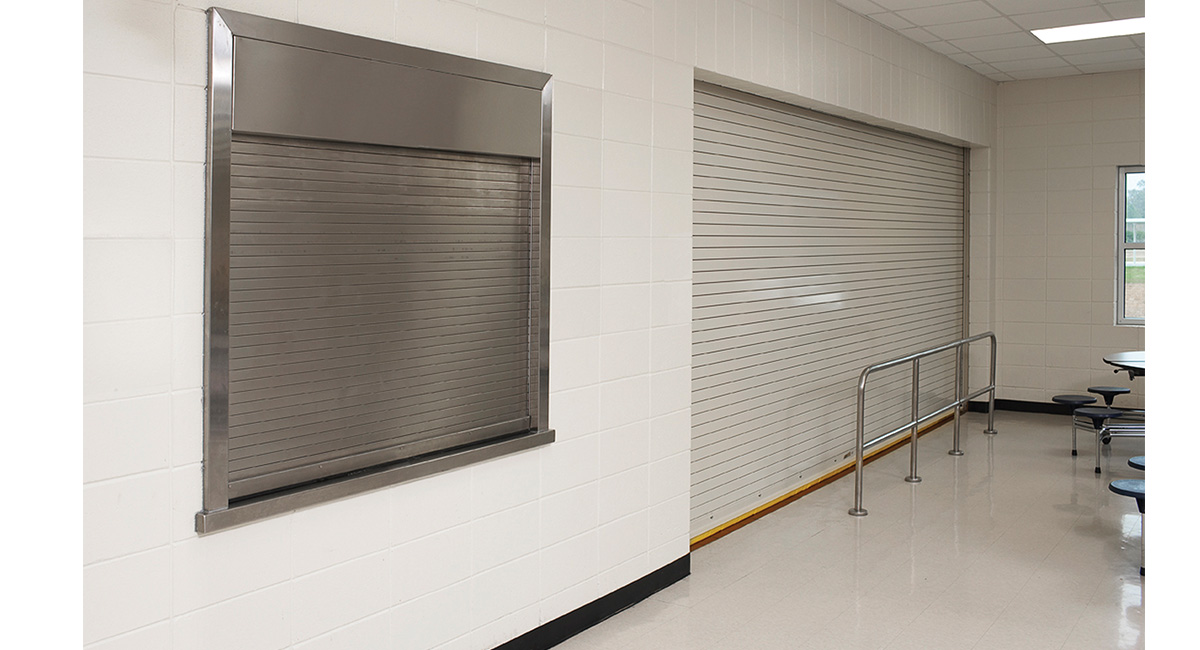

Wayne Dalton Model 560 Integral Frame Counter Shutter

Product Info

All specifications sourced from Wayne Dalton's official Model 560 product documentation. Contact DOORTEC at (405) 720-7107 for sizing and configuration details.

Frame Construction
Frame Material	All-steel construction
Frame Gauge	16-gauge steel frame, fascia, and hood
Sill Gauge	14-gauge steel sills
Assembly	Complete integral frame assembly — frame, fascia, hood, and curtain supplied as a unit
Curtain
Slat Profile	High-quality flat interlocking slats — attractive and tight fit
End-Locks	End-locks on alternate slats — eliminate lateral movement and maintain curtain alignment
Slat Material	Galvanized steel · Stainless steel · Aluminum
Hardware
Bottom Bar	Aluminum, stainless steel, or steel with vinyl astragals
Lift Handles	Aluminum, stainless steel, or steel
Slide Bolts	Aluminum, stainless steel, or steel with vinyl astragals
Finish
Options	Contact DOORTEC for available finish options
Warranty
Coverage	Contact DOORTEC for current warranty terms applicable to Model 560

Wayne Dalton integral frame shutters can be UL fire labeled where required. Contact DOORTEC for details.

The Model 560 is Wayne Dalton's integral frame rolling counter shutter — a complete frame-and-curtain assembly that simplifies specification, installation, and the aesthetics of counter openings by delivering the frame, fascia, hood, and curtain as a single coordinated unit.

All-steel 16-gauge integral frame, fascia, and hood supplied as a complete assembly — eliminates the coordination gap between separately specified curtain and frame components, simplifying both specification and installation

14-gauge steel sills — heavier gauge than the frame components, providing a robust threshold at the counter opening that withstands daily service activity and cleaning

Flat interlocking slat profile provides an attractive, tight fit — cleaner appearance than curved slats when viewed at counter level in food service, retail, and pharmacy environments

End-locks on alternate slats eliminate lateral movement — maintains curtain alignment over years of daily operation, preventing the slat misalignment that allows gaps to form at the guide edges

Bottom bars, lift handles, and slide bolts in aluminum, stainless steel, or steel with vinyl astragals — all visible hardware coordinated in a single material for a uniform finished appearance

Galvanized steel, stainless steel, or aluminum curtain options — stainless for food service and pharmaceutical environments requiring washdown capability and hygiene compliance

Available for fire-rating where required — integral frame shutters can be UL fire labeled when fire-rated protection is needed at the counter opening (see Model 570 for fire-rated version)

The Model 560 is suited for counter-width openings where a complete integral frame assembly is preferred — commercial service windows, retail counters, stadium concessions, cafeteria lines, and pharmacies.

Commercial Retail

Stadium Concessions

Cafeterias

Pharmacies

Food Service

Parts Storage

The Model 560 is configured to your application. Contact DOORTEC at (405) 720-7107 to discuss the right options for your facility.

Curtain Material: Galvanized steel · Stainless steel · Aluminum slats

Frame: All-steel 16-gauge integral frame, fascia, and hood — standard

Sills: 14-gauge steel — standard

Hardware: Bottom bar, lift handles, and slide bolts in aluminum, stainless, or steel

Finish: Contact DOORTEC for available finish options

Fire Rating: UL fire label available on integral frame counter shutters where required — see Model 570 for fire-rated version

Wayne Dalton/Cornell backs the Model 560 with manufacturer warranty coverage. DOORTEC's installation workmanship guarantee is provided on top of all manufacturer coverage.

Contact DOORTEC for Warranty Terms Wayne Dalton provides warranty coverage on the Model 560. Contact DOORTEC at (405) 720-7107 for current warranty terms.

Wayne Dalton manufacturer warranty — contact DOORTEC for current terms

DOORTEC Workmanship Guarantee — any installation issue corrected at no charge

DOORTEC installs the Model 560 throughout Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and Tulsa. Our factory-trained commercial technicians handle the full scope from site assessment through commissioning.

DOORTEC Commercial Installation Process
Site Assessment	We assess the opening, header clearance, wall construction, and security requirements to specify the correct model and configuration for your facility.
Specification	We specify curtain material, pattern, finish, operator type, and any required accessories based on your security and aesthetic requirements.
Installation	Factory-trained technicians install the complete door or grille system to manufacturer specifications.
Commissioning	Full operator programming, travel limits, safety device testing, and operational walk-through before sign-off.
Service Coverage	Oklahoma City · Edmond · Norman · Moore · Yukon · Midwest City · Guthrie · El Reno · Tulsa

Model 560 Installation in Oklahoma City

The Wayne Dalton Model 560 integral frame counter shutter is DOORTEC's specification for Oklahoma City commercial, retail, and food service counter openings where the complete integral frame assembly approach is preferred. The 16-gauge all-steel frame, fascia, and hood supplied as a coordinated unit with the curtain simplifies installation and delivers a consistent, professional finished appearance suited to stadiums, cafeterias, pharmacies, and retail counters throughout the OKC metro. DOORTEC installs the Model 560 throughout Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and the OKC metro.

For Oklahoma City applications requiring stainless steel for health code compliance — hospital or university food service, pharmaceutical dispensing windows, or food preparation areas — the Model 560's stainless steel curtain option provides the washdown-compatible surface required while the integral frame construction maintains a finished, professional appearance. Call (405) 720-7107 for a free site assessment.

Integral Frame Counter Shutters Tulsa & OKC

DOORTEC's Tulsa location serves the greater Tulsa metro with the Wayne Dalton counter shutter line including the Model 560. Tulsa's sports venues, healthcare facilities, and commercial development all include counter-width shutter applications where the Model 560's complete integral assembly simplifies both specification and installation.

For fire-rated counter shutter requirements, DOORTEC specifies the Model 570 integral frame fire counter shutter rather than the standard Model 560. Contact us at (405) 720-7107 or online at doortec.com to discuss your specific opening and fire protection requirements.
