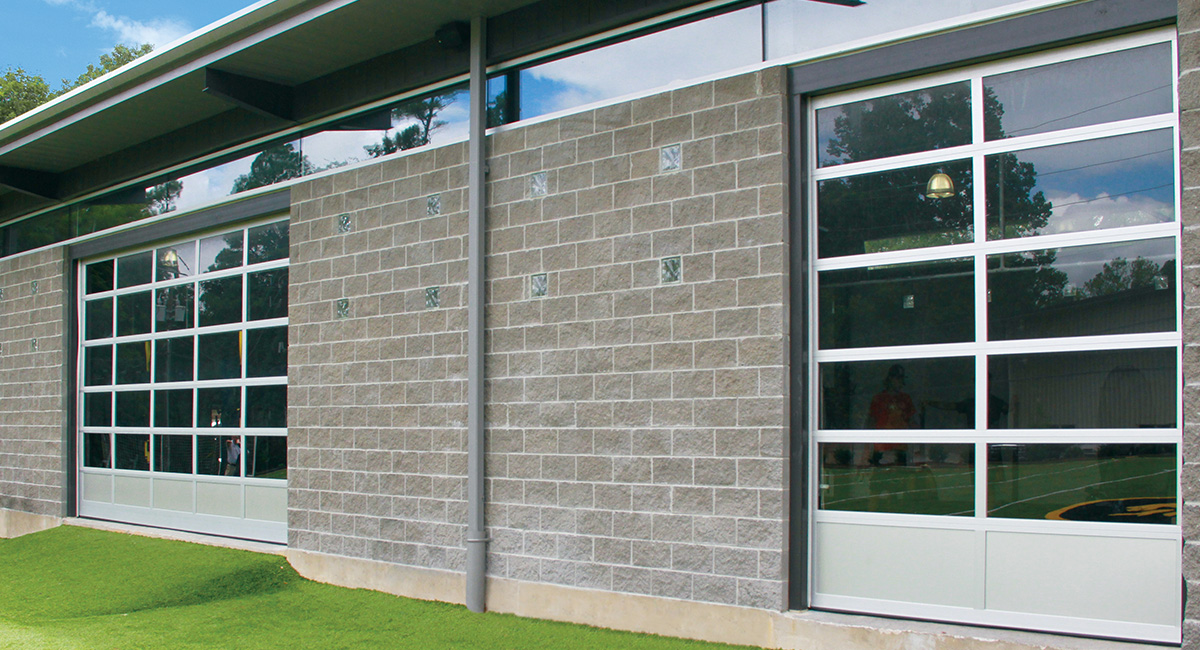

Wayne Dalton Model 452 Glass Aluminum Sectional Door

Product Info

All specifications sourced from Wayne Dalton's official Model 452 product documentation. Model 452 is available in the Central and Eastern regions of the United States. Contact DOORTEC at (405) 720-7107 for sizing and glazing details.

Frame Construction
Door Assembly	Stile and rail assembly of aluminum alloy 6063-T6
Stile & Rail Thickness	1-3/8" thick — joined with self-tapping screws
Top & Bottom Rails	3-1/2" wide; upper intermediate rail 1-5/8"; lower intermediate rail 1-3/8"
End Stiles	Single end stiles 3-1/2" wide; center stile 3" wide; min. wall thickness 0.062"
Thermal Performance
Standard R-Value	Non-insulated standard configuration
Optional R-Value	Up to R-3.25 with optional polyurethane-filled insulated rails and stiles*
Air Infiltration	Meets IECC® requirements — third-party tested below 0.4 cfm/ft²
Glazing
1/8" (3mm) Glass	9 options available
1/4" (6mm) Glass	5 options available
1/2" (13mm) Glass	4 options available
5/8" (16mm) Glass	3 options available
Panel Alternatives	Solid aluminum panels · Polycarbonate · Custom glazing available in lieu of glass
Wind Load & Finish
Wind Load	Up to ±30 psf for openings up to 16'2" wide — 2015 IBC static/non-impact design
Standard Finish	Clear anodized aluminum
Powder Coat Options	Approximately 200 RAL powder coat colors available
Locking & Weather
Locking	Interior slide lock with interlock switch · Keyed lock · Keyed lock with interlock switch
Weather Stripping	Jamb and header seals standard

*Wayne Dalton uses a calculated door section R-value for insulated doors. Model 452 available in Central and Eastern US regions.

The Model 452 is engineered for commercial applications where maximum light transmission, visibility, and a contemporary aluminum aesthetic are the primary requirements alongside commercial-grade structural performance.

Aluminum alloy 6063-T6 stile and rail construction — a structural-grade aluminum alloy providing excellent strength-to-weight ratio, corrosion resistance, and a clean finished appearance suited to high-visibility commercial settings

Optional polyurethane-filled insulated rails and stiles providing up to R-3.25 — improves thermal performance for climate-sensitive showrooms and indoor-outdoor dining environments without sacrificing the full-view aesthetic

Eight glazing thickness and type options across four panel widths — 1/8", 1/4", 1/2", and 5/8" glass in 21 total combinations, giving specifiers precise control over thermal and safety performance

Solid aluminum panel substitution available — sections can be specified as solid aluminum instead of glass for partial privacy, added security, or forklift protection in lower sections

IECC-compliant air infiltration — third-party tested below 0.4 cfm/ft², meeting current energy code requirements for commercial door assemblies in Oklahoma

Wind load up to ±30 psf for openings up to 16'2" wide — compliant with 2015 IBC static/non-impact design requirements

Clear anodized standard finish plus approximately 200 powder coat options — enables precise color coordination with building exterior or corporate color standards

The Model 452 is the right choice for any commercial opening where natural light, visibility, and a premium aluminum aesthetic are primary requirements alongside commercial-grade structural performance.

Auto Dealerships

Showrooms

Restaurants & Bars

Distribution Centers

Car Washes

Service Bays

The Model 452 is configured to your application at time of order. Contact DOORTEC at (405) 720-7107 to discuss which options are right for your facility.

Insulation: Standard non-insulated · Optional polyurethane-filled rails and stiles — up to R-3.25

Glazing Thickness: 1/8" (9 types) · 1/4" (5 types) · 1/2" (4 types) · 5/8" (3 types)

Panel Material: Glass (standard) · Solid aluminum · Polycarbonate · Custom glazing

Finish: Clear anodized standard · Approximately 200 powder coat RAL options

Locking: Interior slide lock · Keyed lock · Keyed lock with interlock switch for automatic operator

Wind Load: Up to ±30 psf for openings up to 16'2" wide — per 2015 IBC engineering analysis

Wayne Dalton backs the Model 452 with manufacturer warranty coverage. DOORTEC's installation workmanship guarantee is provided on top of all manufacturer coverage.

Contact DOORTEC for Warranty Details Wayne Dalton provides warranty coverage on the Model 452. Contact DOORTEC at (405) 720-7107 for current warranty terms applicable to your specific configuration and application.

Wayne Dalton manufacturer warranty on materials and workmanship — contact DOORTEC for current terms

DOORTEC Workmanship Guarantee — any installation issue corrected at no charge

DOORTEC installs the Wayne Dalton Model 452 throughout Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and Tulsa. Our factory-trained commercial technicians handle the full scope — site assessment through commissioning.

DOORTEC Commercial Installation Process
Site Assessment	We measure the opening, assess header clearance, review structural mounting, and confirm all specifications for your facility.
Specification	We specify the correct door configuration, finish, glazing or insulation option, wind load requirement, and operator for your application.
Installation	Factory-trained technicians install the complete door system to Wayne Dalton specifications.
Commissioning	Full operator programming, travel limit adjustment, safety device testing, and walk-through before sign-off.
Service Coverage	Oklahoma City · Edmond · Norman · Moore · Yukon · Midwest City · Guthrie · El Reno · Tulsa

Model 452 Installation in Oklahoma City

The Wayne Dalton Model 452 glass aluminum door is DOORTEC's specification for Oklahoma City businesses that need a commercial-grade overhead door with full visibility and natural light — auto dealerships, restaurant patios, breweries, showrooms, and service facilities where the door is as much an architectural element as a functional enclosure. The 6063-T6 aluminum frame delivers genuine commercial structural performance while the full-view glass sections create an open, inviting environment.

DOORTEC installs the Model 452 throughout Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and the OKC metro. For applications requiring thermal performance, the optional insulated rails and stiles upgrade the door to R-3.25. Call (405) 720-7107 for a free commercial site assessment.

Commercial Glass Aluminum Doors Tulsa & OKC

DOORTEC's Tulsa location at 1835 N 106th E Ave serves the greater Tulsa metro with the Wayne Dalton aluminum glass door line including the Model 452 and 451. Tulsa's growing restaurant and hospitality sector has driven strong demand for full-view commercial doors that allow operators to open spaces to outdoor environments.

For commercial projects where wind load compliance is a specification requirement, the Model 452's ±30 psf wind load rating meets 2015 IBC requirements for openings up to 16'2" wide. Contact DOORTEC at (405) 720-7107 or online at doortec.com to discuss your project.
