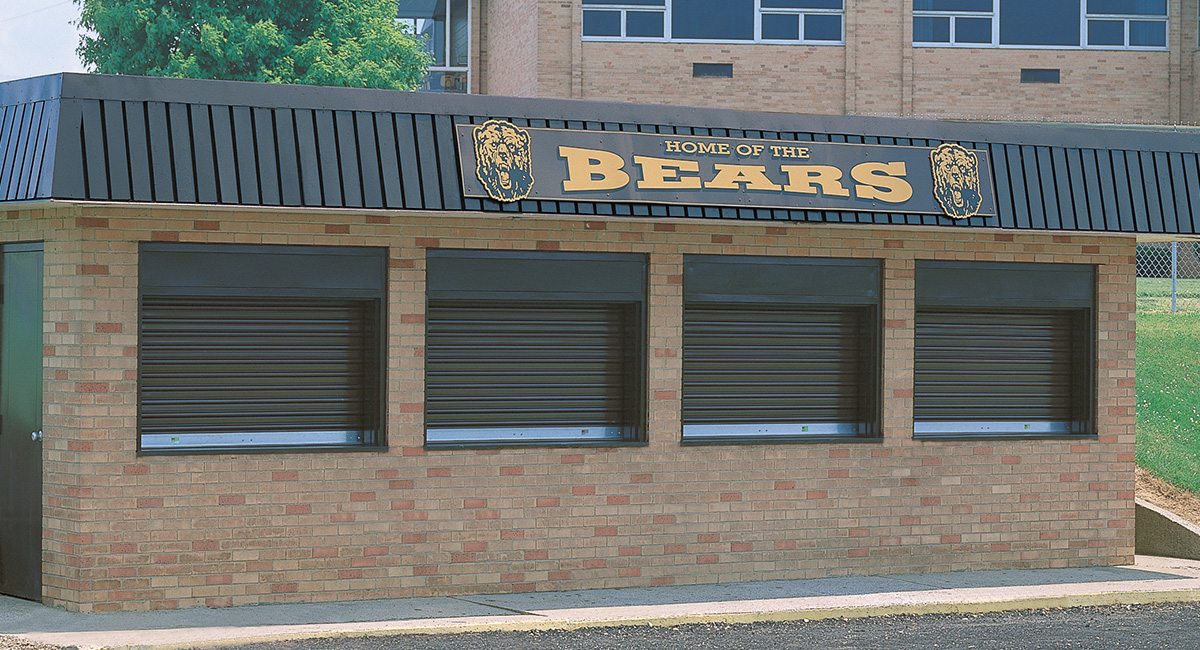

Wayne Dalton DS-50 Roll-Up Counter Shutter

Product Info

All specifications sourced from Wayne Dalton's official DS-50 product documentation. Contact DOORTEC at (405) 720-7107 for sizing and configuration details for your specific counter opening.

Construction
Curtain Material	26-gauge, hot-dipped galvanized corrugated steel — primed then finished with high-gloss silicone polyester paint
Springs	Oil-tempered steel springs for smooth cycle performance
Axle	Steel axle supports the door curtain and counterbalance system
Door Stops	Automatic door stops standard
Anti-Wear Strips	Polypropylene anti-wear strips on continuous guides
Hardware
Bottom Bar	Heavy-duty steel angle, extruded aluminum bottom bar, and replaceable vinyl astragal
Locking	Slide-bolt assemblies — both slide bolts accept padlocks
Sizing
Format	Counter width — for service window and countertop applications
Maximum Dimensions	Contact DOORTEC for specific counter shutter dimensions
Color
Options	Multiple standard colors — contact DOORTEC for current availability
Warranty
Coverage	12-Month Limited Warranty on all product parts and components

Wayne Dalton DS-50. For fire-rated counter openings, DOORTEC specifies FireStar® 540/550 or Model 570. 12-Month Limited Warranty on all product parts and components.

The DS-50 is Wayne Dalton's roll-up counter shutter — a lightweight, economical coiling closure for service windows and counter openings. The corrugated sheet format provides simple, reliable closure at a lower cost than interlocking slat counter shutters.

26-gauge hot-dipped galvanized corrugated steel — appropriate gauge and construction for the lower structural demands of counter-width openings at service windows and food service counters

Oil-tempered steel springs for smooth counter shutter operation — consistent spring performance over the opening's service life, which may involve dozens of daily cycles in active food service environments

Lightweight and compact — the corrugated sheet construction is lighter than interlocking slat counter shutters, making manual lift-up operation easy in counter-width applications

Automatic door stops prevent over-travel — important for counter-level operation where controlling the open position precisely prevents the coil from interfering with overhead equipment or ceiling elements

Slide bolts with padlock capability at both bottom corners — dual locking points provide after-hours security appropriate for counter service windows at food courts, stadiums, and institutional facilities

Replaceable vinyl astragal on bottom bar — maintains the bottom seal over years of operation; can be replaced without replacing the entire bottom bar assembly, reducing long-term maintenance cost

Multiple color options — allows coordination with the surrounding counter and casework finish in food service, retail, and institutional settings

Economical specification for budget-sensitive counter closure applications where fire rating or specialized security are not required

The DS-50 is suited for any counter-width opening where a simple, economical coiling sheet closure is appropriate — food service windows, ticket booths, concession stands, and service counters that don't require the specialized features of fire-rated or high-security counter shutters.

Service Windows

Ticket Booths

Concession Stands

Cafeterias

Food Service Counters

Pass-Through Openings

The Model DS-50 is configured to your application. Contact DOORTEC at (405) 720-7107 to discuss sizing, color, and option selections.

Color: Multiple standard colors — contact DOORTEC for current options

Operation: Manual lift-up standard — motor operator available for motorized counter shutter operation

Locking: Slide bolts with padlock capability standard

Size: Contact DOORTEC for specific counter shutter dimensions

Note: For fire-rated counter openings, DOORTEC specifies the FireStar® 540/550 or Model 570 integral frame fire counter shutter

Wayne Dalton backs the Model DS-50 with a 12-month limited warranty. DOORTEC's installation workmanship guarantee is provided on top of manufacturer coverage.

12-Month Limited Warranty Wayne Dalton provides a 12-month limited warranty on the Model DS-50 covering all product parts and components.

12-Month Limited Warranty on all product parts and components

DOORTEC Workmanship Guarantee — any installation issue corrected at no charge

DOORTEC installs the Wayne Dalton Model DS-50 throughout Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and Tulsa. Our factory-trained technicians handle everything from site assessment through commissioning.

DOORTEC Commercial Installation Process
Site Assessment	We assess the opening, header clearance, wall construction, and operational requirements to specify the correct DS Series model for your facility.
Specification	We specify door model, size, color, locking type, and operator option based on your application requirements.
Installation	Factory-trained technicians install the complete door system — guides, spring assembly, curtain, bottom bar, and operator — to Wayne Dalton specifications.
Commissioning	Full door balance verification, travel adjustment, and operational walk-through before sign-off.
Service Coverage	Oklahoma City · Edmond · Norman · Moore · Yukon · Midwest City · Guthrie · El Reno · Tulsa

DS-50 Installation in Oklahoma City

The Wayne Dalton DS-50 roll-up counter shutter is DOORTEC's economical specification for Oklahoma City service windows, ticket booths, concession stands, and food service counter openings where a simple coiling sheet closure is sufficient and the specialized features of fire-rated counter shutters or interlocking slat models are not required. The DS-50 provides reliable daily closure at a lower cost than steel or aluminum counter shutter products. DOORTEC installs the DS-50 throughout Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and the OKC metro.

For Oklahoma City counter openings requiring fire rating, DOORTEC specifies the FireStar® 540/550 (fire-rated counter shutter) or the Model 570 integral frame fire counter shutter instead of the DS-50 — the DS-50 is not fire-rated. For counter openings where a more finished appearance is required, the Model 500 interlocking slat counter shutter or Model 560 integral frame counter shutter are better specifications. Call (405) 720-7107 to discuss the right product for your specific counter opening.

Counter Shutters Tulsa & OKC

DOORTEC's Tulsa location serves the greater Tulsa metro with the Wayne Dalton DS Series counter shutters including the DS-50. Tulsa's food service, entertainment, and institutional facilities include many counter-width service openings where the DS-50's simple, economical closure is the appropriate specification.

For Tulsa and Oklahoma City projects with multiple service window openings on a budget — school cafeterias, event venue concession buildouts, stadium refreshment counters — DOORTEC can provide multi-unit pricing on the DS-50. Contact us at (405) 720-7107 or doortec.com.
