Built for high-lift and full-lift sectional and rolling doors operating up to 30 cycles per hour. MultiVolt® flexibility, EZ Limit® push-to-set limits, and a built-in Intellicode® receiver make the GCL-H a straightforward specification for commercial hoist applications in Oklahoma City and Tulsa.
All specification data sourced directly from Genie Commercial Line official documentation for the GCL-H Standard-Duty Hoist Operator. Contact DOORTEC at (405) 720-7107 for application-specific configuration guidance.
| Operator | |

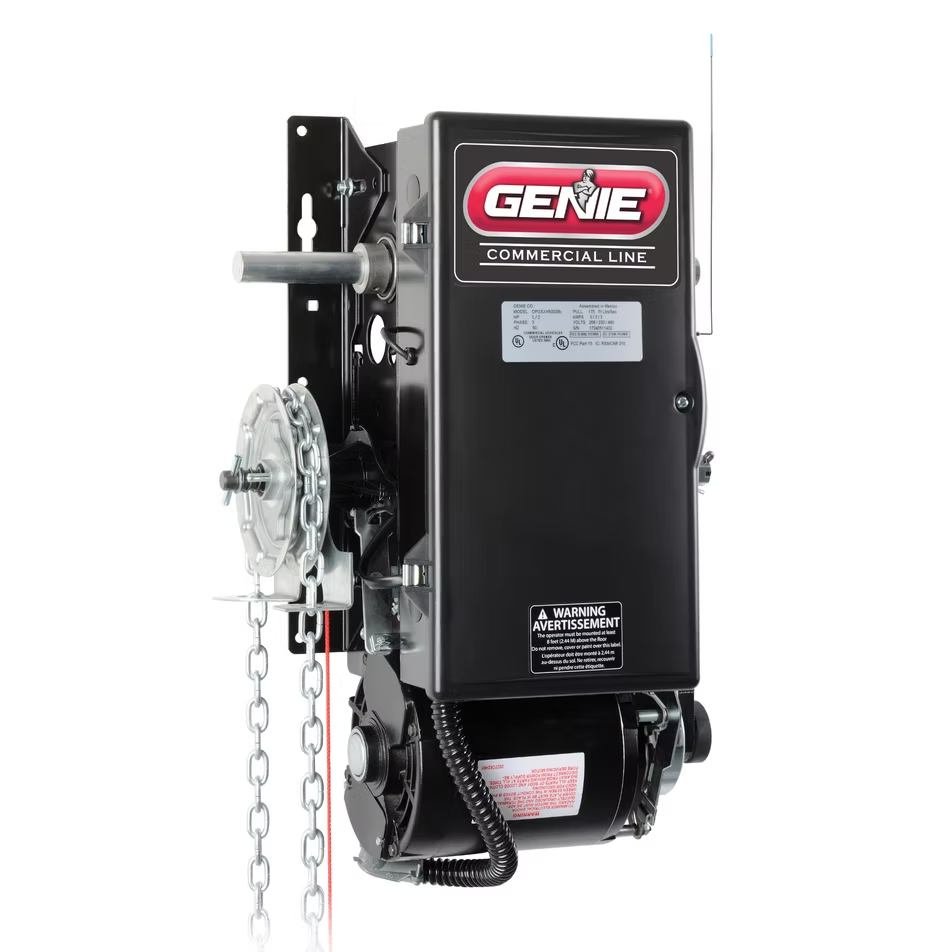

| Model | Genie GCL-H Standard-Duty Hoist Operator |
| Type | Hoist — for high-lift and full-lift sectional and rolling doors |
| Duty Rating | 30 cycles per hour or fewer |
| UL Listing | UL 325 Listed |
| Power & Voltage | |
| MultiVolt® — Single Phase | 115V / 208V / 230V AC (field-selectable) |
| MultiVolt® — Three Phase | 208V / 230V / 460V AC (field-selectable) |
| 575V Models | Available separately |
| Drive System | |
| Primary Drive | TensiBelt® — auto-tensioning poly-V belt; eliminates need to adjust belt tension |
| Limits | EZ Limit® — push-to-set electro-mechanical limits that stay synchronized with door through long-term power loss |
| Controls & Display | |

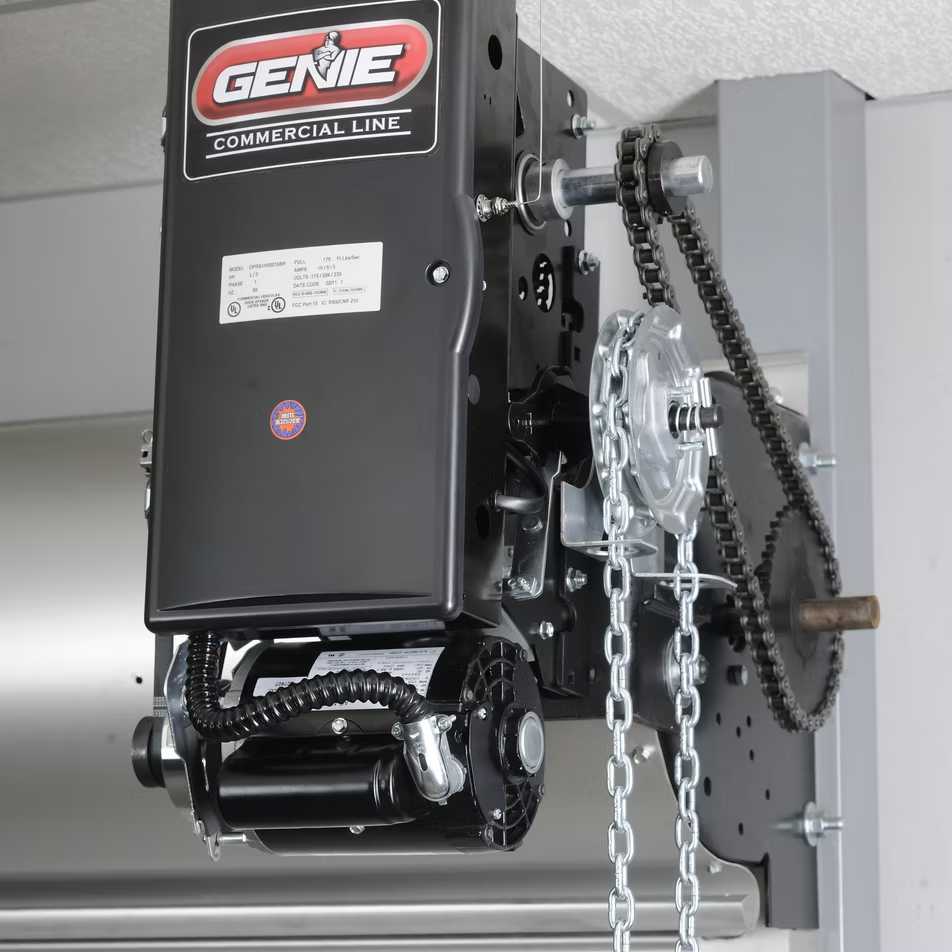

| Display | LCD with intuitive setup menu — current status and troubleshooting assistance |
| Internal Receiver | Intellicode® — add/delete up to 50 transmitters individually from the LCD display |
| Expansion | Modular design — optional expansion boards for timer-to-close and auxiliary output functionality |
| Emergency Operation | |
| Emergency Hoist | Manual emergency hoist — available in right-hand or left-hand configuration |
The GCL-H combines advanced control technology with a robust mechanical design purpose-built for high-lift and full-lift door applications. Here is what sets it apart from standard commercial hoist operators.
The GCL-H is the correct specification when the door is high-lift or full-lift — where a trolley operator cannot be used — and duty requirements fall at or below 30 cycles per hour.
DOORTEC installs the Genie GCL-H throughout Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and the Tulsa metro. Our commercial technicians handle every step from site assessment through commissioning.
Service Coverage: Oklahoma City · Edmond · Norman · Moore · Yukon · Midwest City · Guthrie · El Reno · Tulsa. Free estimates on all new commercial operator installations. Call (405) 720-7107 or contact DOORTEC online.
The Genie GCL-H is DOORTEC’s standard-duty hoist operator specification for Oklahoma City facilities with high-lift or full-lift doors where a ceiling-mounted trolley operator is not an option. MultiVolt® field-selectable voltage, EZ Limit® push-to-set limits, and the maintenance-free TensiBelt® primary drive make the GCL-H a straightforward installation throughout the OKC metro.
DOORTEC installs the Genie GCL-H at warehouses, distribution centers, manufacturing facilities, and commercial service operations throughout Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, and El Reno. Free site assessment and no-obligation quote on all new commercial operator installations — call (405) 720-7107 to get started.
DOORTEC’s Tulsa commercial team installs and services the Genie GCL-H hoist operator throughout the Tulsa metro area. Tulsa’s substantial industrial and warehouse base — including the Port of Catoosa corridor, the Tulsa industrial district, and the growing logistics infrastructure across the metro — includes a significant number of high-lift and full-lift door applications where the GCL-H is the correct specification.
For Tulsa facilities comparing hoist operator options, DOORTEC’s commercial team will assess your door configuration, duty requirements, and available power — and recommend the right operator before any purchase decision. Contact us at (405) 720-7107 for Tulsa commercial operator service.
