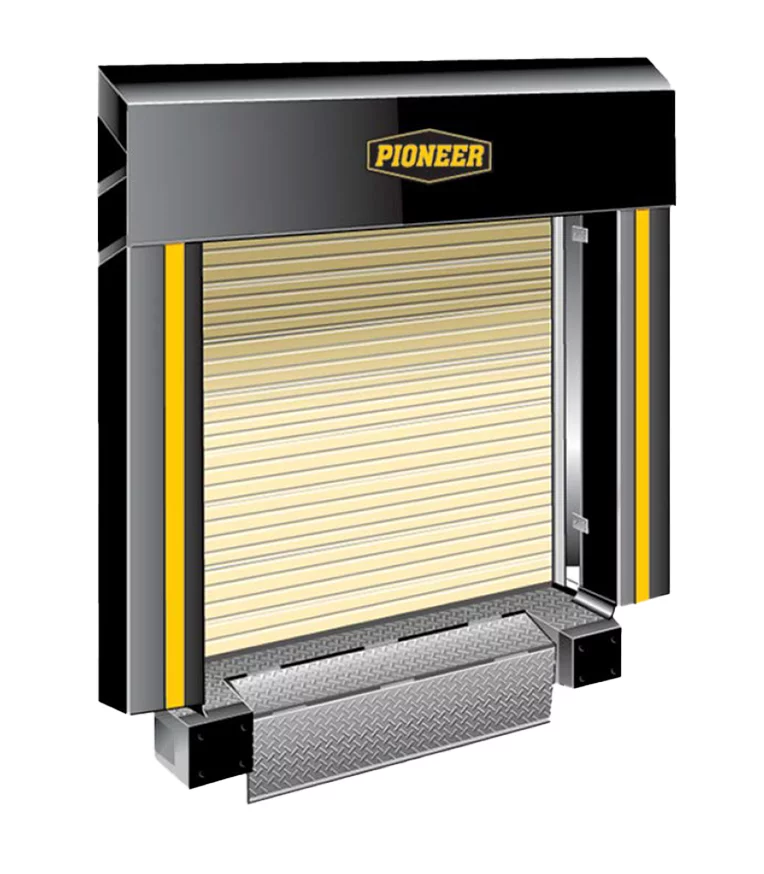

Name: PF Series Head Curtain Dock Seal
Brand: Pioneer Dock Equipment
Availability: InStock

Why the PF Series

Three reasons facilities managers
specify this Pioneer product

DOORTEC installs the complete Pioneer dock equipment lineup throughout Oklahoma City, Tulsa, and the OKC metro.

Non-Sagging Head Curtain

¾” galvanized pipe provides rigid front edge support to prevent curtain sag — the common failure mode of head curtain seals that use flexible front edges. Consistent sealing contact across the full width of the opening.

4” Foam for Compression Sealing

Hybrid design — 4” foam layer on the curtain provides compression sealing where the curtain contacts the trailer. Effective sealing performance combined with the access flexibility of curtain design.

Oversize Door Specification

Most effective for doors of oversize height where a standard head pad may not reach or may not seal effectively on very tall door openings. The correct specification when head pad geometry is the limiting constraint.

All specification data sourced from Pioneer Dock Equipment official documentation. Contact DOORTEC at (405) 720-7107 for sizing, capacity, and application guidance.

¾” Galvanized Pipe Front Edge

¾” galvanized pipe provides rigid support to prevent curtain sag — non-sagging head curtain across the full opening width.

4” Foam Compression Layer

Hybrid design — 4” foam layer on curtain provides compression sealing. Optional extra fabric cover over foam layer available.

Non-Sagging Curtain Design

Pipe-supported front edge eliminates the sag that degrades sealing performance on flexible-edge head curtains over time.

Optional Rope Pull-Up

Optional rope pull-up for head curtain operation — allows curtain to be raised for maintenance access or oversized loads.

Metal Hood Recommended

Metal hoods strongly recommended with PF Series — overhead protection for the curtain assembly from weather above the door opening.

Highest-Grade Materials

100% lock-stitched seams throughout. Highest-grade materials available on all PF Series models.

All specifications sourced from Pioneer Dock Equipment official documentation. Contact DOORTEC at (405) 720-7107 for sizing and model selection guidance.

Construction
Type	Non-sagging head curtain — replaces standard foam head pad
Front Edge	¾” galvanized pipe — rigid support, prevents curtain sag
Foam Layer	4” foam layer on curtain — compression sealing on contact
Extra Cover	Extra fabric cover over foam layer — optional
Seams	100% lock-stitched — highest-grade materials available
Options
Rope Pull-Up	Optional — allows head curtain to be raised for maintenance or tall loads
Metal Hood	Strongly recommended — overhead protection for curtain assembly
Custom Design	Available for special sealing needs
Application
Best For	Doors of oversize height where standard head pad does not reach or seal effectively
Warranty
Coverage	1 year — defects in materials and workmanship
Claims	Pioneer covers materials, labor, and freight

Specifications sourced from Pioneer Dock Equipment official documentation. Contact DOORTEC for site-specific sizing and configuration details.

Every PF Series installation through DOORTEC is backed by Pioneer’s manufacturer warranty plus DOORTEC’s own workmanship guarantee — applied on top, at no additional cost.

1 yr

Pioneer Manufacturer Warranty

1 year — defects in materials and workmanship
Pioneer covers materials, labor, and freight on claims
DOORTEC workmanship guarantee stacks on top

DOORTEC Guarantee

Workmanship Guarantee

Any installation issue corrected at no charge
Stacks on top of Pioneer manufacturer coverage
Factory-trained, Pioneer-certified technicians

DOORTEC’s commercial team handles every step — from initial site measurement through final commissioning. We serve Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and the Tulsa metro.

Free Site Assessment

We assess your dock opening, existing equipment, dimensions, and operational requirements — at no charge, before any purchase commitment. DOORTEC recommends the right Pioneer model for your specific application.

Specification & Quote

Based on the site assessment, we provide a clear specification and no-obligation quote. All Pioneer options and configurations reviewed — no surprises after installation.

Professional Installation

Factory-trained technicians install to Pioneer specifications. All hardware, mounting, and commissioning included — DOORTEC handles the complete installation from start to finish.

Commissioning & Sign-Off

We verify performance before sign-off. No job is complete until the equipment performs correctly at your specific dock. DOORTEC workmanship guarantee covers any issue that arises after installation.

Service Coverage

Oklahoma CityEdmondNormanMooreYukonMidwest CityGuthrieEl RenoTulsa

Start the conversation

Get a free
PF Series quote

Tell us about your dock and we’ll assess it, specify the right model, and provide a no-obligation quote — usually within one business day. No commitment required to get started.

(405) 720-7107Mon–Fri 8am–5pm · Sat 8am–Noon

OKC & Tulsa MetroFree on-site assessment — we come to you

No obligation, ever. We’ll assess your dock, specify the right equipment, and give you a clear quote. You decide if and when to move forward. No high-pressure sales.

Request Your Free Quote

We’ll respond within one business day

PF Series Head Curtain Seal in Oklahoma City

The Pioneer PF Series head curtain dock seal is DOORTEC’s specification for Oklahoma City facilities with oversize door heights where a standard foam head pad does not reach or cannot seal effectively. The galvanized pipe front edge and 4” foam compression layer provide non-sagging performance and effective sealing at the top of the opening. DOORTEC installs throughout the OKC metro and Tulsa.

Call (405) 720-7107 to discuss your dock

Head Curtain Dock Seals Tulsa & OKC

DOORTEC installs the Pioneer dock seal lineup — including P Series, PF Series, PA Series, L Pad Series, and Dura Seal — throughout Oklahoma City and Tulsa. For facilities with oversize door heights or seal geometry challenges, contact DOORTEC for a free site assessment and model recommendation.
