Dock Seals
& Shelters

DOORTEC installs and services the complete Pioneer dock seal and shelter lineup for Oklahoma City, Tulsa, and the entire OKC metro. From standard foam pad seals to rigid frame shelters and the premium Dura Seal — we specify the right solution for your opening dimensions, truck height range, and energy efficiency requirements.

OKC  (405) 720-7107 Tulsa  (918) 366-7832 Get a Free Quote
Pioneer · Dock Seals

Dock Seals

Dock seals create a weather-tight closure between the trailer and the building — the highest energy efficiency of any dock closure type, compressing against the rear of the trailer on three sides. Pioneer seals use only the highest grade materials available, with 100% lock-stitched seams and fabric weight protection up to 50 oz. All Pioneer dock seals carry a 1-year warranty against defects in materials and workmanship, with Pioneer accepting full responsibility for materials, labor, and freight on any warranty claim.

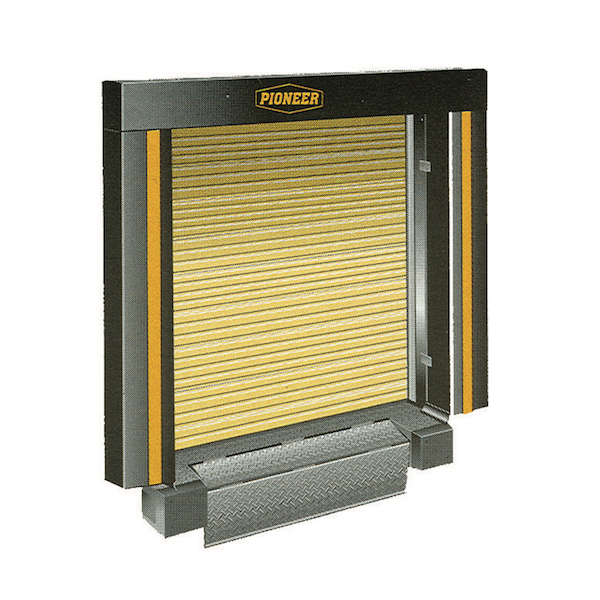

Dock Seal Pioneer P Series dock seal
P Series
Polyurethane Foam Dock Seal
The standard Pioneer foam pad dock seal. Weather-tight closure on three sides — maximum energy savings. 100% lock-stitched seams, double-stitched on wear shingle models. Fabric weight protection from 40 oz. to 140 oz. All models use the highest grade materials available.
Foam Pad Seal40–140 oz. Fabric100% Lock-StitchedWeather-Tight
View P Series
Dock Seal Pioneer PF Series dock seal
PF Series
Head Curtain Dock Seal
Head curtain replaces the head pad — non-sagging design using ¾" galvanized pipe for front edge support. Hybrid construction with 4" foam layer on curtain plus extra fabric cover (optional). Most effective for oversized-height doors. Optional rope pull-up.
Head Curtain¾" Galvanized PipeOversize DoorHybrid Foam+Fabric
View PF Series

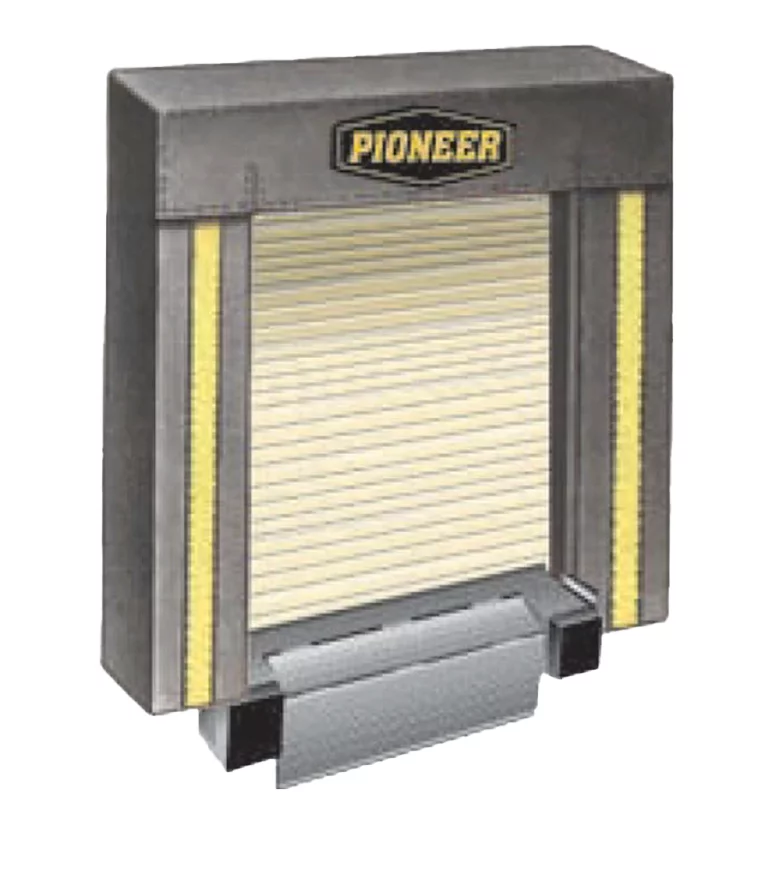

Dock Seal Pioneer L Pad Series dock seal
L Pad Series
L-Pad Dock Seal
Allows greater access to the rear of the trailer while the side pads provide shelter-like wiper action and still seal the trailer sides. The L-Pad design is the right choice when rear trailer access is a priority but side sealing is still required.
L-Pad DesignWiper-Action SidesRear AccessSide Sealing
View L Pad Series
Dock Seal Pioneer PA Series dock seal
PA Series
Adjustable Head Pad Dock Seal
Full 18" of head pad vertical movement to service a wide range of truck heights. Full-range manual adjustment with center pull-down strap. Single weighted counterbalanced adjustment. Metal hoods recommended with this model.
18" Vertical Adj.CounterbalancedWide Truck RangeMetal Hood Rec.
View PA Series
Premium Seal Pioneer Dura Seal dock seal
Dura Seal
Extended Warranty Premium Dock Seal
Pioneer's premium dock seal — 50 oz. LTA high-tear vinyl base material, 20" wide PX420 wear pleats on head pad corners, PX420 inside wear face on the bottom 48" of each side pad. Head curtain style available. 3-year warranty.
50 oz. LTA VinylPX420 Wear Pleats48" Wear Face3-Year Warranty
View Dura Seal
Pioneer · Dock Shelters

Dock Shelters

Dock shelters provide partial enclosure around the trailer opening — allowing full access to the rear of the truck while protecting the dock opening from weather. Shelters are the right choice when seals cannot be used due to trailer size variability or when full rear access is required. Pioneer's R Series rigid frame and F Series flexible shelters cover automatic variable truck height from 11' to 13'6".

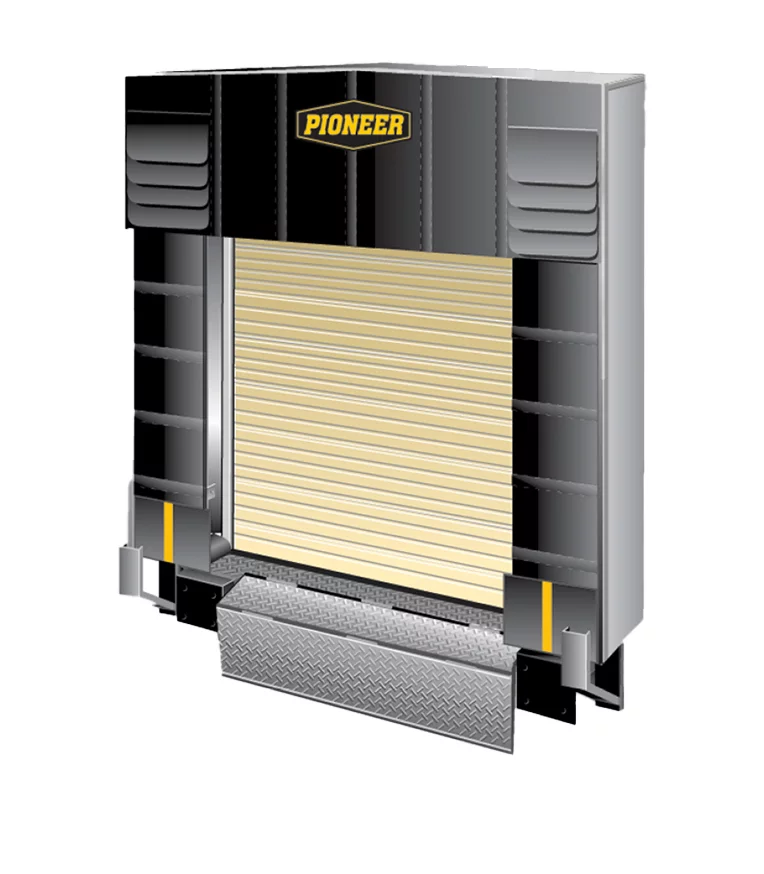

Dock Shelter Pioneer R Series dock seal
R Series
Rigid Frame Truck Shelter
Rigid wood frame construction with raked-cut header on all models to prevent water from standing on top. Side and top curtain wiper action allows full access to rear of truck. Automatic variable truck height coverage from 11' to 13'6". Heavy-duty structural channel bumpers for protection and support.
Rigid Wood Frame11'–13'6" Auto CoverageWiper CurtainsStructural Bumpers
View R Series
Dock Shelter Pioneer F Series dock seal
F Series
Flexible Truck Shelter
Choose from four flexible models, all spring-loaded for snug fit to trailer. Corrosion-resistant steel framing throughout. Reinforced wear area for lasting durability. Metal hoods recommended. Face curtains include scotch ply fiberglass stays and yellow guide stripes.
Flexible FrameSpring-LoadedCorrosion-Resistant4 Models Available
View F Series

Available Options & Accessories

All options available on applicable Pioneer seal and shelter models — specify at time of order

Galvanized Metal Hood
Overhead protection for seals and flexible shelters — protects the seal assembly from direct weather exposure above the door opening
Common Member Units
Seals or rigid shelters for dock doors closer than standard spacing — allows efficient installation on tight multi-door configurations
Larger Head Pad Height
For high doors and a broader range of truck heights — extends the vertical sealing range above the standard head pad coverage
Blockouts
Extra protection when full projection foam is not desirable — allows the seal to accommodate door hardware and other projections at the dock face
Tapered Units
For inclined or declined truck approaches — tapered foam profile accommodates dock approaches that are not level with the trailer floor
Wear Shingles
Add years of extra life to dock seals — overlapping wear shingles on the contact face protect the foam backing from direct abrasion by trailer sides
Standard Warranty
1 Year
All Pioneer dock seals and shelters are guaranteed against defects in materials and workmanship for 1 year. Pioneer covers materials, labor, and freight on all warranty claims.
Dura Seal Warranty
3 Years
The premium Dura Seal carries a 3-year warranty — three times the standard coverage — reflecting Pioneer's confidence in the 50 oz. LTA vinyl and PX420 wear pleat construction.
DOORTEC Install
Workmanship Guarantee
DOORTEC provides a workmanship guarantee on every dock seal and shelter installation — any installation issue corrected at no charge. Call (405) 720-7107.

Dock Seals & Shelters in Oklahoma City

DOORTEC is Oklahoma City's authorized Pioneer dock seal and shelter dealer — serving warehouses, distribution centers, cold storage facilities, and commercial construction projects throughout the OKC metro. Whether you're equipping a new loading dock, replacing worn seals on an existing facility, or upgrading to the Dura Seal for maximum longevity, DOORTEC's commercial team will assess your door opening dimensions, typical truck height range, and application requirements to specify the right Pioneer model.

The choice between a dock seal and a dock shelter comes down to application priorities. Seals provide maximum energy efficiency — a weather-tight closure compressing against the trailer on three sides — but require trailers to be parked at consistent positions and heights. Shelters provide more flexibility for varying trailer sizes and allow full access to the rear of the truck, at the cost of some energy efficiency at the perimeter. DOORTEC can assess your trailer fleet and dock operation to recommend the right type. Call (405) 720-7107 for a free commercial dock assessment.

Pioneer Dock Seals Tulsa & OKC

DOORTEC's Tulsa location at 1835 N 106th E Ave serves the greater Tulsa metro with the complete Pioneer dock seal and shelter line. Tulsa's substantial warehouse, distribution, and cold storage infrastructure creates consistent demand for loading dock seals and shelters — both for new construction and for replacement of aging dock enclosures where worn seals are contributing to energy loss, pest infiltration, and weather damage at the dock face.

For Tulsa and Oklahoma City cold storage and temperature-controlled facilities, dock seals are typically the correct specification over shelters — the weather-tight closure is essential for maintaining temperature control at dock openings. DOORTEC's commercial team can work with your facility manager, general contractor, or architect to specify Pioneer dock seals as part of a complete dock system design. Contact DOORTEC at (405) 720-7107 or online at doortec.com.
