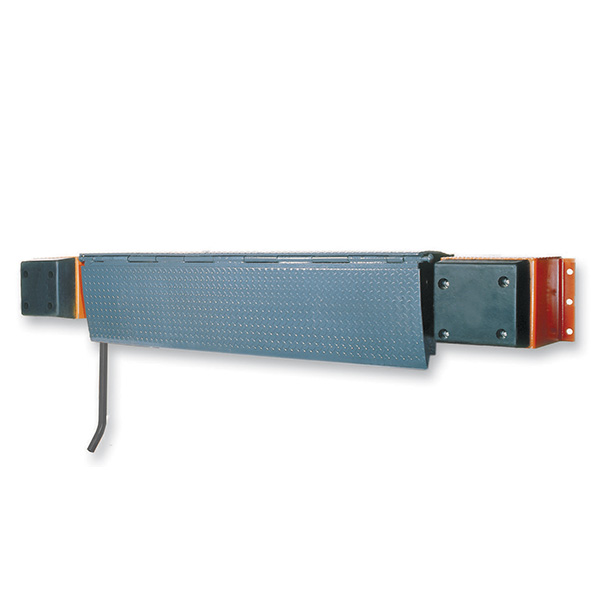

Name: BL BarLift Edge of Dock Leveler
Brand: Pioneer Dock Equipment
Availability: InStock

Why the BL BarLift

Three reasons facilities managers
specify this Pioneer product

DOORTEC installs the complete Pioneer dock equipment lineup throughout Oklahoma City, Tulsa, and the OKC metro.

No Pit — Mount to the Dock Face

No concrete saw cutting, no pit forming, no excavation. The BL BarLift mounts directly to the dock face — a fraction of the installation time and cost of a pit leveler, with a valid working range for standard truck height variances.

Torsion Spring Design

The BL uses a torsion spring design that allows simple, precise field adjustment — a distinct operational advantage over the extension spring designs used in competitive edge-of-dock products. Adjustment is fast and doesn’t require special tools.

Automatic Return to Stored

When the truck departs, the BarLift automatically returns to its stored position. No operator step required between trucks. Reduces dock cycle time and keeps the leveler out of traffic.

All specification data sourced from Pioneer Dock Equipment official documentation. Contact DOORTEC at (405) 720-7107 for sizing, capacity, and application guidance.

No Pit Required

Mounts to the dock face — no pit, no concrete cutting, no excavation. Optional self-forming pan available for recessed installation without pit forming.

Torsion Spring Design

Unique torsion spring design allows simple, precise adjustment. Spring-assisted single-person operation — leveler raises and extends onto truck bed.

Bar Handle Lever Activation

Bar handle lever — ergonomic, reliable, and requires no electrical connection.

Automatic Return to Stored

Automatically returns to stored position upon truck departure. No operator step between trucks.

Grease Fittings Standard

Grease fittings on continuous lip hinge standard with every unit — extends service life at the highest-wear pivot point.

Formed Plate Steel Bumpers

Formed plate steel bump blocks and molded rubber bumpers protect dock face and leveler from truck impact damage.

All specifications sourced from Pioneer Dock Equipment official documentation. Contact DOORTEC at (405) 720-7107 for sizing and model selection guidance.

Construction
Bumpers	Formed plate steel bump blocks and molded rubber bumpers — protect dock face and leveler from truck damage
Hinge	Grease fittings on continuous lip hinge — standard
Lip Projection	Minimum 12¾” lip projection
Specifications
Working Range	5” above and 5” below dock level
Span	27¾” — dock to truck bed
Width Options	66” · 72” · 78” · 84”
Activation	Bar handle lever activation
Spring	Torsion spring design — allows simple, precise adjustment
Operation	Spring-assisted single-person operation
Return	Automatically returns to stored position upon truck departure
Installation
Pit	No — mounts to dock face
Optional	Self-forming pan for recessed installation without concrete pit forming
Warranty
Manufacturer	2 years
Materials / Labor / Freight	1 year on claims

Specifications sourced from Pioneer Dock Equipment official documentation. Contact DOORTEC for site-specific sizing and configuration details.

Every BL BarLift installation through DOORTEC is backed by Pioneer’s manufacturer warranty plus DOORTEC’s own workmanship guarantee — applied on top, at no additional cost.

2 yrs

Pioneer Manufacturer Warranty

2 years — Pioneer manufacturer warranty
1 year — materials, labor, and freight on claims
DOORTEC workmanship guarantee stacks on top

DOORTEC Guarantee

Workmanship Guarantee

Any installation issue corrected at no charge
Stacks on top of Pioneer manufacturer coverage
Factory-trained, Pioneer-certified technicians

DOORTEC’s commercial team handles every step — from initial site measurement through final commissioning. We serve Oklahoma City, Edmond, Norman, Moore, Yukon, Midwest City, Guthrie, El Reno, and the Tulsa metro.

Free Site Assessment

We assess your dock opening, existing equipment, dimensions, and operational requirements — at no charge, before any purchase commitment. DOORTEC recommends the right Pioneer model for your specific application.

Specification & Quote

Based on the site assessment, we provide a clear specification and no-obligation quote. All Pioneer options and configurations reviewed — no surprises after installation.

Professional Installation

Factory-trained technicians install to Pioneer specifications. All hardware, mounting, and commissioning included — DOORTEC handles the complete installation from start to finish.

Commissioning & Sign-Off

We verify performance before sign-off. No job is complete until the equipment performs correctly at your specific dock. DOORTEC workmanship guarantee covers any issue that arises after installation.

Service Coverage

Oklahoma CityEdmondNormanMooreYukonMidwest CityGuthrieEl RenoTulsa

Start the conversation

Get a free
BL BarLift quote

Tell us about your dock and we’ll assess it, specify the right model, and provide a no-obligation quote — usually within one business day. No commitment required to get started.

(405) 720-7107Mon–Fri 8am–5pm · Sat 8am–Noon

OKC & Tulsa MetroFree on-site assessment — we come to you

No obligation, ever. We’ll assess your dock, specify the right equipment, and give you a clear quote. You decide if and when to move forward. No high-pressure sales.

Request Your Free Quote

We’ll respond within one business day

BL BarLift Edge of Dock in Oklahoma City

The Pioneer BL BarLift is DOORTEC’s standard edge-of-dock leveler for Oklahoma City facilities where a pit leveler is not required or not feasible. No pit cutting, no excavation — mounts directly to the dock face for a fraction of the installed cost of a pit leveler. The torsion spring design provides simple field adjustment and single-person operation. DOORTEC installs throughout the OKC metro and Tulsa.

Call (405) 720-7107 to discuss your dock

Edge of Dock Levelers Tulsa & OKC

DOORTEC installs Pioneer edge-of-dock levelers throughout Oklahoma City and Tulsa. For facilities evaluating edge-of-dock vs. pit leveler options, the BL BarLift is the right answer when dock height variance is within ±5” and pit installation is not practical or budgeted. Contact DOORTEC for a free site assessment.
